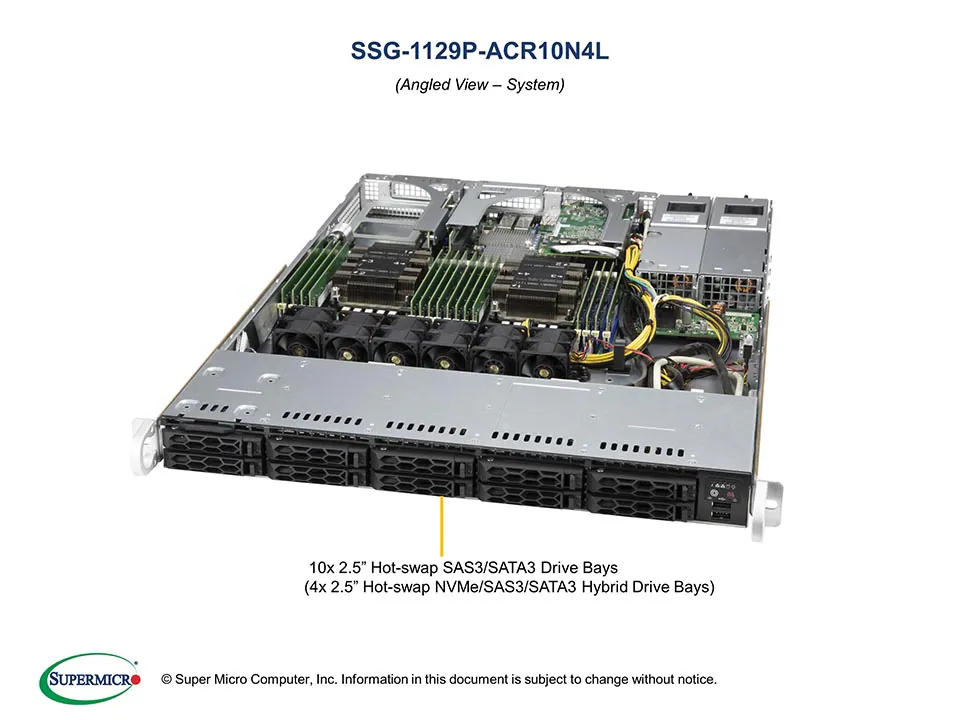

SuperStorage 1129P-ACR10N4L
Арт. SSG-1129P-ACR10N4L
Нашли дешевле?
| Motherboard | Super X11DPD-M25; Super X11DPD-M25; Super X11DPD-M25; Super X11DPD-M25 |
| Processor - CPU | Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s Support CPU TDP up to 205W * |
| Processor - Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). |
| System Memory - Memory Capacity | 16 DIMM slots Up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM Supports Intel® Optane™ DCPMM †† |
| System Memory - Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| On-Board Devices - Chipset | Intel® C621 chipset |
| On-Board Devices - SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| On-Board Devices - IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| On-Board Devices - Network Controllers | Mellanox CONNECTX-4 LX EN 25GbE |
| On-Board Devices - Video | ASPEED AST2500 BMC |
| Input Output - LAN | 2x 25G SFP28 LAN ports 1 RJ45 Dedicated IPMI LAN port |
| Input Output - USB | 2 USB 2.0 ports (front via header) 2 USB 3.0 ports (rear) |
| Input Output - Video | 1 VGA port |
| PC Health Monitoring - FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring - Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis - Form Factor | 1U Rackmount |
| Chassis - Model | CSE-LB16TS-R804AMP |
| Dimensions and Weight - Height | 1.7" (43mm) |
| Dimensions and Weight - Width | 17.2" (437mm) |
| Dimensions and Weight - Depth | 23.5" (597mm) |
| Dimensions and Weight - Weight | Gross Weight: 34 lbs (15.6 kg) Net Weight: 23.5 lbs (10.6 kg) |
| Dimensions and Weight - Available Colors | Black |
| Front Panel - Buttons | Power On/Off button UID button |
| Front Panel - LEDs | Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED |
| Expansion Slots - PCI-Express | 1 PCI-E 3.0 x16 (HBA Add-on-Module) 1 PCI-E 3.0 x16 Left riser slot 1 PCI-E 3.0 x8 Right riser slot 1 PCI-E 3.0 x16 (AIOM) |
| Drive Bays - Hot-swap | 10 Hot-swap 2.5" SAS3/SATA3 HDD bays (4 NVMe/SAS3/SATA3 hybrid ports) |
| Backplane | NVMe/SAS/SATA Backplane; NVMe/SAS/SATA Backplane; NVMe/SAS/SATA Backplane; NVMe/SAS/SATA Backplane |
| System Cooling - Fans | 6x 40x56mm counter-rotation PWM fans |
| System BIOS - BIOS Type | AMI 32Mb SPI Flash ROM |
| Parts List - Items Included | Part Number; Description; Motherboard / Chassis; MBD-X11DPD-M25 CSE-LB16TS-R804AMP; Super X11DPD-M25 Motherboard Incomplete CSE-LB16TS-R804ASP chassis, RoHS/REACH,PBF; Add-on Card / Module; AOM-S3216-DPD-L-P; DPD MB, SAS 3216 I/O Controller,HF,RoHS; Backplane; BPN-SAS3-LB16A-N10; 1U 10-Slot SFF Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors, co-lay with BPN-SAS3-LB16A-N4,HF,RoHS; Cable 1; CBL-PWCD-0174-IS; PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACH; Cable 2; CBL-PWEX-1077; [NR] PWR EXT,2X4F to 2x6, 25CM,18AWG, 8.5A/pin; Cable 3; CBL-SAST-0901; [NR] 2x Slimline x8 (STR) to 2x Slimline x8 (STR),INT,49CM,8; Cable 4; CBL-SAST-0902; [NR] 2x Slimline x8 (STR) to 3x Slimline x4 (STR),INT,66CM,8; Riser Card; RSC-AOM-X6; Bridge board for AOM 3224/3216,HF,RoHS; Riser Card; RSC-PR-6-X2; 1U RHS TwinPro Riser card with one PCI-E 4.0 x16 slot,HF,RoH; Riser Card; RSC-X-6G4; 1U LHS Storage riser card with one PCI-E 4.0 x16 slot,HF,RoH; Heatsink / Retention; SNK-P0067PS; 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; * Power Supply; PWS-804P-1R; 1U 800W 100-240VAC/50-60Hz, and DC240V input; * Power Distributor; PDB-PTLB16-8814; 1U support redundanct powers up to 1200W power distributor; * Cable 5; CBL-0335L; FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF; * FAN 1; FAN-0141L4; 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan; * Front Panel; FPB-FP116; Front control board for SC116 (USB 2.0 x 2); * Front Panel; FPB-TMP-004; Thermal Sensor board with 80cm I2C cable; * Drive Tray(s); MCP-220-00188-0B; Black gen-5.5 tool-less cost-effective 2.5\" HDD tray (no dummy); * Rear Window; MCP-240-11603-0N; 1U rear window for CSE-LB16 AM, Redundant PWS; * Rail Set; MCP-290-00063-0N; Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH; * Fan Holder; MCP-320-00027-0B; Plastic pin for 40x28, 40x56 fan; * Fan Holder; MCP-320-00028-0B; Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116; Part Number; Description; Motherboard / Chassis; MBD-X11DPD-M25 CSE-LB16TS-R804AMP; Super X11DPD-M25 Motherboard Incomplete CSE-LB16TS-R804ASP chassis, RoHS/REACH,PBF; Add-on Card / Module; AOM-S3216-DPD-L-P; DPD MB, SAS 3216 I/O Controller,HF,RoHS; Backplane; BPN-SAS3-LB16A-N10; 1U 10-Slot SFF Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors, co-lay with BPN-SAS3-LB16A-N4,HF,RoHS; Cable 1; CBL-PWCD-0174-IS; PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACH; Cable 2; CBL-PWEX-1077; [NR] PWR EXT,2X4F to 2x6, 25CM,18AWG, 8.5A/pin; Cable 3; CBL-SAST-0901; [NR] 2x Slimline x8 (STR) to 2x Slimline x8 (STR),INT,49CM,8; Cable 4; CBL-SAST-0902; [NR] 2x Slimline x8 (STR) to 3x Slimline x4 (STR),INT,66CM,8; Riser Card; RSC-AOM-X6; Bridge board for AOM 3224/3216,HF,RoHS; Riser Card; RSC-PR-6-X2; 1U RHS TwinPro Riser card with one PCI-E 4.0 x16 slot,HF,RoH; Riser Card; RSC-X-6G4; 1U LHS Storage riser card with one PCI-E 4.0 x16 slot,HF,RoH; Heatsink / Retention; SNK-P0067PS; 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; * Power Supply; PWS-804P-1R; 1U 800W 100-240VAC/50-60Hz, and DC240V input; * Power Distributor; PDB-PTLB16-8814; 1U support redundanct powers up to 1200W power distributor; * Cable 5; CBL-0335L; FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF; * FAN 1; FAN-0141L4; 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan; * Front Panel; FPB-FP116; Front control board for SC116 (USB 2.0 x 2); * Front Panel; FPB-TMP-004; Thermal Sensor board with 80cm I2C cable; * Drive Tray(s); MCP-220-00188-0B; Black gen-5.5 tool-less cost-effective 2.5\" HDD tray (no dummy); * Rear Window; MCP-240-11603-0N; 1U rear window for CSE-LB16 AM, Redundant PWS; * Rail Set; MCP-290-00063-0N; Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH; * Fan Holder; MCP-320-00027-0B; Plastic pin for 40x28, 40x56 fan; * Fan Holder; MCP-320-00028-0B; Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116; Part Number; Description; Motherboard / Chassis; MBD-X11DPD-M25 CSE-LB16TS-R804AMP; Super X11DPD-M25 Motherboard Incomplete CSE-LB16TS-R804ASP chassis, RoHS/REACH,PBF; Add-on Card / Module; AOM-S3216-DPD-L-P; DPD MB, SAS 3216 I/O Controller,HF,RoHS; Backplane; BPN-SAS3-LB16A-N10; 1U 10-Slot SFF Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors, co-lay with BPN-SAS3-LB16A-N4,HF,RoHS; Cable 1; CBL-PWCD-0174-IS; PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACH; Cable 2; CBL-PWEX-1077; [NR] PWR EXT,2X4F to 2x6, 25CM,18AWG, 8.5A/pin; Cable 3; CBL-SAST-0901; [NR] 2x Slimline x8 (STR) to 2x Slimline x8 (STR),INT,49CM,8; Cable 4; CBL-SAST-0902; [NR] 2x Slimline x8 (STR) to 3x Slimline x4 (STR),INT,66CM,8; Riser Card; RSC-AOM-X6; Bridge board for AOM 3224/3216,HF,RoHS; Riser Card; RSC-PR-6-X2; 1U RHS TwinPro Riser card with one PCI-E 4.0 x16 slot,HF,RoH; Riser Card; RSC-X-6G4; 1U LHS Storage riser card with one PCI-E 4.0 x16 slot,HF,RoH; Heatsink / Retention; SNK-P0067PS; 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; * Power Supply; PWS-804P-1R; 1U 800W 100-240VAC/50-60Hz, and DC240V input; * Power Distributor; PDB-PTLB16-8814; 1U support redundanct powers up to 1200W power distributor; * Cable 5; CBL-0335L; FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF; * FAN 1; FAN-0141L4; 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan; * Front Panel; FPB-FP116; Front control board for SC116 (USB 2.0 x 2); * Front Panel; FPB-TMP-004; Thermal Sensor board with 80cm I2C cable; * Drive Tray(s); MCP-220-00188-0B; Black gen-5.5 tool-less cost-effective 2.5\" HDD tray (no dummy); * Rear Window; MCP-240-11603-0N; 1U rear window for CSE-LB16 AM, Redundant PWS; * Rail Set; MCP-290-00063-0N; Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH; * Fan Holder; MCP-320-00027-0B; Plastic pin for 40x28, 40x56 fan; * Fan Holder; MCP-320-00028-0B; Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116; Part Number; Description; Motherboard / Chassis; MBD-X11DPD-M25 CSE-LB16TS-R804AMP; Super X11DPD-M25 Motherboard Incomplete CSE-LB16TS-R804ASP chassis, RoHS/REACH,PBF; Add-on Card / Module; AOM-S3216-DPD-L-P; DPD MB, SAS 3216 I/O Controller,HF,RoHS; Backplane; BPN-SAS3-LB16A-N10; 1U 10-Slot SFF Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors, co-lay with BPN-SAS3-LB16A-N4,HF,RoHS; Cable 1; CBL-PWCD-0174-IS; PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACH; Cable 2; CBL-PWEX-1077; [NR] PWR EXT,2X4F to 2x6, 25CM,18AWG, 8.5A/pin; Cable 3; CBL-SAST-0901; [NR] 2x Slimline x8 (STR) to 2x Slimline x8 (STR),INT,49CM,8; Cable 4; CBL-SAST-0902; [NR] 2x Slimline x8 (STR) to 3x Slimline x4 (STR),INT,66CM,8; Riser Card; RSC-AOM-X6; Bridge board for AOM 3224/3216,HF,RoHS; Riser Card; RSC-PR-6-X2; 1U RHS TwinPro Riser card with one PCI-E 4.0 x16 slot,HF,RoH; Riser Card; RSC-X-6G4; 1U LHS Storage riser card with one PCI-E 4.0 x16 slot,HF,RoH; Heatsink / Retention; SNK-P0067PS; 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; * Power Supply; PWS-804P-1R; 1U 800W 100-240VAC/50-60Hz, and DC240V input; * Power Distributor; PDB-PTLB16-8814; 1U support redundanct powers up to 1200W power distributor; * Cable 5; CBL-0335L; FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF; * FAN 1; FAN-0141L4; 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan; * Front Panel; FPB-FP116; Front control board for SC116 (USB 2.0 x 2); * Front Panel; FPB-TMP-004; Thermal Sensor board with 80cm I2C cable; * Drive Tray(s); MCP-220-00188-0B; Black gen-5.5 tool-less cost-effective 2.5\" HDD tray (no dummy); * Rear Window; MCP-240-11603-0N; 1U rear window for CSE-LB16 AM, Redundant PWS; * Rail Set; MCP-290-00063-0N; Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH; * Fan Holder; MCP-320-00027-0B; Plastic pin for 40x28, 40x56 fan; * Fan Holder; MCP-320-00028-0B; Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116 |
| Optional Parts List | Part Number; Description; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license) |
| Management - Software | Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM , SPM , SUM SuperDoctor® 5 Watch Dog |
| Management - Power Configurations | ACPI / APM Power Management |
| Input Output - Others | TPM 2.0 Header, 1 Micro USB (COM Port) |
| PC Health Monitoring - CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| Processor - Cores | Up to 28 Cores |
| System Memory - Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. |
| Operating Environment - RoHS | RoHS Compliant |
| Operating Environment - Environmental Spec | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs - SSG-1129P-ACR10N4L | SuperStorage 1129P-ACR10N4L ( Black ) |
| Power Supplies | 800W Redundant Power Supplies with PMBus; 800W Redundant Power Supplies with PMBus; 800W Redundant Power Supplies with PMBus; 800W Redundant Power Supplies with PMBus |
| Power Supplies - Total Output Power | 750W with Input 100 - 127Vac 800W with Input 200 - 240Vac 800W with Input 230 - 240Vdc |
| Power Supplies - DimensionW x H x L | 54.5 x 40.25 x 220 mm |
| Power Supplies - Input | 100 - 127Vac / 50-60Hz 200 - 240Vac / 50-60Hz 230 - 240Vdc / 50-60Hz |
| Power Supplies - 12V | Max: 62.5A & Min: 0.5A (100Vac-127Vac) Max: 66.6A & Min: 0.5A (200Vac-240Vac) Max: 66.6A & Min: 0.5A (230-240Vdc) |
| Power Supplies - 5V sb | Max: 4A / Min: 0A |
| Power Supplies - Output Type | Gold Finger Connector Mating with Molex 45984-4343 |
| Power Supplies - Certification | Platinum Certified [ Test Report ] |
