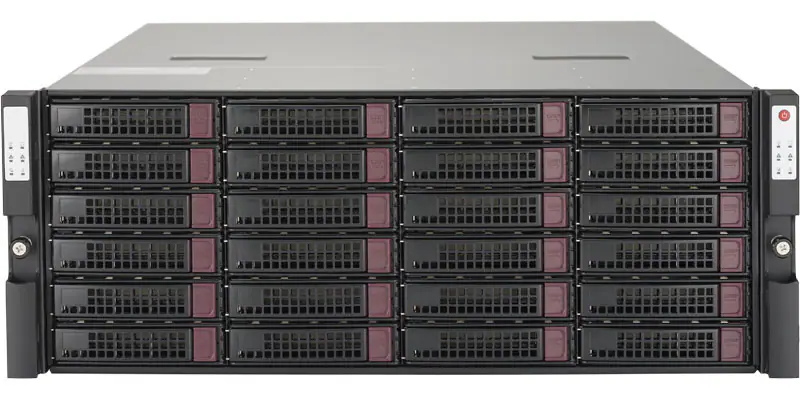

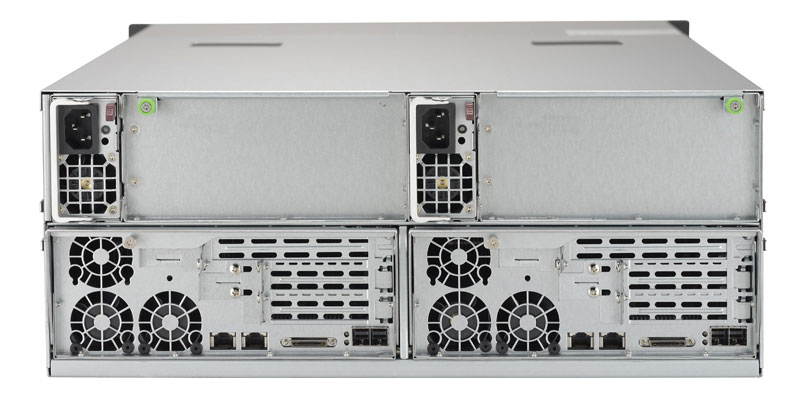

SuperStorage 6048R-E1CR24L
Арт. SSG-6048R-DE2CR24L
Продается и поддерживается только в составе готовой системы
Нашли дешевле?
| Chassis - Form Factor | 4U Rackmount |
| Chassis - Model | CSE-947ETS-R0NDBP |
| Front Panel - Buttons | Power On/Off button |
| Front Panel - LEDs | Power LED Heartbeat LED 2 Network activity LEDs Power Fail LED Overheat/Fan Fail LED |
| Drive Bays - Hot-swap | 24x 3.5" Hot-swap SAS drive bays with SES2 |
| Backplane | SAS3 12Gbps passive backplane, redundant architecture with single expander on each motherboard. Motherboard also support 2x mini-SAS HD connectors for JBOD expansion; SAS3 12Gbps passive backplane, redundant architecture with single expander on each motherboard. Motherboard also support 2x mini-SAS HD connectors for JBOD expansion; SAS3 12Gbps passive backplane, redundant architecture with single expander on each motherboard. Motherboard also support 2x mini-SAS HD connectors for JBOD expansion; SAS3 12Gbps passive backplane, redundant architecture with single expander on each motherboard. Motherboard also support 2x mini-SAS HD connectors for JBOD expansion |
| System Cooling - Fans | 4x 8cm and 4x 4cm PWM cooling fans Redundant cooling |
| System BIOS - BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Operating Environment Compliance - RoHS | RoHS Compliant |
| Operating Environment Compliance - Environmental Spec | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Parts List - Items Included | Part Number; Description; Motherboard / Chassis; MBD-X10DRS-4U CSE-947ETS-R0NDBP; Super X10DRS-4U Motherboard 4U Chassis; Add-on Card / Module; AOM-S3008-L8-SB-P; AOM-S3008-L8-SB; Backplane; BPN-SAS3-947; 24-port 4U SBB SAS3 12Gbps midplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD; LBL-0108; CAUTION LABEL FOR REDUNDANT PWR SYSTEMS; Riser Card; RSC-R2US-3E8R; RSC-R2US-3E8R-O-P; Heatsink / Retention; SNK-P0048PS; 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB; CBL-0218L; 11.5CM KVM/SUVI 36 PIN TO 9 PIN/15 PIN 2USB, 30/28AWG; CBL-PWCD-0160-IS; PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH; Air Shroud; MCP-310-94701-0N; Two set plastic air shroud for SC947; Drive Tray; MCP-220-93703-0B; SC937 SBB SATA/SAS HDD tray with Broadcom Interposer Bracket; Power Supply; PWS-1K68A-1R; 1600W Redundant Titanium Power Supply 76m width 27Pair,PBF; Part Number; Description; Motherboard / Chassis; MBD-X10DRS-4U CSE-947ETS-R0NDBP; Super X10DRS-4U Motherboard 4U Chassis; Add-on Card / Module; AOM-S3008-L8-SB-P; AOM-S3008-L8-SB; Backplane; BPN-SAS3-947; 24-port 4U SBB SAS3 12Gbps midplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD; LBL-0108; CAUTION LABEL FOR REDUNDANT PWR SYSTEMS; Riser Card; RSC-R2US-3E8R; RSC-R2US-3E8R-O-P; Heatsink / Retention; SNK-P0048PS; 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB; CBL-0218L; 11.5CM KVM/SUVI 36 PIN TO 9 PIN/15 PIN 2USB, 30/28AWG; CBL-PWCD-0160-IS; PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH; Air Shroud; MCP-310-94701-0N; Two set plastic air shroud for SC947; Drive Tray; MCP-220-93703-0B; SC937 SBB SATA/SAS HDD tray with Broadcom Interposer Bracket; Power Supply; PWS-1K68A-1R; 1600W Redundant Titanium Power Supply 76m width 27Pair,PBF; Part Number; Description; Motherboard / Chassis; MBD-X10DRS-4U CSE-947ETS-R0NDBP; Super X10DRS-4U Motherboard 4U Chassis; Add-on Card / Module; AOM-S3008-L8-SB-P; AOM-S3008-L8-SB; Backplane; BPN-SAS3-947; 24-port 4U SBB SAS3 12Gbps midplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD; LBL-0108; CAUTION LABEL FOR REDUNDANT PWR SYSTEMS; Riser Card; RSC-R2US-3E8R; RSC-R2US-3E8R-O-P; Heatsink / Retention; SNK-P0048PS; 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB; CBL-0218L; 11.5CM KVM/SUVI 36 PIN TO 9 PIN/15 PIN 2USB, 30/28AWG; CBL-PWCD-0160-IS; PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH; Air Shroud; MCP-310-94701-0N; Two set plastic air shroud for SC947; Drive Tray; MCP-220-93703-0B; SC937 SBB SATA/SAS HDD tray with Broadcom Interposer Bracket; Power Supply; PWS-1K68A-1R; 1600W Redundant Titanium Power Supply 76m width 27Pair,PBF; Part Number; Description; Motherboard / Chassis; MBD-X10DRS-4U CSE-947ETS-R0NDBP; Super X10DRS-4U Motherboard 4U Chassis; Add-on Card / Module; AOM-S3008-L8-SB-P; AOM-S3008-L8-SB; Backplane; BPN-SAS3-947; 24-port 4U SBB SAS3 12Gbps midplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD; LBL-0108; CAUTION LABEL FOR REDUNDANT PWR SYSTEMS; Riser Card; RSC-R2US-3E8R; RSC-R2US-3E8R-O-P; Heatsink / Retention; SNK-P0048PS; 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB; CBL-0218L; 11.5CM KVM/SUVI 36 PIN TO 9 PIN/15 PIN 2USB, 30/28AWG; CBL-PWCD-0160-IS; PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH; Air Shroud; MCP-310-94701-0N; Two set plastic air shroud for SC947; Drive Tray; MCP-220-93703-0B; SC937 SBB SATA/SAS HDD tray with Broadcom Interposer Bracket; Power Supply; PWS-1K68A-1R; 1600W Redundant Titanium Power Supply 76m width 27Pair,PBF |
| Optional Parts List | Part Number; Description; Converter Tray; MCP-220-93707-0B; Hot-swap 3.5" to 2.5" converter drive tray; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Part Number; Description; Converter Tray; MCP-220-93707-0B; Hot-swap 3.5" to 2.5" converter drive tray; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Part Number; Description; Converter Tray; MCP-220-93707-0B; Hot-swap 3.5" to 2.5" converter drive tray; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Part Number; Description; Converter Tray; MCP-220-93707-0B; Hot-swap 3.5" to 2.5" converter drive tray; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license) |
| System BIOS - BIOS Features | Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI |
| Power Supply 76mm Width | 1600W 1U Redundant Power Supplies with PMBus; 1600W 1U Redundant Power Supplies with PMBus; 1600W 1U Redundant Power Supplies with PMBus; 1600W 1U Redundant Power Supplies with PMBus |
| Power Supply 76mm Width - Total Output Power | 800W: 100 – 140Vac 1600W: 180 – 240Vac |
| Power Supply 76mm Width - DimensionW x H x L | 76 x 40.4 x 336 mm |
| Power Supply 76mm Width - Input | 100-140Vac / 10-7A / 50-60Hz 180-240Vac / 11-8A / 50-60Hz |
| Power Supply 76mm Width - 12V | Max: 67A / Min: 0A (100-140Vac) Max: 133A / Min: 0A (180-240Vac) |
| Power Supply 76mm Width - 5Vsb | Max: 1A / Min: 0A |
| Power Supply 76mm Width - Output Type | 27 Pairs Gold Finger Connector |
| Power Supply 76mm Width - Certification | Titanium Level [ Test Report ] |
| System Memory per Node - Memory Capacity | 8x 288-pin DDR4 DIMM slots Up to 1TB † ECC 3DS LRDIMM, 256GB ECC RDIMM |
| System Memory per Node - Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| Input Output per Node - LAN | 2 RJ45 10GBase-T LAN ports IPMI LAN shared port |
| Input Output per Node - USB | 3 USB 3.0 ports (2 rear + 1 Type A) |
| Expansion Slots per Node - PCI-Express | 3 PCI-E 3.0 x8 (1 FHHL, 2 LPHL) slots per controller |
| On-Board Devices per Node - Chipset | Intel® C612 chipset |
| On-Board Devices per Node - SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| On-Board Devices per Node - Network Controllers | Dual 10GBase-T LAN with Intel® X540 Ethernet Controller Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Realtek RTL8201N PHY (dedicated IPMI) |
| On-Board Devices per Node - IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| On-Board Devices per Node - Graphics | ASPEED AST2400 BMC |
| Input Output per Node - VGA | 1 VGA port |
| Input Output per Node - Serial Port Header | 1 COM port (rear) |
| On-Board Devices per Node - SAS | SAS3 (12Gbps) via Broadcom 3008 |
| Input Output per Node - SAS | 2 JBOD expansion ports per node (mini-SAS HD) |
| Motherboard Two per System | Super X10DRS-4U; Super X10DRS-4U; Super X10DRS-4U; Super X10DRS-4U |
| ProcessorCache per Node - CPU | Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011) |
| ProcessorCache per Node - Cores Cache | Up to 22 Cores † / Up to 55MB † Cache |
| ProcessorCache per Node - System Bus | QPI up to 9.6 GT/s |
| ProcessorCache per Node - Note | * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| System Memory per Node - DIMM Sizes | RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB |
| System Memory per Node - Memory Voltage | 1.2 V |
| System Memory per Node - Error Detection | Corrects single-bit errors |
| On-Board Devices per Node - Others | PCI-E 3.0 x8 node to node/NTB connectivity PLX Technology PEX8717; PLX ExpressNIC SDK available from PLX. NDA required |
| System Memory per Node - NVDIMM | NVDIMM support. (Not all vendor's NVDIMM are supported. Please contact your sales representative for details) |
| Product SKUs- Discontinued SKU EOL Please contact sales-rep for alternative options - SSG-6048R-D... | SuperStorage 6048R-DE2CR24L ( Black ) |
