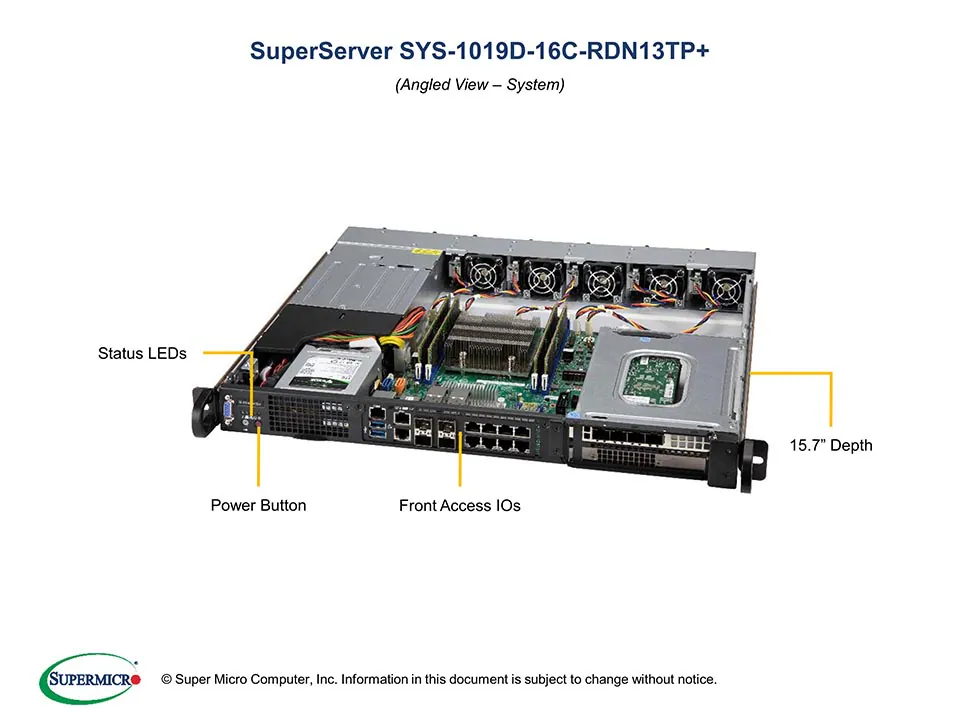

SuperServer 1019D-4C-RAN13TP+
Арт. SYS-1019D-16C-RDN13TP+
Нашли дешевле?

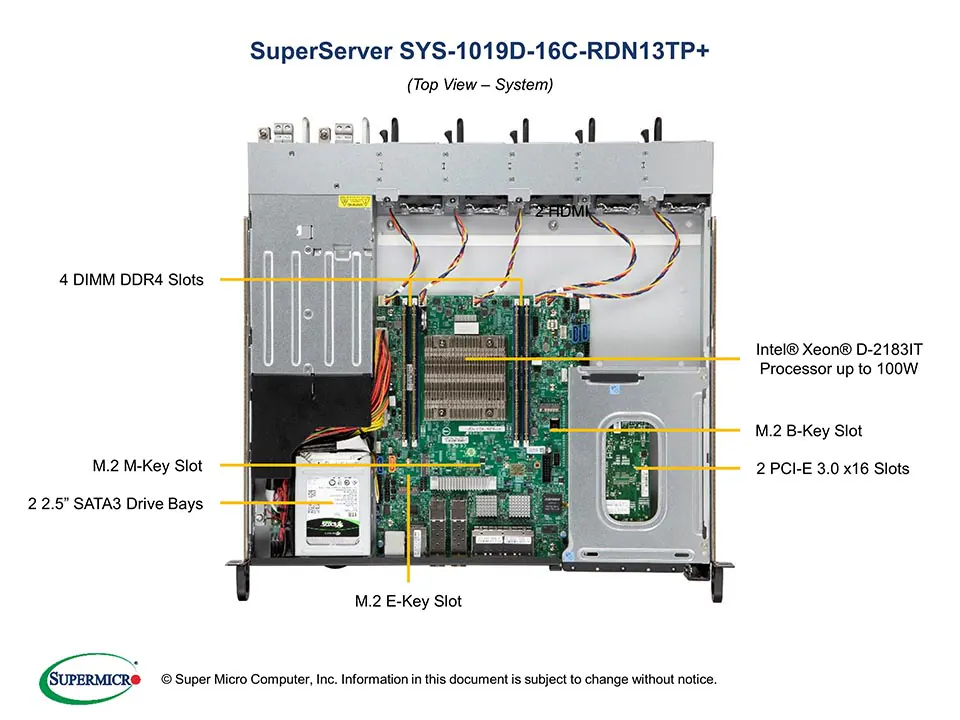

| Motherboard | Super X11SDW-16C-TP13F+; Super X11SDW-16C-TP13F+; Super X11SDW-16C-TP13F+; Super X11SDW-16C-TP13F+ |
| Processor - CPU | Intel® Xeon® processor D-2183IT Single Socket FCBGA-2518 supported, CPU TDP supports Up to 100W TDP |
| System Memory - Memory Capacity | Up to 512GB DDR4 ECC LRDIMM Up to 256GB DDR4 ECC RDIMM 4 DIMM slots |
| System Memory - Memory Type | 2666/2400/2133MHz ECC DDR4 L/RDIMM Operating speed up to 2400MHz |
| System Memory - DIMM Sizes | 128GB, 64GB, 32GB, 16GB |
| System Memory - Memory Voltage | 1.2 V |
| On-Board Devices - Chipset | System on Chip (SoC) |
| On-Board Devices - SATA | SATA3 (6Gbps) ports via SoC controller |
| On-Board Devices - IPMI | ASPEED AST2500 Support for Intelligent Platform Management Interface v.2.0 |
| On-Board Devices - Network Controllers | Quad 10G SFP+ via SoC 8x 1GbE with Intel® I350-AM4 Single 1GbE with Intel® I210 |
| On-Board Devices - Video | VGA via Aspeed AST2500 BMC |
| Input Output - SATA | 2 SATA3 (6Gbps) ports |

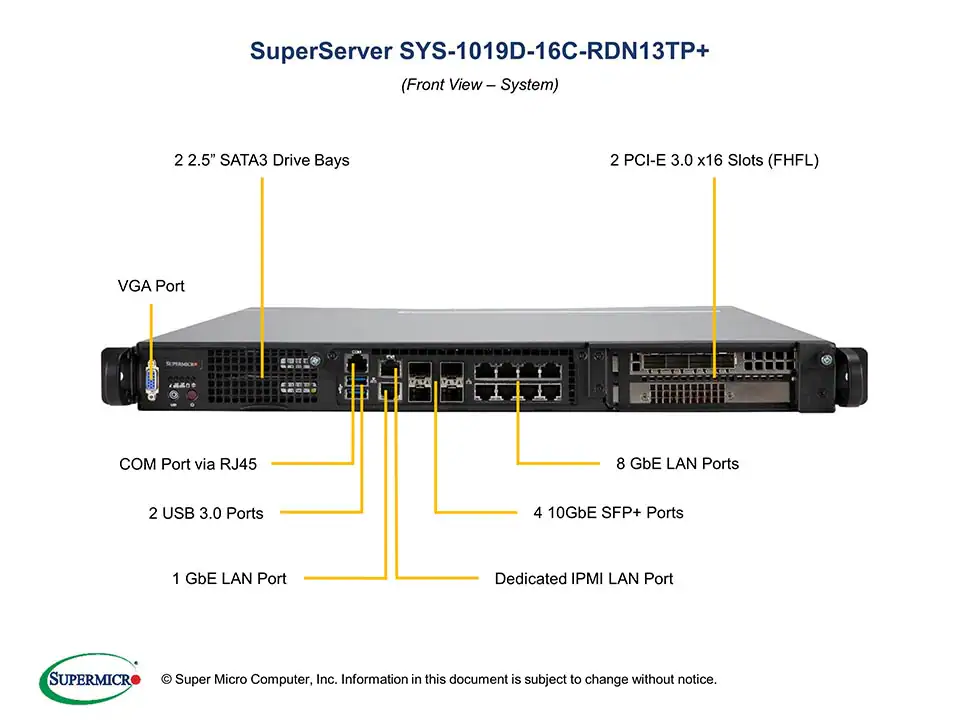

| Input Output - LAN | 9 RJ45 Gigabit Ethernet LAN ports 4 10G SFP+ LAN ports 1 RJ45 Dedicated IPMI LAN port |
| Input Output - USB | 2 USB 3.0 ports (front) |
| Input Output - Video | 1 VGA port |
| Input Output - Serial Port Header | 1 COM via RJ45 |
| Chassis - Form Factor | 1U Rackmount |
| Chassis - Model | CSE-515M-R601 |
| Dimensions and Weight - Height | 1.7" (43mm) |
| Dimensions and Weight - Width | 17.2" (437mm) |
| Dimensions and Weight - Depth | 15.7" (399mm) |
| Dimensions and Weight - Package | 8" (H) x 27" (W) x 24" (D) |
| Dimensions and Weight - Weight | Gross Weight: 28 lbs (12.7 kg) Net Weight: 18 lbs (8.16 kg) |
| Dimensions and Weight - Available Colors | Black |
| Front Panel - Buttons | Power On/Off button System Reset button |
| Front Panel - LEDs | Power LED Hard drive activity LED Network activity LEDs System Information LED |
| Expansion Slots - PCI-Express | 2 PCI-E 3.0 x16 (FHFL) slots |
| Expansion Slots - M2 | 1 M.2 M-Key: 2280/22110 1 M.2 B-Key: 2242/3042 1 M.2 E-Key: 2230 |

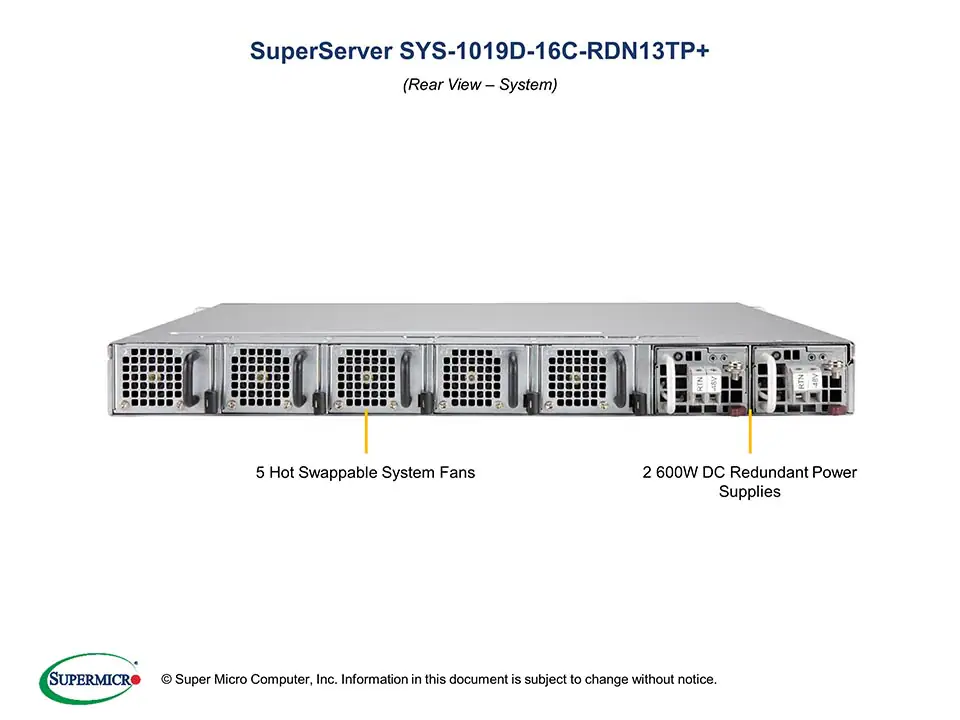

| System Cooling - Fans | 5x 40x56mm Hot-swap Counter-rotation PWM Fans |
| System BIOS - BIOS Type | UEFI 256Mb |
| Operating Environment Compliance - RoHS | RoHS Compliant |
| Operating Environment Compliance - Environmental Spec | Operating Temperature: 0°C to 45°C (32°F to 113°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Parts List - Items Included | Part Number; Description; Motherboard / Chassis; MBD-X11SDW-16C-TP13F+ CSE-515M-R601; Super X11SDW-16C-TP13F+ Motherboard 1U Chassis; Cable 1; CBL-0473L; SATA,INT,ROUND,ST-ST,21CM,30AWG; Cable 2; CBL-CDAT-0850; CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS; FAN-0207L4; 40x40x56 mm, 13K-11K RPM, Counter-rotating, Hot-swappable Fan for SC515M Chassis; MCP-260-00153-0B; 1U I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket, Black; Air Shroud; MCP-310-51504-0B; Mylar Air Shroud for SC515M + X11 SDW; Riser Card; RSC-R1UW-2E16; 1U LHS WIO Riser card with two PCI-E x16 slots; * Power Supply; PWS-601D-1R; -48V DC input, 12V and 5Vsb 600W output for 1U redundancy; * Power Distributor; PDB-PT515M-2424; 1U support redundancy up to 800W for SC515M chassis with ATX; Part Number; Description; Motherboard / Chassis; MBD-X11SDW-16C-TP13F+ CSE-515M-R601; Super X11SDW-16C-TP13F+ Motherboard 1U Chassis; Cable 1; CBL-0473L; SATA,INT,ROUND,ST-ST,21CM,30AWG; Cable 2; CBL-CDAT-0850; CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS; FAN-0207L4; 40x40x56 mm, 13K-11K RPM, Counter-rotating, Hot-swappable Fan for SC515M Chassis; MCP-260-00153-0B; 1U I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket, Black; Air Shroud; MCP-310-51504-0B; Mylar Air Shroud for SC515M + X11 SDW; Riser Card; RSC-R1UW-2E16; 1U LHS WIO Riser card with two PCI-E x16 slots; * Power Supply; PWS-601D-1R; -48V DC input, 12V and 5Vsb 600W output for 1U redundancy; * Power Distributor; PDB-PT515M-2424; 1U support redundancy up to 800W for SC515M chassis with ATX; Part Number; Description; Motherboard / Chassis; MBD-X11SDW-16C-TP13F+ CSE-515M-R601; Super X11SDW-16C-TP13F+ Motherboard 1U Chassis; Cable 1; CBL-0473L; SATA,INT,ROUND,ST-ST,21CM,30AWG; Cable 2; CBL-CDAT-0850; CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS; FAN-0207L4; 40x40x56 mm, 13K-11K RPM, Counter-rotating, Hot-swappable Fan for SC515M Chassis; MCP-260-00153-0B; 1U I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket, Black; Air Shroud; MCP-310-51504-0B; Mylar Air Shroud for SC515M + X11 SDW; Riser Card; RSC-R1UW-2E16; 1U LHS WIO Riser card with two PCI-E x16 slots; * Power Supply; PWS-601D-1R; -48V DC input, 12V and 5Vsb 600W output for 1U redundancy; * Power Distributor; PDB-PT515M-2424; 1U support redundancy up to 800W for SC515M chassis with ATX; Part Number; Description; Motherboard / Chassis; MBD-X11SDW-16C-TP13F+ CSE-515M-R601; Super X11SDW-16C-TP13F+ Motherboard 1U Chassis; Cable 1; CBL-0473L; SATA,INT,ROUND,ST-ST,21CM,30AWG; Cable 2; CBL-CDAT-0850; CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS; FAN-0207L4; 40x40x56 mm, 13K-11K RPM, Counter-rotating, Hot-swappable Fan for SC515M Chassis; MCP-260-00153-0B; 1U I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket, Black; Air Shroud; MCP-310-51504-0B; Mylar Air Shroud for SC515M + X11 SDW; Riser Card; RSC-R1UW-2E16; 1U LHS WIO Riser card with two PCI-E x16 slots; * Power Supply; PWS-601D-1R; -48V DC input, 12V and 5Vsb 600W output for 1U redundancy; * Power Distributor; PDB-PT515M-2424; 1U support redundancy up to 800W for SC515M chassis with ATX |
| Optional Parts List | Part Number; Description; Rack Bracket; MCP-290-00016-0N; 1U open rack bracket set for CSE-PT51L, MCP-290-00054-0N; Air Shroud; MCP-310-51505-0B; Mylar Air Shroud for SC515M + T4 GPU; Air Shroud; MCP-310-51506-0B; Mylar Air Shroud for SC515M, FHFL AOC optimized; Part Number; Description; Rack Bracket; MCP-290-00016-0N; 1U open rack bracket set for CSE-PT51L, MCP-290-00054-0N; Air Shroud; MCP-310-51505-0B; Mylar Air Shroud for SC515M + T4 GPU; Air Shroud; MCP-310-51506-0B; Mylar Air Shroud for SC515M, FHFL AOC optimized; Part Number; Description; Rack Bracket; MCP-290-00016-0N; 1U open rack bracket set for CSE-PT51L, MCP-290-00054-0N; Air Shroud; MCP-310-51505-0B; Mylar Air Shroud for SC515M + T4 GPU; Air Shroud; MCP-310-51506-0B; Mylar Air Shroud for SC515M, FHFL AOC optimized; Part Number; Description; Rack Bracket; MCP-290-00016-0N; 1U open rack bracket set for CSE-PT51L, MCP-290-00054-0N; Air Shroud; MCP-310-51505-0B; Mylar Air Shroud for SC515M + T4 GPU; Air Shroud; MCP-310-51506-0B; Mylar Air Shroud for SC515M, FHFL AOC optimized |
| Management - Software | Intel® Node Manager IPMI 2.0 NMI SUM Watch Dog SuperDoctor® 5 |
| Drive Bays - Internal | 2 Internal 2.5" drive bays |
| Input Output - TPM | 1 TPM Header & Chip both |
| Processor - Cores Cache | 16 Cores, 32 Threads |
| 600W -48V DC input Redundant Power Supplies - Total Output Power | 600W: -44Vdc to -65Vdc |
| 600W -48V DC input Redundant Power Supplies - DimensionW x H x L | 54.5 x 40 x 220 mm |
| 600W -48V DC input Redundant Power Supplies - DC Input | -44Vdc to -65Vdc / 18 - 10A |
| 600W -48V DC input Redundant Power Supplies - 12V | Max: 50A / Min: 0A |
| 600W -48V DC input Redundant Power Supplies - 5V sb | Max: 3A / Min: 0A |
| 600W -48V DC input Redundant Power Supplies - Output Type | Gold Finger Connector Mating with Molex 45984-4343 |
| 600W -48V DC input Redundant Power Supplies - DC option for AC Counter- part | PWS-406P-1R, PWS-407P-1R, PWS-606P-1R, PWS-608P-1R, PWS-804P-1R |
| Product SKUs - SYS-1019D-16C-RDN13TP | SuperServer 1019D-16C-RDN13TP+ ( Black ) |
