SuperServer 1019P-WTR
Арт. SYS-1019P-FRDN2T
Нашли дешевле?
| Motherboard | Super X11SPW-TF; Super X11SPW-TF; Super X11SPW-TF; Super X11SPW-TF |
| System Memory - Memory Capacity | 6 DIMM slots Up to 1.5TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM |
| System Memory - Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| On-Board Devices - Chipset | Intel® C622 chipset |
| On-Board Devices - SATA | SATA3 (6Gbps) |
| On-Board Devices - IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| On-Board Devices - Network Controllers | Dual 10GBase-T LAN with Intel® X722 + X557 |
| On-Board Devices - Video | ASPEED AST2500 BMC |
| Input Output - SATA | 2 SATA3 (6Gbps) ports |

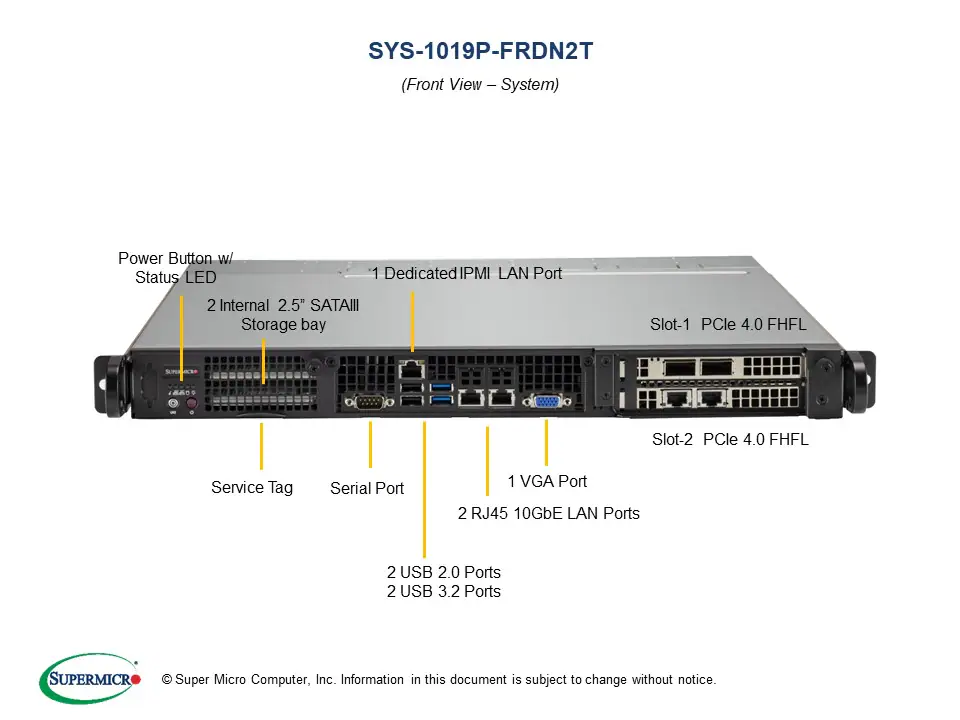

| Input Output - LAN | 2 RJ45 10GBase-T LAN ports 1 RJ45 dedicated IPMI LAN port |
| Input Output - USB | 2 USB 3.0 ports 2 USB 2.0 ports |
| Input Output - Video | 1 VGA port |
| Input Output - Serial Port Header | 1 COM port |
| Input Output - SuperDOM | Ports default connect to hard drive bays |
| PC Health Monitoring - FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring - Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis - Form Factor | 1U Rackmount |
| Chassis - Model | CSE-515M-R601 |
| Dimensions and Weight - Height | 1.7" (43mm) |
| Dimensions and Weight - Width | 17.2" (437mm) |
| Dimensions and Weight - Depth | 15.7" (399mm) |
| Dimensions and Weight - Package | 8" (H) x 27" (W) x 24" (D) |
| Dimensions and Weight - Weight | Gross Weight: 29 lbs (13.15 kg) Net Weight: 18 lbs (8.16 kg) |
| Dimensions and Weight - Available Colors | Black |
| Front Panel - Buttons | Power On/Off button System Reset button |
| Front Panel - LEDs | Power LED Hard drive activity LED Network activity LEDs System Information LED Information LED (temp., status) |
| Expansion Slots - PCI-Express | 2 PCI-E 3.0 x16 (FHFL) slots |
| Expansion Slots - M2 | 1x M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-Key Double Height Connector |

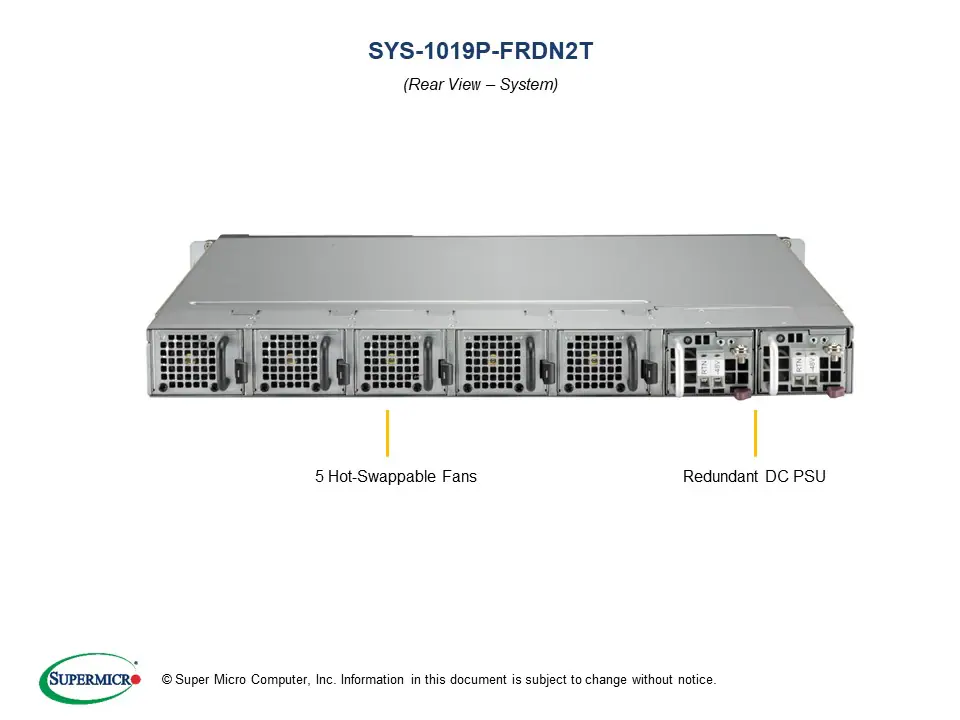

| System Cooling - Fans | 5x 40x56 Hot-Swappable Fan Trays |
| System BIOS - BIOS Type | AMI 32Mb SPI Flash ROM |
| Parts List - Items Included | Part Number; Description; Motherboard / Chassis; MBD-X11SPW-TF CSE-515M-R601; Super X11SPW-TF Motherboard 1U Chassis; Cable 1; CBL-0484L; 55CM 30AWG SATA S-S CBL; Cable 2; CBL-OTHR-1214-24; FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS; FAN-0207L4; 40x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan; Air Shroud; MCP-310-51507-0B; Mylar Air Shroud for SC515M + X11SPW/X12SPW; Riser Card; RSC-R1UW-2E16; 1U LHS WIO Riser card with two PCI-E x16 slots; Heatsink / Retention; SNK-P0071VS; 1U Proprietary Passive CPU Heat Sink (124 mm Long) for SYS-2029BZ-HNR Series Servers (X11 2U4N 3UPI Big Twin); * Power Supply; PWS-601D-1R; -48V DC input, 12V and 5Vsb 600W output for 1U redundancy; * Power Distributor; PDB-PT515M-2424; 1U support redundancy up to 800W for SC515M chassis with ATX; Part Number; Description; Motherboard / Chassis; MBD-X11SPW-TF CSE-515M-R601; Super X11SPW-TF Motherboard 1U Chassis; Cable 1; CBL-0484L; 55CM 30AWG SATA S-S CBL; Cable 2; CBL-OTHR-1214-24; FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS; FAN-0207L4; 40x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan; Air Shroud; MCP-310-51507-0B; Mylar Air Shroud for SC515M + X11SPW/X12SPW; Riser Card; RSC-R1UW-2E16; 1U LHS WIO Riser card with two PCI-E x16 slots; Heatsink / Retention; SNK-P0071VS; 1U Proprietary Passive CPU Heat Sink (124 mm Long) for SYS-2029BZ-HNR Series Servers (X11 2U4N 3UPI Big Twin); * Power Supply; PWS-601D-1R; -48V DC input, 12V and 5Vsb 600W output for 1U redundancy; * Power Distributor; PDB-PT515M-2424; 1U support redundancy up to 800W for SC515M chassis with ATX; Part Number; Description; Motherboard / Chassis; MBD-X11SPW-TF CSE-515M-R601; Super X11SPW-TF Motherboard 1U Chassis; Cable 1; CBL-0484L; 55CM 30AWG SATA S-S CBL; Cable 2; CBL-OTHR-1214-24; FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS; FAN-0207L4; 40x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan; Air Shroud; MCP-310-51507-0B; Mylar Air Shroud for SC515M + X11SPW/X12SPW; Riser Card; RSC-R1UW-2E16; 1U LHS WIO Riser card with two PCI-E x16 slots; Heatsink / Retention; SNK-P0071VS; 1U Proprietary Passive CPU Heat Sink (124 mm Long) for SYS-2029BZ-HNR Series Servers (X11 2U4N 3UPI Big Twin); * Power Supply; PWS-601D-1R; -48V DC input, 12V and 5Vsb 600W output for 1U redundancy; * Power Distributor; PDB-PT515M-2424; 1U support redundancy up to 800W for SC515M chassis with ATX; Part Number; Description; Motherboard / Chassis; MBD-X11SPW-TF CSE-515M-R601; Super X11SPW-TF Motherboard 1U Chassis; Cable 1; CBL-0484L; 55CM 30AWG SATA S-S CBL; Cable 2; CBL-OTHR-1214-24; FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS; FAN-0207L4; 40x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan; Air Shroud; MCP-310-51507-0B; Mylar Air Shroud for SC515M + X11SPW/X12SPW; Riser Card; RSC-R1UW-2E16; 1U LHS WIO Riser card with two PCI-E x16 slots; Heatsink / Retention; SNK-P0071VS; 1U Proprietary Passive CPU Heat Sink (124 mm Long) for SYS-2029BZ-HNR Series Servers (X11 2U4N 3UPI Big Twin); * Power Supply; PWS-601D-1R; -48V DC input, 12V and 5Vsb 600W output for 1U redundancy; * Power Distributor; PDB-PT515M-2424; 1U support redundancy up to 800W for SC515M chassis with ATX |
| Optional Parts List | Part Number; Description; Network Card(s); AOC-SGP-i2 AOC-SGP-i4 AOC-STGN-i2S AOC-STGF-i2S AOC-STG-B4S AOC-STGS-i2T AOC-S25G-b2S AOC-S25G-m2S; - - - - - - - -; Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX; TPM security module; AOM-TPM-9670V AOM-TPM-9671V; TPM 2.0, vertical form factor TPM 1.2, vertical form factor; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Network Card(s); AOC-SGP-i2 AOC-SGP-i4 AOC-STGN-i2S AOC-STGF-i2S AOC-STG-B4S AOC-STGS-i2T AOC-S25G-b2S AOC-S25G-m2S; - - - - - - - -; Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX; TPM security module; AOM-TPM-9670V AOM-TPM-9671V; TPM 2.0, vertical form factor TPM 1.2, vertical form factor; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Network Card(s); AOC-SGP-i2 AOC-SGP-i4 AOC-STGN-i2S AOC-STGF-i2S AOC-STG-B4S AOC-STGS-i2T AOC-S25G-b2S AOC-S25G-m2S; - - - - - - - -; Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX; TPM security module; AOM-TPM-9670V AOM-TPM-9671V; TPM 2.0, vertical form factor TPM 1.2, vertical form factor; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Network Card(s); AOC-SGP-i2 AOC-SGP-i4 AOC-STGN-i2S AOC-STGF-i2S AOC-STG-B4S AOC-STGS-i2T AOC-S25G-b2S AOC-S25G-m2S; - - - - - - - -; Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX; TPM security module; AOM-TPM-9670V AOM-TPM-9671V; TPM 2.0, vertical form factor TPM 1.2, vertical form factor; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license) |
| ProcessorCache - CPU | Single Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ Support CPU TDP 70-205W * |
| ProcessorCache - Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
| Drive Bays - Fixed | 2 Fixed 2.5" Drive Bays |
| Management - Software | Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SPM , SUM SuperDoctor® 5 Watch Dog |
| Management - Power Configurations | ACPI / APM Power Management |
| PC Health Monitoring - CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| System Memory - Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. |
| Operating Environment - RoHS | RoHS Compliant |
| Operating Environment - Environmental Spec | Operating Temperature: 10°C ~ 40°C (50°F ~ 104°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| ProcessorCache - Cores | Up to 28 Cores |
| 600W -48V DC input Redundant Power Supplies - Total Output Power | 600W: -44Vdc to -65Vdc |
| 600W -48V DC input Redundant Power Supplies - DimensionW x H x L | 54.5 x 40 x 220 mm |
| 600W -48V DC input Redundant Power Supplies - DC Input | -44Vdc to -65Vdc / 18 - 10A |
| 600W -48V DC input Redundant Power Supplies - 12V | Max: 50A / Min: 0A |
| 600W -48V DC input Redundant Power Supplies - 5V sb | Max: 3A / Min: 0A |
| 600W -48V DC input Redundant Power Supplies - Output Type | Gold Finger Connector Mating with Molex 45984-4343 |
| Product SKUs - SYS-1019P-FRDN2T | SuperServer 1019P-FRDN2T ( Black ) |
