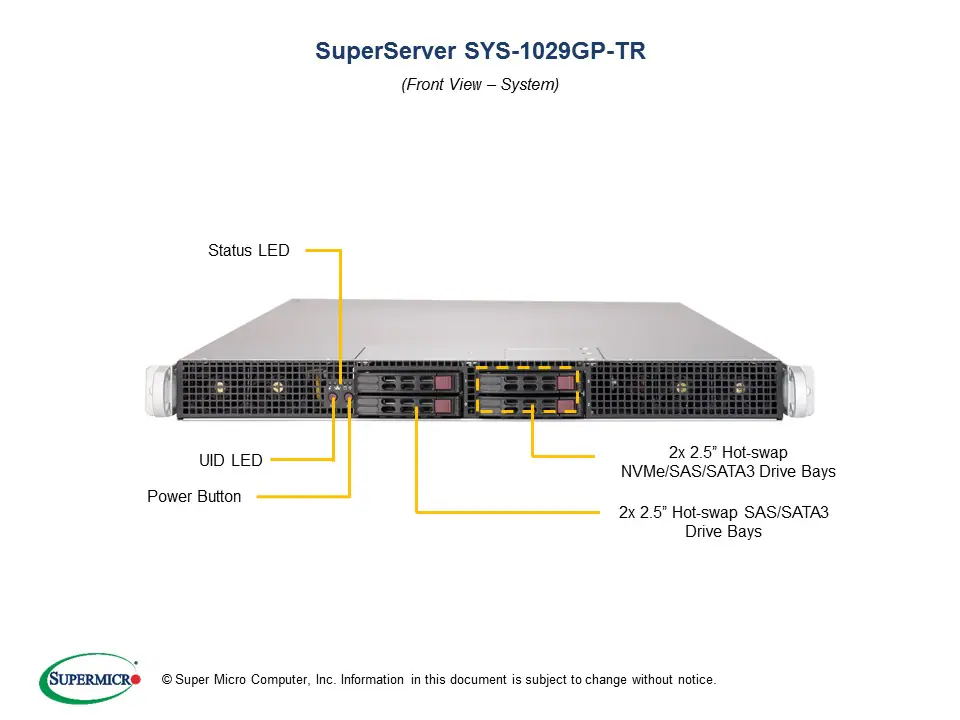

SuperServer 1029GQ-TRT
Арт. SYS-1029GP-TR
Нашли дешевле?
| Motherboard | Super X11DPG-SN; Super X11DPG-SN; Super X11DPG-SN; Super X11DPG-SN |
| Processor - CPU | Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s Support CPU TDP 70-165W * |
| Processor - Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
| System Memory - Memory Capacity | 16 DIMM slots Up to 4TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM Supports Intel® Optane™ DCPMM †† |
| System Memory - Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| On-Board Devices - Chipset | Intel® C621 chipset |
| On-Board Devices - SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| On-Board Devices - IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input Output - LAN | 1 RJ45 Dedicated IPMI LAN port |
| Input Output - USB | 2 USB 3.0 ports (rear) |
| Input Output - Video | 1 VGA port |
| PC Health Monitoring - FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring - Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis - Form Factor | 1U Rackmount |
| Chassis - Model | CSE-118GH-R1K66B2 |
| Dimensions and Weight - Height | 1.7" (43mm) |
| Dimensions and Weight - Width | 17.2" (437mm) |
| Dimensions and Weight - Depth | 30.6" (777mm) |
| Dimensions and Weight - Weight | Net Weight: 45 lbs (15.9 kg) Gross Weight: 58 lbs (21.8 kg) |
| Front Panel - Buttons | Power On/Off button System Reset button |
| Front Panel - LEDs | Power LED Hard drive activity LED Network activity LEDs System Overheat LED / Fan fail LED / UID LED |
| Expansion Slots - PCI-Express | 4 PCI-E 3.0 x16 (FHFL) slots - supporting up to 4 GPUs 1 PCI-E 3.0 x8 (in x16, LP) slot |
| Drive Bays - Hot-swap | 4 Hot-swap 2.5" drive bays |
| System Cooling - Fans | 10 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control |
| Power Supply | 1600W 1U Redundant Power Supplies with PMBus; 1600W 1U Redundant Power Supplies with PMBus; 1600W 1U Redundant Power Supplies with PMBus; 1600W 1U Redundant Power Supplies with PMBus |
| Power Supply - 12V | Max: 82A / Min: 0.1A (100-127Vac) Max: 132A / Min: 0.1A (200-240Vac) |
| Power Supply - Certification | Platinum Level [ Test Report ] |
| System BIOS - BIOS Type | AMI 32Mb SPI Flash ROM |
| Parts List - Items Included | Part Number; Description; Motherboard / Chassis; MBD-X11DPG-SN CSE-118GH-R1K66B2; Super X11DPG-SN Motherboard CSE-118GH-R1K66B2 Chassis; Backplane; BPN-SAS3-118GH-N2; 1U 4-Port Hybrid Backplane Supports 2 x 2.5" SAS3/SATA3 HDD/SSD and 2 x 2.5" SAS3/SATA3/NVMe Storage Device for GPU Platform,HF,RoHS; Cable 1; CBL-0160L; NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt); Cable 2; CBL-0296L; 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG; Cable 3; CBL-PWEX-1027; GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS; Cable 4; CBL-PWEX-1028; GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C; Cable 5; CBL-PWEX-1064; 8pin CPU 12V to 4pin x 2pcs 280mm,16AWG,RoHS; Cable 6; CBL-SAST-0974-1; OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG; Cable 7; CBL-SAST-1020; MINI SAS HD(LA)-MINI SAS(LA),INT,85CM,30AWG; FAN-0141L4; 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan; Drive Tray(s); MCP-220-00047-0B; Black gen 3rd hot-swap 2.5inch HDD tray; MCP-240-00112-0N; GPU 1U Top Cover Bracket (SC118GH-R1/L1/L2), come with SC118GH Chassis; MCP-240-11803-0N; SC118GH 1U 3xGPU Universal Bracket Set for nVidia K10 / K20 / P2040 GPUs; Air Shroud; MCP-310-11810-0B; Air Shroud for X11DPG-SN in CSE-118GH-R1K66B,HF,RoHS/REACH; Fan Holder; MCP-320-81801-0B; SC818G 2x 4056 fan tray,HF,RoHS,PBF; Power Supply; PWS-1K66P-1R; 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF; Riser Card; RSC-G-A66-X; 1U LHS Active GPU Riser Card with 2 PCI-Ex16 for X10 MBs; Riser Card; RSC-R1UG-E16AR+II; RSC-R1UG-E16AR+II; Riser Card; RSC-R1UG-E16R+II; RSC-R1UG-E16R+II; Riser Card; RSC-R1UG-E16-X9; RSC-R1UG-E16-X9; Heatsink / Retention; SNK-P0067PS; 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; Heatsink / Retention; SNK-P0067PSMB; 1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster; Rail Set; MCP-290-00054-0N; Rail set, quick/quick, optional for 1U 17.2"W SC815; Part Number; Description; Motherboard / Chassis; MBD-X11DPG-SN CSE-118GH-R1K66B2; Super X11DPG-SN Motherboard CSE-118GH-R1K66B2 Chassis; Backplane; BPN-SAS3-118GH-N2; 1U 4-Port Hybrid Backplane Supports 2 x 2.5" SAS3/SATA3 HDD/SSD and 2 x 2.5" SAS3/SATA3/NVMe Storage Device for GPU Platform,HF,RoHS; Cable 1; CBL-0160L; NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt); Cable 2; CBL-0296L; 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG; Cable 3; CBL-PWEX-1027; GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS; Cable 4; CBL-PWEX-1028; GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C; Cable 5; CBL-PWEX-1064; 8pin CPU 12V to 4pin x 2pcs 280mm,16AWG,RoHS; Cable 6; CBL-SAST-0974-1; OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG; Cable 7; CBL-SAST-1020; MINI SAS HD(LA)-MINI SAS(LA),INT,85CM,30AWG; FAN-0141L4; 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan; Drive Tray(s); MCP-220-00047-0B; Black gen 3rd hot-swap 2.5inch HDD tray; MCP-240-00112-0N; GPU 1U Top Cover Bracket (SC118GH-R1/L1/L2), come with SC118GH Chassis; MCP-240-11803-0N; SC118GH 1U 3xGPU Universal Bracket Set for nVidia K10 / K20 / P2040 GPUs; Air Shroud; MCP-310-11810-0B; Air Shroud for X11DPG-SN in CSE-118GH-R1K66B,HF,RoHS/REACH; Fan Holder; MCP-320-81801-0B; SC818G 2x 4056 fan tray,HF,RoHS,PBF; Power Supply; PWS-1K66P-1R; 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF; Riser Card; RSC-G-A66-X; 1U LHS Active GPU Riser Card with 2 PCI-Ex16 for X10 MBs; Riser Card; RSC-R1UG-E16AR+II; RSC-R1UG-E16AR+II; Riser Card; RSC-R1UG-E16R+II; RSC-R1UG-E16R+II; Riser Card; RSC-R1UG-E16-X9; RSC-R1UG-E16-X9; Heatsink / Retention; SNK-P0067PS; 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; Heatsink / Retention; SNK-P0067PSMB; 1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster; Rail Set; MCP-290-00054-0N; Rail set, quick/quick, optional for 1U 17.2"W SC815; Part Number; Description; Motherboard / Chassis; MBD-X11DPG-SN CSE-118GH-R1K66B2; Super X11DPG-SN Motherboard CSE-118GH-R1K66B2 Chassis; Backplane; BPN-SAS3-118GH-N2; 1U 4-Port Hybrid Backplane Supports 2 x 2.5" SAS3/SATA3 HDD/SSD and 2 x 2.5" SAS3/SATA3/NVMe Storage Device for GPU Platform,HF,RoHS; Cable 1; CBL-0160L; NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt); Cable 2; CBL-0296L; 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG; Cable 3; CBL-PWEX-1027; GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS; Cable 4; CBL-PWEX-1028; GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C; Cable 5; CBL-PWEX-1064; 8pin CPU 12V to 4pin x 2pcs 280mm,16AWG,RoHS; Cable 6; CBL-SAST-0974-1; OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG; Cable 7; CBL-SAST-1020; MINI SAS HD(LA)-MINI SAS(LA),INT,85CM,30AWG; FAN-0141L4; 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan; Drive Tray(s); MCP-220-00047-0B; Black gen 3rd hot-swap 2.5inch HDD tray; MCP-240-00112-0N; GPU 1U Top Cover Bracket (SC118GH-R1/L1/L2), come with SC118GH Chassis; MCP-240-11803-0N; SC118GH 1U 3xGPU Universal Bracket Set for nVidia K10 / K20 / P2040 GPUs; Air Shroud; MCP-310-11810-0B; Air Shroud for X11DPG-SN in CSE-118GH-R1K66B,HF,RoHS/REACH; Fan Holder; MCP-320-81801-0B; SC818G 2x 4056 fan tray,HF,RoHS,PBF; Power Supply; PWS-1K66P-1R; 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF; Riser Card; RSC-G-A66-X; 1U LHS Active GPU Riser Card with 2 PCI-Ex16 for X10 MBs; Riser Card; RSC-R1UG-E16AR+II; RSC-R1UG-E16AR+II; Riser Card; RSC-R1UG-E16R+II; RSC-R1UG-E16R+II; Riser Card; RSC-R1UG-E16-X9; RSC-R1UG-E16-X9; Heatsink / Retention; SNK-P0067PS; 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; Heatsink / Retention; SNK-P0067PSMB; 1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster; Rail Set; MCP-290-00054-0N; Rail set, quick/quick, optional for 1U 17.2"W SC815; Part Number; Description; Motherboard / Chassis; MBD-X11DPG-SN CSE-118GH-R1K66B2; Super X11DPG-SN Motherboard CSE-118GH-R1K66B2 Chassis; Backplane; BPN-SAS3-118GH-N2; 1U 4-Port Hybrid Backplane Supports 2 x 2.5" SAS3/SATA3 HDD/SSD and 2 x 2.5" SAS3/SATA3/NVMe Storage Device for GPU Platform,HF,RoHS; Cable 1; CBL-0160L; NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt); Cable 2; CBL-0296L; 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG; Cable 3; CBL-PWEX-1027; GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 14CM, 17AWG, 8A/pin, -25~85C, RoHS; Cable 4; CBL-PWEX-1028; GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C; Cable 5; CBL-PWEX-1064; 8pin CPU 12V to 4pin x 2pcs 280mm,16AWG,RoHS; Cable 6; CBL-SAST-0974-1; OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG; Cable 7; CBL-SAST-1020; MINI SAS HD(LA)-MINI SAS(LA),INT,85CM,30AWG; FAN-0141L4; 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan; Drive Tray(s); MCP-220-00047-0B; Black gen 3rd hot-swap 2.5inch HDD tray; MCP-240-00112-0N; GPU 1U Top Cover Bracket (SC118GH-R1/L1/L2), come with SC118GH Chassis; MCP-240-11803-0N; SC118GH 1U 3xGPU Universal Bracket Set for nVidia K10 / K20 / P2040 GPUs; Air Shroud; MCP-310-11810-0B; Air Shroud for X11DPG-SN in CSE-118GH-R1K66B,HF,RoHS/REACH; Fan Holder; MCP-320-81801-0B; SC818G 2x 4056 fan tray,HF,RoHS,PBF; Power Supply; PWS-1K66P-1R; 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF; Riser Card; RSC-G-A66-X; 1U LHS Active GPU Riser Card with 2 PCI-Ex16 for X10 MBs; Riser Card; RSC-R1UG-E16AR+II; RSC-R1UG-E16AR+II; Riser Card; RSC-R1UG-E16R+II; RSC-R1UG-E16R+II; Riser Card; RSC-R1UG-E16-X9; RSC-R1UG-E16-X9; Heatsink / Retention; SNK-P0067PS; 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; Heatsink / Retention; SNK-P0067PSMB; 1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster; Rail Set; MCP-290-00054-0N; Rail set, quick/quick, optional for 1U 17.2"W SC815 |
| Optional Parts List | Part Number; Description; Bracket Set; MCP-240-11813-0N; SC118GH NVidia T4 GPU Bracket (2x pcs per chassis); MCP-210-11601-0B; Black Front Bezel for SC118GH; GPU Cable; CBL-PWEX-0665; M10 GPU Model Cable; Cable Management Arm; MCP-290-00165-0N; 1U SMC Cable Managent Arm, 3rd Gen; Storage Control Card and Cable(s); AOC-S3008L-L8e & 1x CBL-SAST-0593 AOC-S3008L-L8e+ & 1x CBL-SAST-0593 AOC-S3008L-L8i & CBL-SAST-0593 AOC-S3108L-H8iR & CBL-SAST-0593 AOC-S3108L-H8iR-16DD & CBL-SAST-0593; Supermicro 12Gb/s Eight-Port SAS Internal HBA Adapter Supermicro 12Gb/s Eight-Port SAS Internal HBA Adapter with IPMI support Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG; Super Cap for LSI 3108; 1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05; Supercap mounting bracket for PCI-E location; Intel VROC RAID Key; AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD; Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10; 2.5" NVMe Drive Trays; MCP-220-00121-0B MCP-220-00167-0B; Black Gen-3 2.5" NVMe or drive tray, orange tab with lock Tool-less balck hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design); TPM Security Module; AOM-TPM-9670V; SPI capable vertical TPM 2.0 provisioned for client,RoHS; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Bracket Set; MCP-240-11813-0N; SC118GH NVidia T4 GPU Bracket (2x pcs per chassis); MCP-210-11601-0B; Black Front Bezel for SC118GH; GPU Cable; CBL-PWEX-0665; M10 GPU Model Cable; Cable Management Arm; MCP-290-00165-0N; 1U SMC Cable Managent Arm, 3rd Gen; Storage Control Card and Cable(s); AOC-S3008L-L8e & 1x CBL-SAST-0593 AOC-S3008L-L8e+ & 1x CBL-SAST-0593 AOC-S3008L-L8i & CBL-SAST-0593 AOC-S3108L-H8iR & CBL-SAST-0593 AOC-S3108L-H8iR-16DD & CBL-SAST-0593; Supermicro 12Gb/s Eight-Port SAS Internal HBA Adapter Supermicro 12Gb/s Eight-Port SAS Internal HBA Adapter with IPMI support Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG; Super Cap for LSI 3108; 1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05; Supercap mounting bracket for PCI-E location; Intel VROC RAID Key; AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD; Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10; 2.5" NVMe Drive Trays; MCP-220-00121-0B MCP-220-00167-0B; Black Gen-3 2.5" NVMe or drive tray, orange tab with lock Tool-less balck hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design); TPM Security Module; AOM-TPM-9670V; SPI capable vertical TPM 2.0 provisioned for client,RoHS; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Bracket Set; MCP-240-11813-0N; SC118GH NVidia T4 GPU Bracket (2x pcs per chassis); MCP-210-11601-0B; Black Front Bezel for SC118GH; GPU Cable; CBL-PWEX-0665; M10 GPU Model Cable; Cable Management Arm; MCP-290-00165-0N; 1U SMC Cable Managent Arm, 3rd Gen; Storage Control Card and Cable(s); AOC-S3008L-L8e & 1x CBL-SAST-0593 AOC-S3008L-L8e+ & 1x CBL-SAST-0593 AOC-S3008L-L8i & CBL-SAST-0593 AOC-S3108L-H8iR & CBL-SAST-0593 AOC-S3108L-H8iR-16DD & CBL-SAST-0593; Supermicro 12Gb/s Eight-Port SAS Internal HBA Adapter Supermicro 12Gb/s Eight-Port SAS Internal HBA Adapter with IPMI support Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG; Super Cap for LSI 3108; 1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05; Supercap mounting bracket for PCI-E location; Intel VROC RAID Key; AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD; Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10; 2.5" NVMe Drive Trays; MCP-220-00121-0B MCP-220-00167-0B; Black Gen-3 2.5" NVMe or drive tray, orange tab with lock Tool-less balck hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design); TPM Security Module; AOM-TPM-9670V; SPI capable vertical TPM 2.0 provisioned for client,RoHS; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Bracket Set; MCP-240-11813-0N; SC118GH NVidia T4 GPU Bracket (2x pcs per chassis); MCP-210-11601-0B; Black Front Bezel for SC118GH; GPU Cable; CBL-PWEX-0665; M10 GPU Model Cable; Cable Management Arm; MCP-290-00165-0N; 1U SMC Cable Managent Arm, 3rd Gen; Storage Control Card and Cable(s); AOC-S3008L-L8e & 1x CBL-SAST-0593 AOC-S3008L-L8e+ & 1x CBL-SAST-0593 AOC-S3008L-L8i & CBL-SAST-0593 AOC-S3108L-H8iR & CBL-SAST-0593 AOC-S3108L-H8iR-16DD & CBL-SAST-0593; Supermicro 12Gb/s Eight-Port SAS Internal HBA Adapter Supermicro 12Gb/s Eight-Port SAS Internal HBA Adapter with IPMI support Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,30AWG; Super Cap for LSI 3108; 1x BTR-TFM8G-LSICVM02 & 1x BKT-BBU-BRACKET-05; Supercap mounting bracket for PCI-E location; Intel VROC RAID Key; AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD; Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10; 2.5" NVMe Drive Trays; MCP-220-00121-0B MCP-220-00167-0B; Black Gen-3 2.5" NVMe or drive tray, orange tab with lock Tool-less balck hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design); TPM Security Module; AOM-TPM-9670V; SPI capable vertical TPM 2.0 provisioned for client,RoHS; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license) |
| Management - Software | Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM , SPM , SUM SuperDoctor® 5 Watch Dog |
| Management - Power Configurations | ACPI / APM Power Management |
| On-Board Devices - Graphics | ASPEED AST2500 BMC |
| PC Health Monitoring - CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| Processor - Cores | Up to 28 Cores |
| System Memory - Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. |
| Operating Environment - RoHS | RoHS Compliant |
| Operating Environment - Environmental Spec | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Dimensions and Weight - Available Color | Black |
| Power Supply - Total Output Power | 1000W: 100 – 127Vac 1600W: 200 – 240Vac |
| Power Supply - DimensionW x H x L | 73.5 x 40 x 265 mm |
| Power Supply - Input | 100-127Vac / 12.9A Max / 50-60Hz 200-240Vac / 9.5A Max / 50-60Hz |
| Power Supply - Output Type | 25 Pairs Gold Finger Connector |
| Power Supply - 12V SB | Max: 2A / Min: 0.2A |
| Input Output - Serial Header | 1 Fast UART 16550 header |
| GPU - Supported GPUs | 3 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length) 4 Single-Width GPUs NVIDIA V100, M10, T4, Quadro RTX Compatible GPU list |
| GPU - CPU-GPU Interconnect | PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root |
| Product SKUs - SYS-1029GP-TR | SuperServer 1029GP-TR |
