SuperServer 1029UX-LL3-S1
Арт. SYS-1029UX-LL2-S16
Продается и поддерживается только в составе готовой системы
Нашли дешевле?
| Motherboard | Super X11DPU-XLL; Super X11DPU-XLL; Super X11DPU-XLL; Super X11DPU-XLL |
| Processor - CPU | Dual Socket P (LGA 3647) Intel® Xeon® Gold 6146 included |
| System Memory - Memory Capacity | 16 DIMM slots Up to 2TB 3DS ECC L/RDIMM, up to DDR4-2666MHz 12x 16GB DDR4-2666MHz included |
| System Memory - Memory Type | 2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| On-Board Devices - Chipset | Intel® C621 chipset |
| On-Board Devices - SATA | SATA3 (disabled) |
| On-Board Devices - IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |

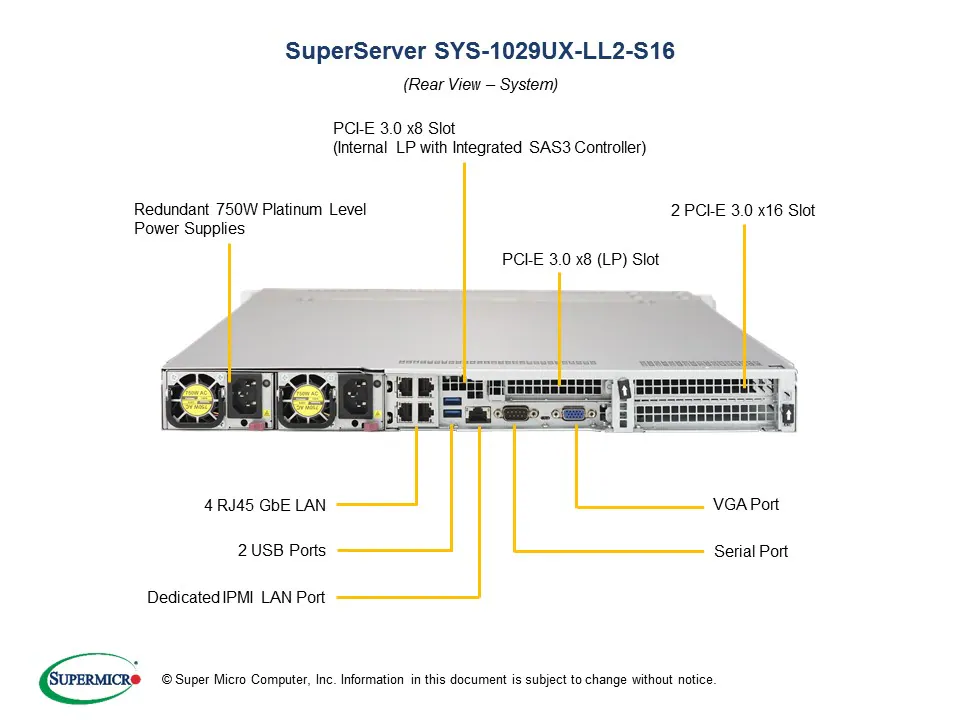

| Input Output - LAN | 4 RJ45 Gigabit Ethernet ports 1 RJ45 Dedicated IPMI LAN port |
| Input Output - USB | 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) |
| Input Output - Video | 1 VGA port |
| PC Health Monitoring - FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring - Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis - Form Factor | 1U Rackmount |
| Chassis - Model | CSE-119UTS-R751P-T |
| Dimensions and Weight - Height | 1.7" (43mm) |
| Dimensions and Weight - Width | 17.2" (437mm) |
| Dimensions and Weight - Depth | 28.5" (724mm) |
| Dimensions and Weight - Weight | Gross Weight: 48 lbs (21.77 kg) |

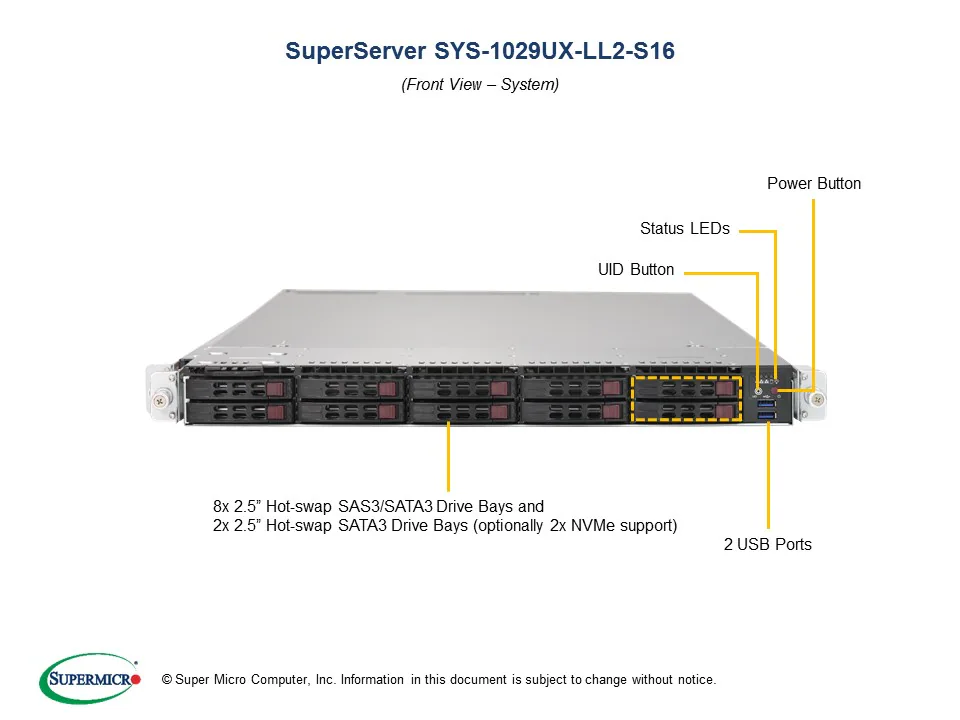

| Front Panel - Buttons | Power On/Off button System Reset button |
| Front Panel - LEDs | Power LED Hard drive activity LED Network activity LEDs System Overheat LED / Fan fail LED / UID LED |
| Expansion Slots - PCI-Express | 2 PCI-E 3.0 x16 (1 Full-height, 10.5" L; 1 Full-height, 10") 1 PCI-E 3.0 x8 (Low Profile) 1 PCI-E 3.0 x8 (Internal SAS3 integrated 3108) (See manual block diagram and AOC Support for details.) |
| Drive Bays - Hot-swap | 8 Hot-swap 2.5" SAS3 drive bays 2 Hot-swap 2.5" NVMe |
| System Cooling - Fans | 8 heavy duty fans with optimal fan speed control |
| Power Supply | 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output; 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output; 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output; 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output |
| Power Supply - 12V | Max: 62.5A & Min: 0A (100Vac-127Vac) Max: 62.5A & Min: 0A (200Vac-240Vac) |
| Power Supply - Certification | Platinum Level [ Test Report ] |
| System BIOS - BIOS Type | AMI UEFI |
| Parts List - Items Included | Part Number; Description; Motherboard / Chassis; MBD-X11DPU-XLL CSE-119UTS-R751P-T; Super X11DPU-XLL Motherboard CSE-119UTS-R751P-T Chassis; FAN-0101L4; 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808; Power Supply; PWS-751P-1R; 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH; P4X-LL26146; LL2 Only, SKL 6146 12C/24T 3.2G 24.75M 10.4GT 165W; Memory; MEM-DR416L-SL02-ER26; 16GB DDR4-2666 1Rx4 LP ECC REG DIMM; Storage Control Card; AOC-S3108L-H8iR; Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; Software; SFT-OOB-LIC; OOB Management Package (per node license); Part Number; Description; Motherboard / Chassis; MBD-X11DPU-XLL CSE-119UTS-R751P-T; Super X11DPU-XLL Motherboard CSE-119UTS-R751P-T Chassis; FAN-0101L4; 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808; Power Supply; PWS-751P-1R; 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH; P4X-LL26146; LL2 Only, SKL 6146 12C/24T 3.2G 24.75M 10.4GT 165W; Memory; MEM-DR416L-SL02-ER26; 16GB DDR4-2666 1Rx4 LP ECC REG DIMM; Storage Control Card; AOC-S3108L-H8iR; Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; Software; SFT-OOB-LIC; OOB Management Package (per node license); Part Number; Description; Motherboard / Chassis; MBD-X11DPU-XLL CSE-119UTS-R751P-T; Super X11DPU-XLL Motherboard CSE-119UTS-R751P-T Chassis; FAN-0101L4; 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808; Power Supply; PWS-751P-1R; 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH; P4X-LL26146; LL2 Only, SKL 6146 12C/24T 3.2G 24.75M 10.4GT 165W; Memory; MEM-DR416L-SL02-ER26; 16GB DDR4-2666 1Rx4 LP ECC REG DIMM; Storage Control Card; AOC-S3108L-H8iR; Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; Software; SFT-OOB-LIC; OOB Management Package (per node license); Part Number; Description; Motherboard / Chassis; MBD-X11DPU-XLL CSE-119UTS-R751P-T; Super X11DPU-XLL Motherboard CSE-119UTS-R751P-T Chassis; FAN-0101L4; 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808; Power Supply; PWS-751P-1R; 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH; P4X-LL26146; LL2 Only, SKL 6146 12C/24T 3.2G 24.75M 10.4GT 165W; Memory; MEM-DR416L-SL02-ER26; 16GB DDR4-2666 1Rx4 LP ECC REG DIMM; Storage Control Card; AOC-S3108L-H8iR; Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; Software; SFT-OOB-LIC; OOB Management Package (per node license) |
| Optional Parts List | Part Number; Description; CacheVault(s); BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02 & MCP-240-00127-0N; CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location; 1U Cable Management Arm; MCP-290-00152-0N; 1U Supermicro Cable Management Arm 2nd Gen; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; CacheVault(s); BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02 & MCP-240-00127-0N; CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location; 1U Cable Management Arm; MCP-290-00152-0N; 1U Supermicro Cable Management Arm 2nd Gen; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; CacheVault(s); BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02 & MCP-240-00127-0N; CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location; 1U Cable Management Arm; MCP-290-00152-0N; 1U Supermicro Cable Management Arm 2nd Gen; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; CacheVault(s); BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02 & MCP-240-00127-0N; CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location; 1U Cable Management Arm; MCP-290-00152-0N; 1U Supermicro Cable Management Arm 2nd Gen; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-DCMS-Single; DataCenter Management Package (per node license) |
| On-Board Devices - SAS | Broadcom 3108 controller for 8 SAS3 ports |
| Input Output - SAS | 8 SAS3 ports support via integrated 3108 Add-on Card |
| Management - Software | IPMI 2.0 KVM with dedicated LAN NMI SSM , SPM , SUM SuperDoctor® 5 Watchdog |
| Power Supply - AC Input | 100-127Vac, 50-60Hz 200-240Vac, 50-60Hz |
| On-Board Devices - Graphics | ASPEED AST2500 BMC |
| PC Health Monitoring - CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| Processor - Cores | Up to 12 Cores |
| Operating Environment - RoHS | RoHS Compliant |
| Operating Environment - Environmental Spec | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| On-Board Devices - Network Connectivity | 4 Gigabit Ethernet ports via AOC-UR-i4G (Intel® i350AM4) |
| Input Output - Serial Port | 1 COM Port (1 rear) |
| Dimensions and Weight - Available Color | Black |
| Power Supply - 12V SB | Max: 2.1A Min: 0A |
| Product SKUs- Discontinued SKU EOL Please contact sales-rep for alternative options - SYS-1029UX-... | SuperServer 1029UX-LL2-S16 ( Black ) |
