CloudDC SuperServer SYS-121C-TN10R
Арт. SYS-121C-TN10R
2U сервер с Dual Socket E (LGA-4677) Intel Xeon Scalable, память DDR5 до 4TB, 10x 2.5" NVMe/SATA/SAS.
Нашли дешевле?
| Processor - CPU | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Processor - Note | Supports up to 270W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details. |
| System Memory - Memory Voltage | 1.1V |
| On-Board Devices - Chipset | Intel® C741 |
| On-Board Devices - SATA | SATA (6Gbps) ; RAID 0/1/5/10 support |

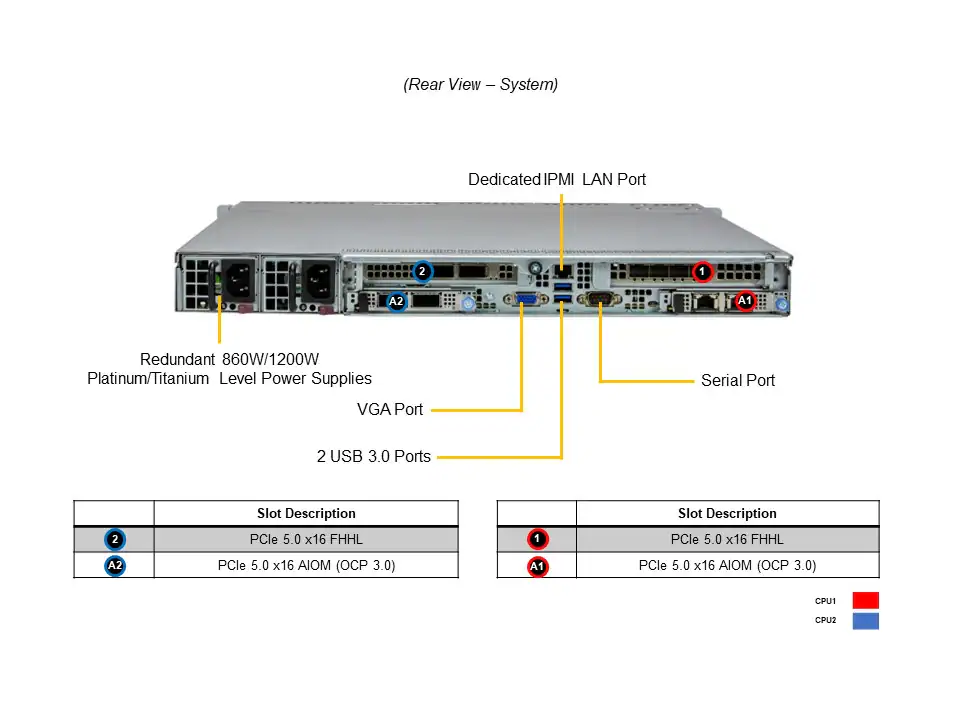

| Input Output - LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| Input Output - USB | 2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 2.0 Type-A ports(front) |
| Input Output - Video | 1 VGA port |
| PC Health Monitoring - FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring - Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis - Form Factor | 1U Rackmount |
| Chassis - Model | CSE-LB16TS-R0AWNP3 |
| Dimensions and Weight - Height | 1.7" (43 mm) |
| Dimensions and Weight - Width | 17.2" (437 mm) |
| Dimensions and Weight - Depth | 23.5" (597 mm) |
| Dimensions and Weight - Package | 7.8" (H) x 23.8" (W) x 32.4" (D) |
| Dimensions and Weight - Weight | Gross Weight: 40 lbs (18.1 kg) Net Weight: 25 lbs (11.3 kg) |
| Front Panel - Buttons | Power On/Off Unit Identifier (UID) |
| System Cooling - Fans | 6x 4cm heavy duty fans with optimal fan speed control |
| System BIOS - BIOS Type | AMI 32MB SPI FLASH ROM |
| Management - Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Input Output - TPM | 1 TPM header |
| PC Health Monitoring - CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 8 Phase-switching voltage regulator |
| Operating Environment - Environmental Spec | Name: A2 Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
| On-Board Devices - Network Connectivity | Via AIOM View AIOM Options View AOC Options |
| Dimensions and Weight - Available Color | Black front & silver body |
| Drive Bays Storage - M2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280; VROC required for RAID) View M.2 Options |
| System Cooling - Air Shroud | 2 Air Shrouds |
| Processor - Core Count | Up to 36C/72T; Up to 82.5MB Cache per CPU |
| System Memory - Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM View Memory Options |
| Input Output - Serial | 1 COM port(Rear) |
| Management - Power configurations | ACPI/APM Power Management |
| Front Panel - LED | Drive activity Network activity Power status Universal Information |
| Operating Environment - ROHS | RoHS Compliant |
| GPU - Max GPU Count | Up to 2 single-width GPUs |
| Security - Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Expansion Slots - PCI-Express PCIe Configuration | Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) View AOC Options |
| Drive Bays Storage - Drive Bays Configuration | Default: Total 10 bays 10 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) View NVMe Options View Drive Options |
| GPU - Supported GPU | NVIDIA PCIe: L4, A2 Intel PCIe: Intel Data Center GPU Flex 140 View GPU Options |
| Security - Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| On-Board Devices - NVMe | NVMe; RAID 0/1/5/10 support(VROC HW key required) View NVMe Options |
