SuperServer 2049U-TR
Арт. SYS-2029UZ-TR4+
Продается и поддерживается только в составе готовой системы
Нашли дешевле?
| Motherboard | Super X11DPU-ZE+; Super X11DPU-ZE+; Super X11DPU-ZE+; Super X11DPU-ZE+ |
| Processor - CPU | Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s Support CPU TDP 70-205W |
| Processor - Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |

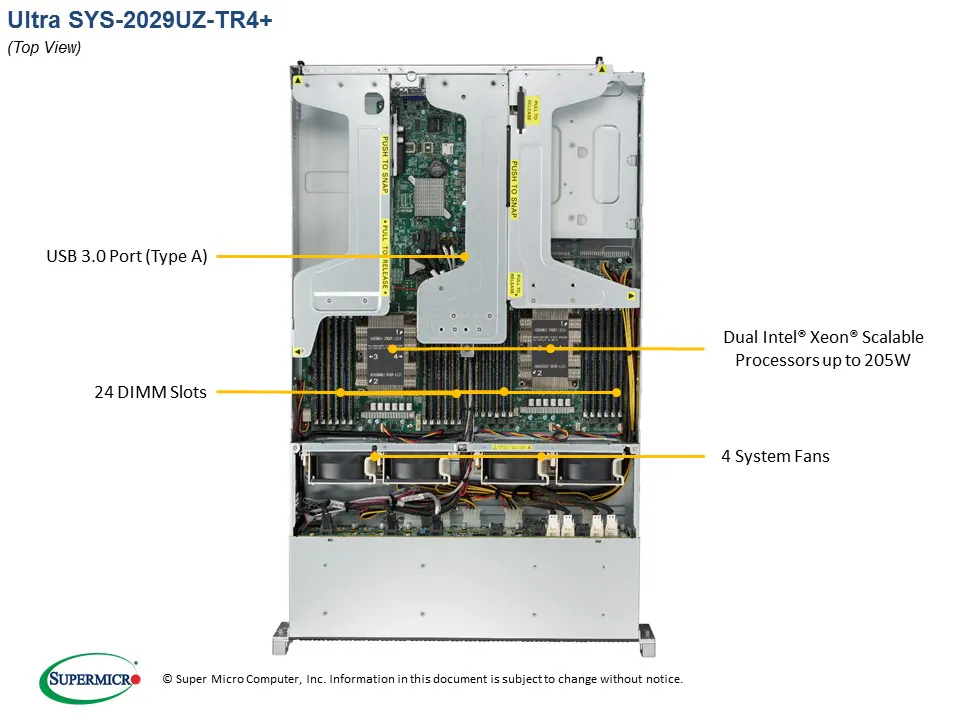

| System Memory - Memory Capacity | 24 DIMM slots Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM Supports Intel® Optane™ DCPMM †† |
| System Memory - Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| On-Board Devices - Chipset | Intel® C621 chipset |
| On-Board Devices - SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| On-Board Devices - IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input Output - SATA | 10 SATA3 (6Gbps) ports |
| Input Output - LAN | 4 GbE ports 1 RJ45 Dedicated IPMI LAN port |
| Input Output - USB | 3 USB 3.0 ports (2 rear, 1 Type A) |
| Input Output - Video | 2 VGA ports (1 rear, 1 onboard) |
| PC Health Monitoring - FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring - Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |

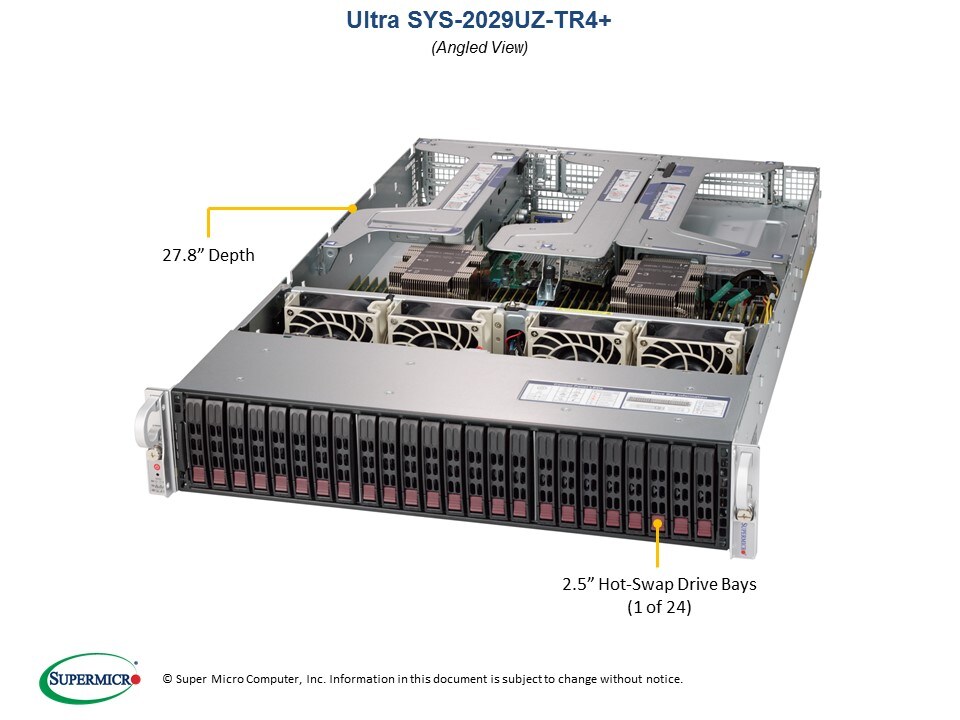

| Chassis - Form Factor | 2U Rackmount |
| Chassis - Model | CSE-219U2TS-R1K62P-T |
| Dimensions and Weight - Height | 3.5" (89mm) |
| Dimensions and Weight - Width | 17.2" (437mm) |
| Dimensions and Weight - Depth | 27.76" (705mm) |
| Dimensions and Weight - Weight | Net Weight: 36 lbs (16.4 kg) Gross Weight: 72 lbs (32.7 kg) |
| Front Panel - Buttons | Power On/Off button System UID button |
| Front Panel - LEDs | Power LED Hard drive activity LED Network activity LEDs UID LED |

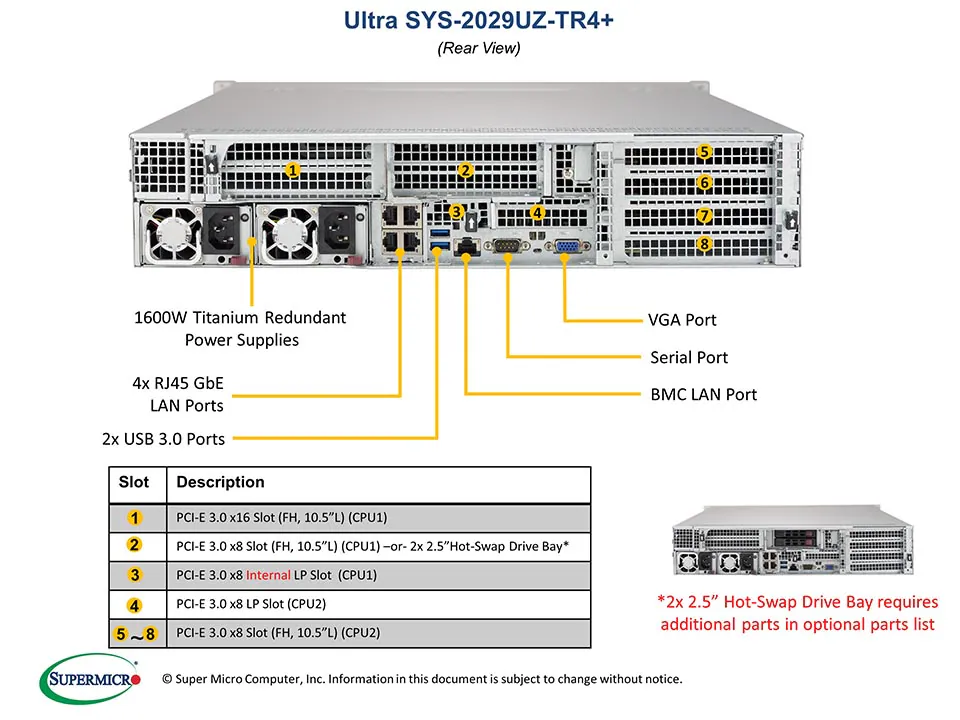

| Expansion Slots - PCI-Express | 1 PCI-E 3.0 x16 slot (FH, 10.5"L) 5 PCI-E 3.0 x8 slot (FH, 10.5"L) 1 PCI-E 3.0 x8 slot (LP) 1 PCI-E 3.0 x8 slot (internal LP) |
| System Cooling - Fans | 4 Heavy duty 8cm fans |
| Power Supply | 1600W Redundant Power Supplies with PMBus; 1600W Redundant Power Supplies with PMBus; 1600W Redundant Power Supplies with PMBus; 1600W Redundant Power Supplies with PMBus |
| Power Supply - 12V | Max: 83.3A / Min: 0A (100-127Vac) Max: 133A / Min: 0A (200-240Vac) |
| Power Supply - Certification | Titanium Level [ Test Report ] |
| System BIOS - BIOS Type | AMI 32Mb SPI Flash ROM |
| Parts List - Items Included | Part Number; Description; Motherboard / Chassis; MBD-X11DPU-ZE+ CSE-219U2TS-R1K62P-T; Super X11DPU-ZE+ Motherboard 2U Chassis; Add-on Card / Module; AOC-2UR68-I4G-P; 2U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports, 1 internal PCI-E x8 3.0 slot, 1 PCI-E x16 3.0, and I PCI-E x8 3.0 (in x16 slot); Backplane; BPN-SAS3-216A-N4; 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices; Cable 1; CBL-0306L; CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,65CM,28AWG; Cable 2; CBL-PWEX-0673; 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH; Cable 3; CBL-SAST-0591; MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,75CM,75CM SB,30AWG; Cable 4; CBL-SAST-0655; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG; Cable 5; CBL-SAST-0657; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG; Air Shroud; MCP-310-82921-0N; Plastic air shroud for SC829U, 219U (X11 24DIMM, left side); Air Shroud; MCP-310-82922-0N; Plastic air shroud for SC829U, 219U (X11 24DIMM, right side); Riser Card; RSC-R1UW-E8R; 1U RHS WIO Riser card with one PCI-E x8 slot; Riser Card; RSC-R2UW-4E8; 2U LHS WIO Riser card with four PCI-E x4 slots; Heatsink / Retention; SNK-P0068PS; 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; * Power Supply; PWS-1K62A-1R; AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH; * Cable 6; CBL-0088L; 4 PIN MIDDLE FAN POWER CABLE (PWM). 27cm, 24AWG; * Cable 7; CBL-0160L; NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt); * Cable 8; CBL-0318L; CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,24CM,28AWG; * FAN 1; FAN-0158L4; 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH; * Drive Tray(s); MCP-220-00047-0B; Black gen 3rd hot-swap 2.5inch HDD tray; * Rail Set; MCP-290-00057-0N; Rail set, quick/quick, default for 4U 17.2"; W; * Rail Set; MCP-290-00060-0N; Threaded rail adapter default for round hole rack; * Air Shroud; MCP-310-81905-0B; Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH; * Front Panel; Front panel adaptor board (TB826) forSC826,213,216,219; * Rail Set; MCP-290-00115-0N; Inner rail, quick-release type; * Rail Set; MCP-290-00117-0N; Outer rail, quick-release type; Part Number; Description; Motherboard / Chassis; MBD-X11DPU-ZE+ CSE-219U2TS-R1K62P-T; Super X11DPU-ZE+ Motherboard 2U Chassis; Add-on Card / Module; AOC-2UR68-I4G-P; 2U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports, 1 internal PCI-E x8 3.0 slot, 1 PCI-E x16 3.0, and I PCI-E x8 3.0 (in x16 slot); Backplane; BPN-SAS3-216A-N4; 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices; Cable 1; CBL-0306L; CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,65CM,28AWG; Cable 2; CBL-PWEX-0673; 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH; Cable 3; CBL-SAST-0591; MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,75CM,75CM SB,30AWG; Cable 4; CBL-SAST-0655; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG; Cable 5; CBL-SAST-0657; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG; Air Shroud; MCP-310-82921-0N; Plastic air shroud for SC829U, 219U (X11 24DIMM, left side); Air Shroud; MCP-310-82922-0N; Plastic air shroud for SC829U, 219U (X11 24DIMM, right side); Riser Card; RSC-R1UW-E8R; 1U RHS WIO Riser card with one PCI-E x8 slot; Riser Card; RSC-R2UW-4E8; 2U LHS WIO Riser card with four PCI-E x4 slots; Heatsink / Retention; SNK-P0068PS; 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; * Power Supply; PWS-1K62A-1R; AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH; * Cable 6; CBL-0088L; 4 PIN MIDDLE FAN POWER CABLE (PWM). 27cm, 24AWG; * Cable 7; CBL-0160L; NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt); * Cable 8; CBL-0318L; CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,24CM,28AWG; * FAN 1; FAN-0158L4; 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH; * Drive Tray(s); MCP-220-00047-0B; Black gen 3rd hot-swap 2.5inch HDD tray; * Rail Set; MCP-290-00057-0N; Rail set, quick/quick, default for 4U 17.2"; W; * Rail Set; MCP-290-00060-0N; Threaded rail adapter default for round hole rack; * Air Shroud; MCP-310-81905-0B; Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH; * Front Panel; Front panel adaptor board (TB826) forSC826,213,216,219; * Rail Set; MCP-290-00115-0N; Inner rail, quick-release type; * Rail Set; MCP-290-00117-0N; Outer rail, quick-release type; Part Number; Description; Motherboard / Chassis; MBD-X11DPU-ZE+ CSE-219U2TS-R1K62P-T; Super X11DPU-ZE+ Motherboard 2U Chassis; Add-on Card / Module; AOC-2UR68-I4G-P; 2U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports, 1 internal PCI-E x8 3.0 slot, 1 PCI-E x16 3.0, and I PCI-E x8 3.0 (in x16 slot); Backplane; BPN-SAS3-216A-N4; 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices; Cable 1; CBL-0306L; CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,65CM,28AWG; Cable 2; CBL-PWEX-0673; 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH; Cable 3; CBL-SAST-0591; MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,75CM,75CM SB,30AWG; Cable 4; CBL-SAST-0655; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG; Cable 5; CBL-SAST-0657; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG; Air Shroud; MCP-310-82921-0N; Plastic air shroud for SC829U, 219U (X11 24DIMM, left side); Air Shroud; MCP-310-82922-0N; Plastic air shroud for SC829U, 219U (X11 24DIMM, right side); Riser Card; RSC-R1UW-E8R; 1U RHS WIO Riser card with one PCI-E x8 slot; Riser Card; RSC-R2UW-4E8; 2U LHS WIO Riser card with four PCI-E x4 slots; Heatsink / Retention; SNK-P0068PS; 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; * Power Supply; PWS-1K62A-1R; AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH; * Cable 6; CBL-0088L; 4 PIN MIDDLE FAN POWER CABLE (PWM). 27cm, 24AWG; * Cable 7; CBL-0160L; NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt); * Cable 8; CBL-0318L; CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,24CM,28AWG; * FAN 1; FAN-0158L4; 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH; * Drive Tray(s); MCP-220-00047-0B; Black gen 3rd hot-swap 2.5inch HDD tray; * Rail Set; MCP-290-00057-0N; Rail set, quick/quick, default for 4U 17.2"; W; * Rail Set; MCP-290-00060-0N; Threaded rail adapter default for round hole rack; * Air Shroud; MCP-310-81905-0B; Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH; * Front Panel; Front panel adaptor board (TB826) forSC826,213,216,219; * Rail Set; MCP-290-00115-0N; Inner rail, quick-release type; * Rail Set; MCP-290-00117-0N; Outer rail, quick-release type; Part Number; Description; Motherboard / Chassis; MBD-X11DPU-ZE+ CSE-219U2TS-R1K62P-T; Super X11DPU-ZE+ Motherboard 2U Chassis; Add-on Card / Module; AOC-2UR68-I4G-P; 2U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports, 1 internal PCI-E x8 3.0 slot, 1 PCI-E x16 3.0, and I PCI-E x8 3.0 (in x16 slot); Backplane; BPN-SAS3-216A-N4; 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices; Cable 1; CBL-0306L; CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,65CM,28AWG; Cable 2; CBL-PWEX-0673; 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH; Cable 3; CBL-SAST-0591; MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,75CM,75CM SB,30AWG; Cable 4; CBL-SAST-0655; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG; Cable 5; CBL-SAST-0657; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG; Air Shroud; MCP-310-82921-0N; Plastic air shroud for SC829U, 219U (X11 24DIMM, left side); Air Shroud; MCP-310-82922-0N; Plastic air shroud for SC829U, 219U (X11 24DIMM, right side); Riser Card; RSC-R1UW-E8R; 1U RHS WIO Riser card with one PCI-E x8 slot; Riser Card; RSC-R2UW-4E8; 2U LHS WIO Riser card with four PCI-E x4 slots; Heatsink / Retention; SNK-P0068PS; 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; * Power Supply; PWS-1K62A-1R; AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH; * Cable 6; CBL-0088L; 4 PIN MIDDLE FAN POWER CABLE (PWM). 27cm, 24AWG; * Cable 7; CBL-0160L; NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt); * Cable 8; CBL-0318L; CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,24CM,28AWG; * FAN 1; FAN-0158L4; 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH; * Drive Tray(s); MCP-220-00047-0B; Black gen 3rd hot-swap 2.5inch HDD tray; * Rail Set; MCP-290-00057-0N; Rail set, quick/quick, default for 4U 17.2"; W; * Rail Set; MCP-290-00060-0N; Threaded rail adapter default for round hole rack; * Air Shroud; MCP-310-81905-0B; Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH; * Front Panel; Front panel adaptor board (TB826) forSC826,213,216,219; * Rail Set; MCP-290-00115-0N; Inner rail, quick-release type; * Rail Set; MCP-290-00117-0N; Outer rail, quick-release type |
| Optional Parts List | Part Number; Description; Optional Upgrade for 2U LHS WIO Riser; RSC-R2UW-2E8E16 Or RSC-W2-66; 2U LHS WIO Riser card with 1 PCI-E x16 double width + 2 PCI-E x8 slots 2U LHS WIO Riser card with 2 PCI-E x16 double width slots; Add-on card for internal M.2 NVMe; AOC-SLG3-2M2; Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules; 2U Ultra optional rear drive kit; MCP-240-82922-0N-OEM; Rear 2x2.5" HDDs riser bracket kit for SC829U/219U, tool-less; 2 Rear 2.5" Hot-swap SATA Drive Bays; MCP-240-82922-0N-OEM; Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U, tool-less; Storage Control Card and Cable for 4x Hybrid NVMe/SAS Drive Bays; AOC-S3008L-L8e & 2 CBL-SAST-0593 (1~3) AOC-S3008L-L8i & 2 CBL-SAST-0593 (1~3) AOC-S3108L-H8iR & 2 CBL-SAST-0593 (1~3) AOC-S3108L-H8iR-16DD & 2 CBL-SAST-0593 (1~3); Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 16 drives with expander - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile; Cable for 4 NVMe Hybrid Drive Bays; 2 CBL-SAST-0929 & 2 CBL-SAST-0972; OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG; 2.5" NVMe Drive Trays; MCP-220-00167-0B MCP-220-00127-0B; Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design) Black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock); 2 Internal M.2 slots (1 SATA, 1 NVMe); RSC-UMR-8 & CBL-SAST-0538 & MCP-120-82924-0N & MCP-310-21902-0N; 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE X8; Cable for internal M.2 SATA; CBL-SAST-0538; 29cm 30AWG SATA S-RA cable; Network Card(s); AOC-SGP-i2/4 AOC-STGN-i1S/i2S AOC-STGF-i2S AOC-STG-i4S AOC-STG-b4S AOC-STG-i2T AOC-STGS-i1/2T AOC-STG-i4T AOC-STG-i2 AOC-S25G-m2S AOC-S40G-i2Q More; - - - - - - - - - - - -; Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350 Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2 Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710 Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550 Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN Standard LP 2-port 40GbE controller, Intel Fortville XL710 AOC Compatibility Matrix; 2U Cable Management Arm; MCP-290-00128-0N & MCP-290-00127-0N; 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth); CacheVault(s); BTR-CV3108-U1; CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra; TPM security module; AOM-TPM-9670V; SPI capable TPM 2.0 with Infineon 9670 controller, Vertical form factor; TPM security module; AOM-TPM-9671V; SPI capable TPM 1.2 with Infineon 9670 controller, Vertical form factor; Intel VROC RAID Key; AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD; Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Optional Upgrade for 2U LHS WIO Riser; RSC-R2UW-2E8E16 Or RSC-W2-66; 2U LHS WIO Riser card with 1 PCI-E x16 double width + 2 PCI-E x8 slots 2U LHS WIO Riser card with 2 PCI-E x16 double width slots; Add-on card for internal M.2 NVMe; AOC-SLG3-2M2; Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules; 2U Ultra optional rear drive kit; MCP-240-82922-0N-OEM; Rear 2x2.5" HDDs riser bracket kit for SC829U/219U, tool-less; 2 Rear 2.5" Hot-swap SATA Drive Bays; MCP-240-82922-0N-OEM; Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U, tool-less; Storage Control Card and Cable for 4x Hybrid NVMe/SAS Drive Bays; AOC-S3008L-L8e & 2 CBL-SAST-0593 (1~3) AOC-S3008L-L8i & 2 CBL-SAST-0593 (1~3) AOC-S3108L-H8iR & 2 CBL-SAST-0593 (1~3) AOC-S3108L-H8iR-16DD & 2 CBL-SAST-0593 (1~3); Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 16 drives with expander - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile; Cable for 4 NVMe Hybrid Drive Bays; 2 CBL-SAST-0929 & 2 CBL-SAST-0972; OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG; 2.5" NVMe Drive Trays; MCP-220-00167-0B MCP-220-00127-0B; Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design) Black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock); 2 Internal M.2 slots (1 SATA, 1 NVMe); RSC-UMR-8 & CBL-SAST-0538 & MCP-120-82924-0N & MCP-310-21902-0N; 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE X8; Cable for internal M.2 SATA; CBL-SAST-0538; 29cm 30AWG SATA S-RA cable; Network Card(s); AOC-SGP-i2/4 AOC-STGN-i1S/i2S AOC-STGF-i2S AOC-STG-i4S AOC-STG-b4S AOC-STG-i2T AOC-STGS-i1/2T AOC-STG-i4T AOC-STG-i2 AOC-S25G-m2S AOC-S40G-i2Q More; - - - - - - - - - - - -; Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350 Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2 Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710 Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550 Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN Standard LP 2-port 40GbE controller, Intel Fortville XL710 AOC Compatibility Matrix; 2U Cable Management Arm; MCP-290-00128-0N & MCP-290-00127-0N; 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth); CacheVault(s); BTR-CV3108-U1; CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra; TPM security module; AOM-TPM-9670V; SPI capable TPM 2.0 with Infineon 9670 controller, Vertical form factor; TPM security module; AOM-TPM-9671V; SPI capable TPM 1.2 with Infineon 9670 controller, Vertical form factor; Intel VROC RAID Key; AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD; Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Optional Upgrade for 2U LHS WIO Riser; RSC-R2UW-2E8E16 Or RSC-W2-66; 2U LHS WIO Riser card with 1 PCI-E x16 double width + 2 PCI-E x8 slots 2U LHS WIO Riser card with 2 PCI-E x16 double width slots; Add-on card for internal M.2 NVMe; AOC-SLG3-2M2; Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules; 2U Ultra optional rear drive kit; MCP-240-82922-0N-OEM; Rear 2x2.5" HDDs riser bracket kit for SC829U/219U, tool-less; 2 Rear 2.5" Hot-swap SATA Drive Bays; MCP-240-82922-0N-OEM; Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U, tool-less; Storage Control Card and Cable for 4x Hybrid NVMe/SAS Drive Bays; AOC-S3008L-L8e & 2 CBL-SAST-0593 (1~3) AOC-S3008L-L8i & 2 CBL-SAST-0593 (1~3) AOC-S3108L-H8iR & 2 CBL-SAST-0593 (1~3) AOC-S3108L-H8iR-16DD & 2 CBL-SAST-0593 (1~3); Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 16 drives with expander - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile; Cable for 4 NVMe Hybrid Drive Bays; 2 CBL-SAST-0929 & 2 CBL-SAST-0972; OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG; 2.5" NVMe Drive Trays; MCP-220-00167-0B MCP-220-00127-0B; Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design) Black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock); 2 Internal M.2 slots (1 SATA, 1 NVMe); RSC-UMR-8 & CBL-SAST-0538 & MCP-120-82924-0N & MCP-310-21902-0N; 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE X8; Cable for internal M.2 SATA; CBL-SAST-0538; 29cm 30AWG SATA S-RA cable; Network Card(s); AOC-SGP-i2/4 AOC-STGN-i1S/i2S AOC-STGF-i2S AOC-STG-i4S AOC-STG-b4S AOC-STG-i2T AOC-STGS-i1/2T AOC-STG-i4T AOC-STG-i2 AOC-S25G-m2S AOC-S40G-i2Q More; - - - - - - - - - - - -; Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350 Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2 Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710 Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550 Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN Standard LP 2-port 40GbE controller, Intel Fortville XL710 AOC Compatibility Matrix; 2U Cable Management Arm; MCP-290-00128-0N & MCP-290-00127-0N; 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth); CacheVault(s); BTR-CV3108-U1; CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra; TPM security module; AOM-TPM-9670V; SPI capable TPM 2.0 with Infineon 9670 controller, Vertical form factor; TPM security module; AOM-TPM-9671V; SPI capable TPM 1.2 with Infineon 9670 controller, Vertical form factor; Intel VROC RAID Key; AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD; Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Optional Upgrade for 2U LHS WIO Riser; RSC-R2UW-2E8E16 Or RSC-W2-66; 2U LHS WIO Riser card with 1 PCI-E x16 double width + 2 PCI-E x8 slots 2U LHS WIO Riser card with 2 PCI-E x16 double width slots; Add-on card for internal M.2 NVMe; AOC-SLG3-2M2; Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules; 2U Ultra optional rear drive kit; MCP-240-82922-0N-OEM; Rear 2x2.5" HDDs riser bracket kit for SC829U/219U, tool-less; 2 Rear 2.5" Hot-swap SATA Drive Bays; MCP-240-82922-0N-OEM; Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U, tool-less; Storage Control Card and Cable for 4x Hybrid NVMe/SAS Drive Bays; AOC-S3008L-L8e & 2 CBL-SAST-0593 (1~3) AOC-S3008L-L8i & 2 CBL-SAST-0593 (1~3) AOC-S3108L-H8iR & 2 CBL-SAST-0593 (1~3) AOC-S3108L-H8iR-16DD & 2 CBL-SAST-0593 (1~3); Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 16 drives with expander - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile; Cable for 4 NVMe Hybrid Drive Bays; 2 CBL-SAST-0929 & 2 CBL-SAST-0972; OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG; 2.5" NVMe Drive Trays; MCP-220-00167-0B MCP-220-00127-0B; Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design) Black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock); 2 Internal M.2 slots (1 SATA, 1 NVMe); RSC-UMR-8 & CBL-SAST-0538 & MCP-120-82924-0N & MCP-310-21902-0N; 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE X8; Cable for internal M.2 SATA; CBL-SAST-0538; 29cm 30AWG SATA S-RA cable; Network Card(s); AOC-SGP-i2/4 AOC-STGN-i1S/i2S AOC-STGF-i2S AOC-STG-i4S AOC-STG-b4S AOC-STG-i2T AOC-STGS-i1/2T AOC-STG-i4T AOC-STG-i2 AOC-S25G-m2S AOC-S40G-i2Q More; - - - - - - - - - - - -; Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350 Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2 Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710 Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550 Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN Standard LP 2-port 40GbE controller, Intel Fortville XL710 AOC Compatibility Matrix; 2U Cable Management Arm; MCP-290-00128-0N & MCP-290-00127-0N; 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth); CacheVault(s); BTR-CV3108-U1; CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra; TPM security module; AOM-TPM-9670V; SPI capable TPM 2.0 with Infineon 9670 controller, Vertical form factor; TPM security module; AOM-TPM-9671V; SPI capable TPM 1.2 with Infineon 9670 controller, Vertical form factor; Intel VROC RAID Key; AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD; Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license) |
| Management - Software | Intel® Node Manager Redfish API IPMI 2.0 KVM with dedicated LAN NMI SSM , SPM , SUM SuperDoctor® 5 |
| Management - Power Configurations | ACPI Power Management |
| Input Output - DOM | 2 Super DOM (Disk on Module) ports |
| On-Board Devices - Graphics | ASPEED AST2500 BMC |
| PC Health Monitoring - CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| Processor - Cores | Up to 28 Cores |
| System Memory - Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. |
| Operating Environment - RoHS | RoHS Compliant |
| Operating Environment - Environmental Spec | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| On-Board Devices - Network Connectivity | 4x 1GbE LAN ports via Intelî i350 (AOC-2UR68-i4G) |
| Input Output - Serial Port | 1 Serial header |
| Dimensions and Weight - Available Color | Black |

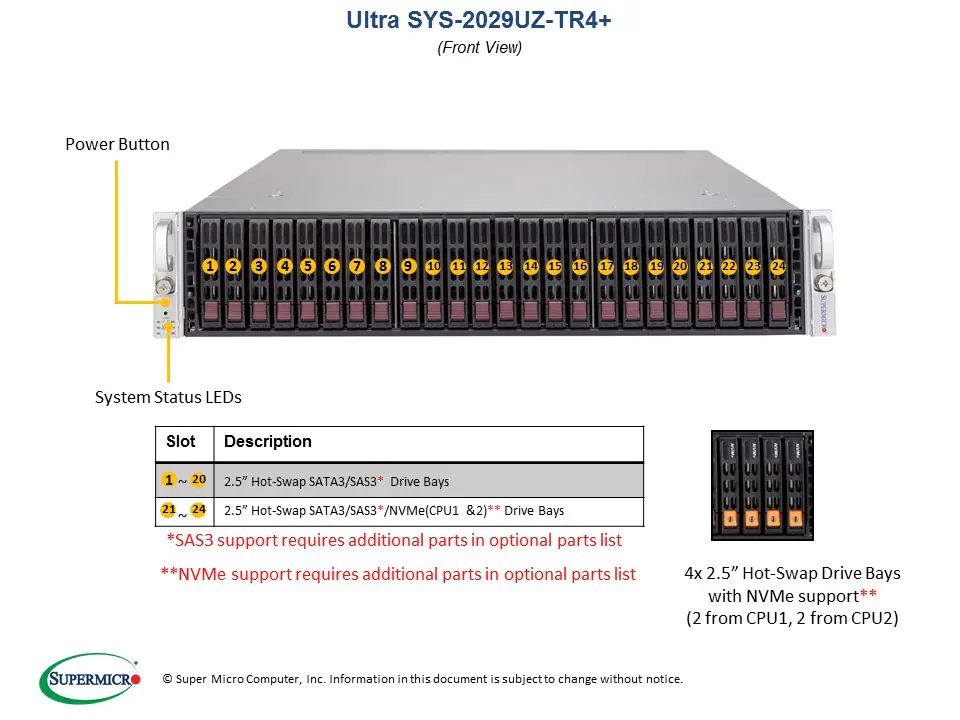

| Drive Bays Storage - Hot-swap | 24 Hot-swap 2.5" drive bays Optional 20 SAS3 + 4 SAS3/NVMe 2 Rear Hot-swap 2.5" drive bays |
| Drive Bays Storage - M2 | 1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list) 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2 |
| Power Supply - Total Output Power | 1600W/1000W |
| Power Supply - DimensionW x H x L | 73.5 x 40 x 203 mm |
| Power Supply - Input | 100-127Vac / 13 - 9A / 50-60Hz 200-240Vac / 10 - 8A / 50-60Hz |
| Power Supply - 12Vsb | Max: 2.1A / Min: 0A |
| Power Supply - Output Type | 25 Pairs Gold Finger Connector |
| Product SKUs - SYS-2029UZ-TR4 | SuperServer 2029UZ-TR4+ ( Black ) |
