SuperServer 4028GR-TR2
Арт. SYS-2048U-RTR4
Продается и поддерживается только в составе готовой системы
Нашли дешевле?
| Motherboard | Super X10QRH+; Super X10QRH+; Super X10QRH+; Super X10QRH+ |
| System Memory - Memory Capacity | 48x 288-pin DDR4 DIMM slots Up to 6TB ECC 3DS LRDIMM Up to 3TB ECC LRDIMM Up to 1.5TB ECC RDIMM |
| System Memory - Memory Type | 2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| System Memory - DIMM Sizes | RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB |
| System Memory - Memory Voltage | 1.2 V |
| System Memory - Error Detection | Corrects single-bit errors |
| On-Board Devices - Chipset | Intel® C612 chipset |
| On-Board Devices - SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| On-Board Devices - IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Input Output - SATA | 10 SATA3 (6Gbps) ports |
| Input Output - LAN | 4 RJ45 GbE LAN ports 1 RJ45 Dedicated IPMI LAN port |
| Input Output - USB | 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) 2 USB 2.0 ports (2 via header) |
| Input Output - Video | 1 VGA Connector |
| Input Output - Serial Port Header | 1 Serial header |
| PC Health Monitoring - Voltage | Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 5+1 Phase-switching voltage regulator |
| PC Health Monitoring - FAN | 8x 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring - Temperature | Support to monitor Supermicro AOC temperatures from IPMI or SD 5 Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors Thermal Monitor 2 (TM2) support PECI |
| PC Health Monitoring - LED | Memory DIMM ECC error LEDs CPU / System Overheat LED Suspend static indicator LED UID/Remote UID |
| PC Health Monitoring - Other Features | 4x 8-pin GPU power connectors Chassis intrusion detection Chassis intrusion header SDDC Support RoHS |
| Chassis - Form Factor | 2U Rackmount |
| Chassis - Model | CSE-218U-R1K02P |
| Dimensions and Weight - Height | 3.5" (89mm) |
| Dimensions and Weight - Width | 17.2" (437mm) |
| Dimensions and Weight - Depth | 30.7" (780mm) |
| Dimensions and Weight - Weight | Net Weight: 43 lbs (19.4 kg) Gross Weight: 69 lbs (31.2 kg) |
| Dimensions and Weight - Available Colors | Black |
| Front Panel - Buttons | Power On/Off button System Reset button |
| Front Panel - LEDs | Power status LED HDD activity LED Network activity LEDs System information (overheat/UID) LED |

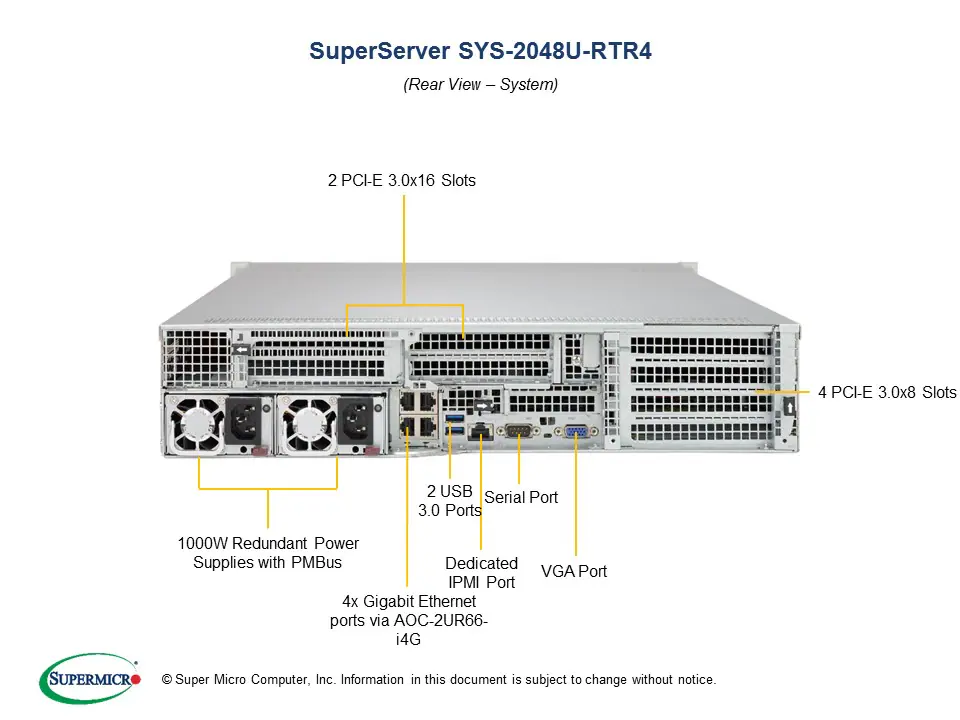

| Expansion Slots - PCI-Express | 9 PCI-E 3.0 x8 slots (include 4 PCI-E 3.0 x8 internal slots) 2 PCI-E 3.0 x16 slots (4 CPUs need to be installed for full access to PCI-E slots and onboard controllers. See AOC Support for details.) |

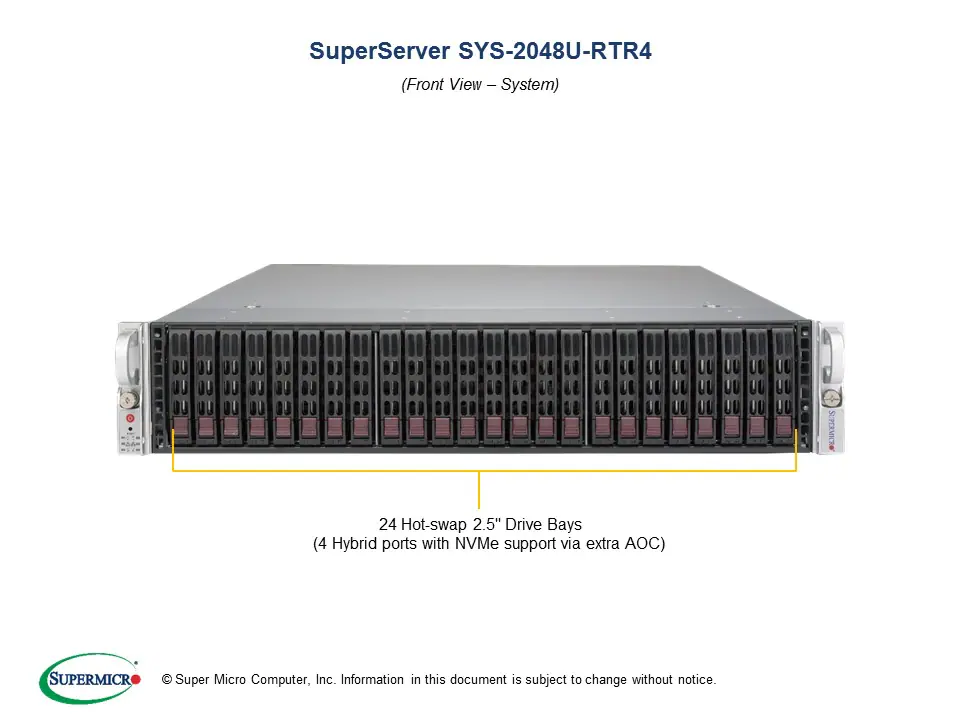

| Drive Bays - Hot-swap | 24x 2.5" Hot-swap drive bays Default 10 SATA3 ports (2 SATA3 ports for SATA DOM or internal HDD) Optional 24 SAS3 ports via AOC Optional 20 SAS3 ports via AOC + 4 NVMe ports via AOC Note: optional storage card is required to support more than 8 drives through backplane. |
| System Cooling - Fans | 4x 8cm heavy duty PWM fans |
| Power Supply | 1000W Redundant Power Supplies with PMBus; 1000W Redundant Power Supplies with PMBus; 1000W Redundant Power Supplies with PMBus; 1000W Redundant Power Supplies with PMBus |
| Power Supply - 12V | Max: 66.7A / Min: 0A (100-127Vac) Max: 83A / Min: 0A (200-240Vac) Max: 83A / Min: 0A (200-240Vdc) |
| Power Supply - Certification | Titanium Level [ Test Report ] |
| System BIOS - BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Operating Environment Compliance - RoHS | RoHS Compliant |
| Operating Environment Compliance - Environmental Spec | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Parts List - Items Included | Part Number; Description; Motherboard / Chassis; MBD-X10QRH+ CSE-218UTS-R1K02P; Super X10QRH+ Motherboard 2U Chassis; Add-on Card / Module; AOC-2UR66-I4G; 2U Ultra Riser with 4 GbE ports and 2 PCI-E x16 3.0, Intel i350; Air Shroud; MCP-310-21804-0B; Black Mylar air shroud for X10QRH+ in SC218U,HF,RoHS/REACH; Backplane; BPN-SAS3-216A-N4; 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices; Cable 1; CBL-SAST-0701; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,85CM,SB,30AWG,Ro; Cable 2; CBL-PWEX-0673; 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH; LBL-0108; CAUTION LABEL FOR REDUNDANT PWR SYSTEMS; Riser Card; RSC-R2UW-4E8; 2U LHS WIO Riser card with four PCI-E x4 slots; Riser Card; RSC-R1UW-E8R; 1U RHS WIO Riser card with one PCI-E x8 slot; Riser Card; RSC-S2-88; RSC-S2-88; Heatsink / Retention; SNK-P0047PS; 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB; Power Supply; PWS-1K02A-1R; 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH; Part Number; Description; Motherboard / Chassis; MBD-X10QRH+ CSE-218UTS-R1K02P; Super X10QRH+ Motherboard 2U Chassis; Add-on Card / Module; AOC-2UR66-I4G; 2U Ultra Riser with 4 GbE ports and 2 PCI-E x16 3.0, Intel i350; Air Shroud; MCP-310-21804-0B; Black Mylar air shroud for X10QRH+ in SC218U,HF,RoHS/REACH; Backplane; BPN-SAS3-216A-N4; 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices; Cable 1; CBL-SAST-0701; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,85CM,SB,30AWG,Ro; Cable 2; CBL-PWEX-0673; 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH; LBL-0108; CAUTION LABEL FOR REDUNDANT PWR SYSTEMS; Riser Card; RSC-R2UW-4E8; 2U LHS WIO Riser card with four PCI-E x4 slots; Riser Card; RSC-R1UW-E8R; 1U RHS WIO Riser card with one PCI-E x8 slot; Riser Card; RSC-S2-88; RSC-S2-88; Heatsink / Retention; SNK-P0047PS; 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB; Power Supply; PWS-1K02A-1R; 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH; Part Number; Description; Motherboard / Chassis; MBD-X10QRH+ CSE-218UTS-R1K02P; Super X10QRH+ Motherboard 2U Chassis; Add-on Card / Module; AOC-2UR66-I4G; 2U Ultra Riser with 4 GbE ports and 2 PCI-E x16 3.0, Intel i350; Air Shroud; MCP-310-21804-0B; Black Mylar air shroud for X10QRH+ in SC218U,HF,RoHS/REACH; Backplane; BPN-SAS3-216A-N4; 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices; Cable 1; CBL-SAST-0701; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,85CM,SB,30AWG,Ro; Cable 2; CBL-PWEX-0673; 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH; LBL-0108; CAUTION LABEL FOR REDUNDANT PWR SYSTEMS; Riser Card; RSC-R2UW-4E8; 2U LHS WIO Riser card with four PCI-E x4 slots; Riser Card; RSC-R1UW-E8R; 1U RHS WIO Riser card with one PCI-E x8 slot; Riser Card; RSC-S2-88; RSC-S2-88; Heatsink / Retention; SNK-P0047PS; 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB; Power Supply; PWS-1K02A-1R; 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH; Part Number; Description; Motherboard / Chassis; MBD-X10QRH+ CSE-218UTS-R1K02P; Super X10QRH+ Motherboard 2U Chassis; Add-on Card / Module; AOC-2UR66-I4G; 2U Ultra Riser with 4 GbE ports and 2 PCI-E x16 3.0, Intel i350; Air Shroud; MCP-310-21804-0B; Black Mylar air shroud for X10QRH+ in SC218U,HF,RoHS/REACH; Backplane; BPN-SAS3-216A-N4; 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices; Cable 1; CBL-SAST-0701; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,85CM,SB,30AWG,Ro; Cable 2; CBL-PWEX-0673; 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH; LBL-0108; CAUTION LABEL FOR REDUNDANT PWR SYSTEMS; Riser Card; RSC-R2UW-4E8; 2U LHS WIO Riser card with four PCI-E x4 slots; Riser Card; RSC-R1UW-E8R; 1U RHS WIO Riser card with one PCI-E x8 slot; Riser Card; RSC-S2-88; RSC-S2-88; Heatsink / Retention; SNK-P0047PS; 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB; Power Supply; PWS-1K02A-1R; 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH |
| Optional Parts List | Part Number; Description; 2000w power supply kit; MCP-250-21802-0N PWS-2K03P-1R; Power adapter bracket for 2K03P in SC218U,HF,RoHS/REACH 1U 2000W Redundant Power Supply Platinum 73.5mm width; CacheVault(s); BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02 & MCP-240-00127-0N; CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location; Network Card(s); AOC-S40G-i2Q AOC-SGP-i2 AOC-SGP-i4 AOC-STG-b4S AOC-STGN-i2S AOC-STGN-i1S AOC-STG-i2T; - - - - - - -; Standard LP 2-port 40GbE controller, based on Intel Fortville XL710 Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540; Storage Options; See Details; SAS3 and NVMe Options; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; 2000w power supply kit; MCP-250-21802-0N PWS-2K03P-1R; Power adapter bracket for 2K03P in SC218U,HF,RoHS/REACH 1U 2000W Redundant Power Supply Platinum 73.5mm width; CacheVault(s); BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02 & MCP-240-00127-0N; CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location; Network Card(s); AOC-S40G-i2Q AOC-SGP-i2 AOC-SGP-i4 AOC-STG-b4S AOC-STGN-i2S AOC-STGN-i1S AOC-STG-i2T; - - - - - - -; Standard LP 2-port 40GbE controller, based on Intel Fortville XL710 Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540; Storage Options; See Details; SAS3 and NVMe Options; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; 2000w power supply kit; MCP-250-21802-0N PWS-2K03P-1R; Power adapter bracket for 2K03P in SC218U,HF,RoHS/REACH 1U 2000W Redundant Power Supply Platinum 73.5mm width; CacheVault(s); BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02 & MCP-240-00127-0N; CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location; Network Card(s); AOC-S40G-i2Q AOC-SGP-i2 AOC-SGP-i4 AOC-STG-b4S AOC-STGN-i2S AOC-STGN-i1S AOC-STG-i2T; - - - - - - -; Standard LP 2-port 40GbE controller, based on Intel Fortville XL710 Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540; Storage Options; See Details; SAS3 and NVMe Options; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; 2000w power supply kit; MCP-250-21802-0N PWS-2K03P-1R; Power adapter bracket for 2K03P in SC218U,HF,RoHS/REACH 1U 2000W Redundant Power Supply Platinum 73.5mm width; CacheVault(s); BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 BTR-TFM8G-LSICVM02 & MCP-240-00127-0N; CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location; Network Card(s); AOC-S40G-i2Q AOC-SGP-i2 AOC-SGP-i4 AOC-STG-b4S AOC-STGN-i2S AOC-STGN-i1S AOC-STG-i2T; - - - - - - -; Standard LP 2-port 40GbE controller, based on Intel Fortville XL710 Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2 Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540; Storage Options; See Details; SAS3 and NVMe Options; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license) |

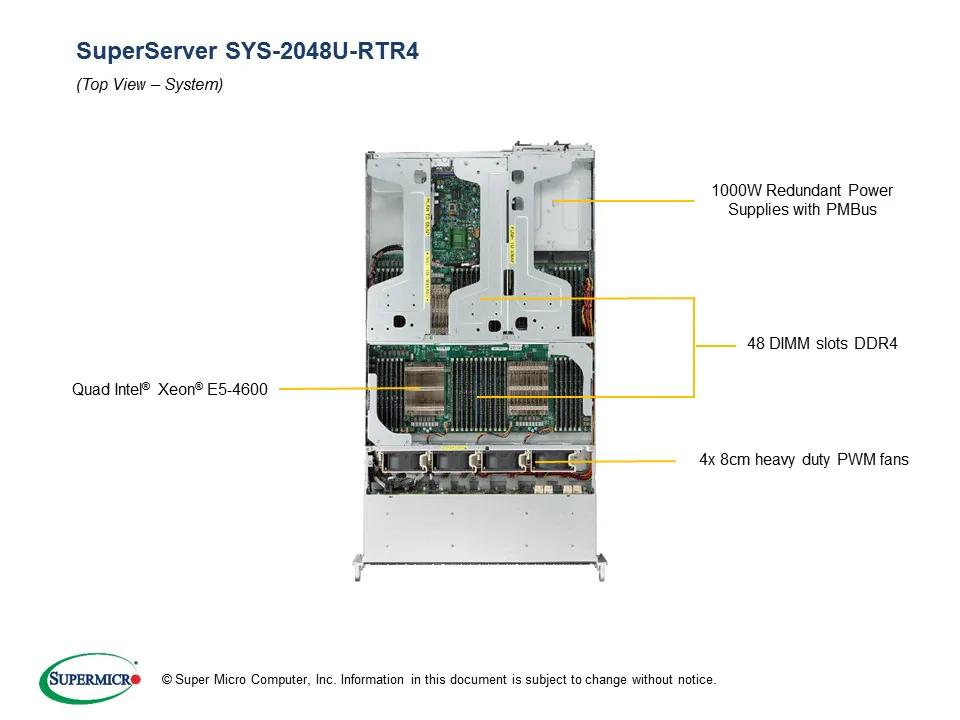

| ProcessorCache - CPU | Intel® Xeon® processor E5-4600 v4/v3 family (up to 135W TDP) * Quad Socket R3 (LGA 2011) |
| Input Output - SAS | 24 SAS3 ports support via optional Add-on Cards |
| System BIOS - BIOS Features | Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 |
| Management - Software | SuperDoctor® 5 Intel® Node Manager 3.0 Watch Dog NMI SUM and SSM Optional IPMI 1.5 / 2.0 |
| Management - Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| Input Output - DOM | 2 Super DOM (Disk on Module) ports |
| On-Board Devices - Graphics | ASPEED AST2400 BMC |
| On-Board Devices - Network Connectivity | 4x Gigabit Ethernet ports via AOC-2UR66-i4G; Other options |
| Input Output - NVMe | 4 Hybrid ports with NVMe support via AOC |
| Power Supply - Total Output Power | 800W: 100 – 127Vac 1000W: 200 – 240Vac 1000W: 200 – 240Vdc (for CCC only) |
| Power Supply - DimensionW x H x L | 73.5 x 40 x 203 mm |
| Power Supply - Input | 100-127Vac / 9.8 - 7A / 50-60Hz 200-240Vac / 7 - 5A / 50-60Hz 200-240Vdc / 7 - 5A (for CCC only) |
| Power Supply - 12Vsb | Max: 2.1A / Min: 0A |
| Power Supply - Output Type | 25 Pairs Gold Finger Connector |
| ProcessorCache - Cores Cache | Up to 22 Cores / Up to 55MB Cache |
| ProcessorCache - System Bus | QPI up to 9.6 GT/s |
| Product SKUs- Discontinued SKU EOL Please contact sales-rep for alternative options - SYS-2048U-RTR4 | SuperServer 2048U-RTR4 ( Black ) |
