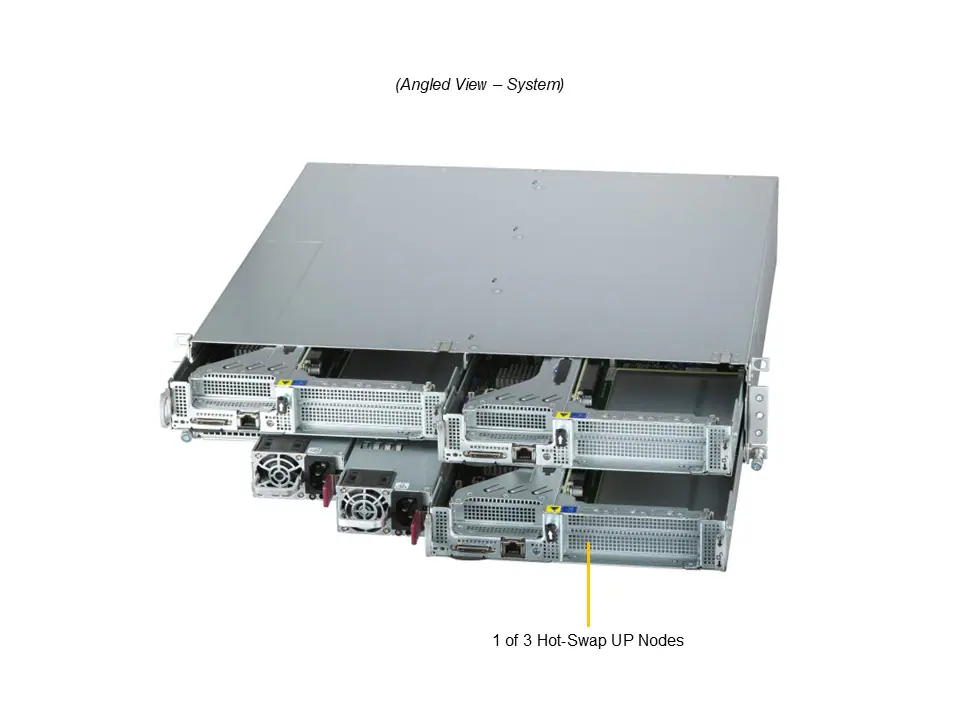

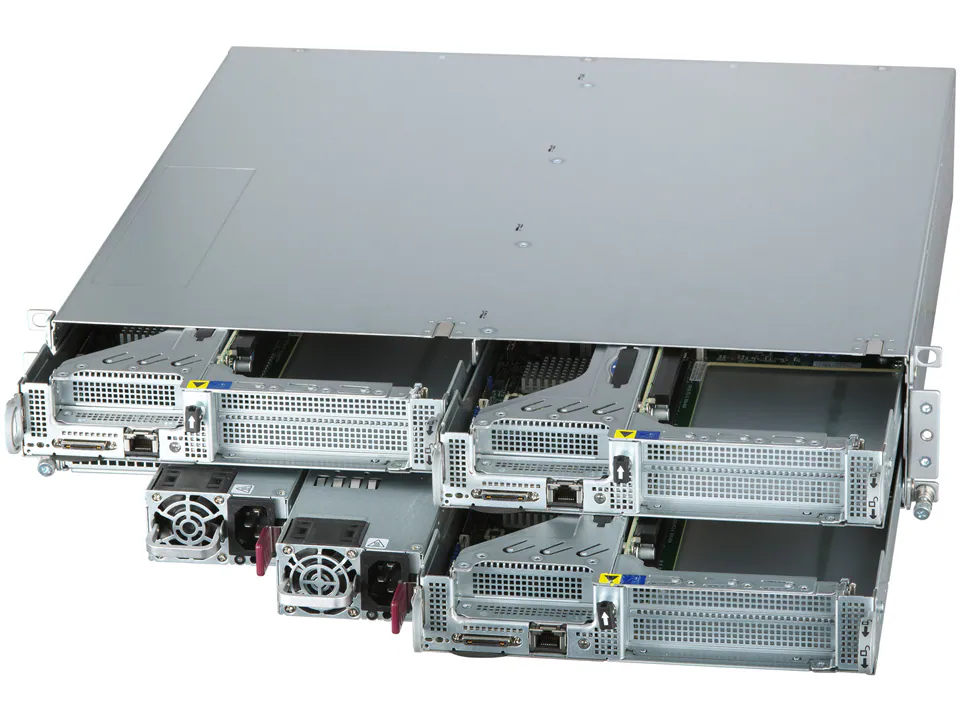

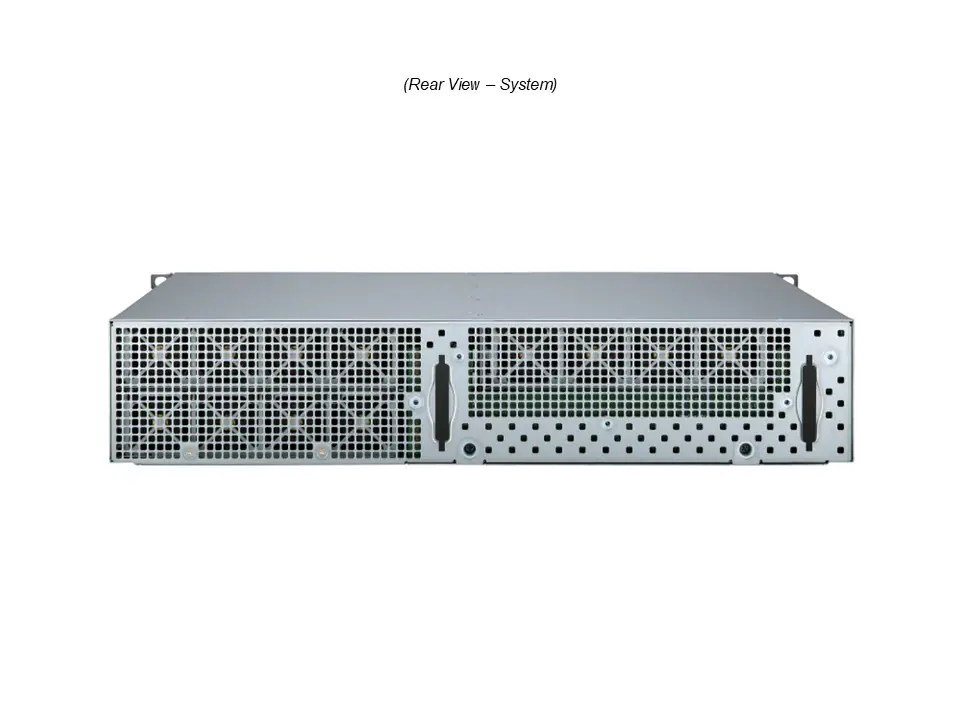

IoT SuperServer SYS-211SE-31AS
Арт. SYS-211SE-31AS

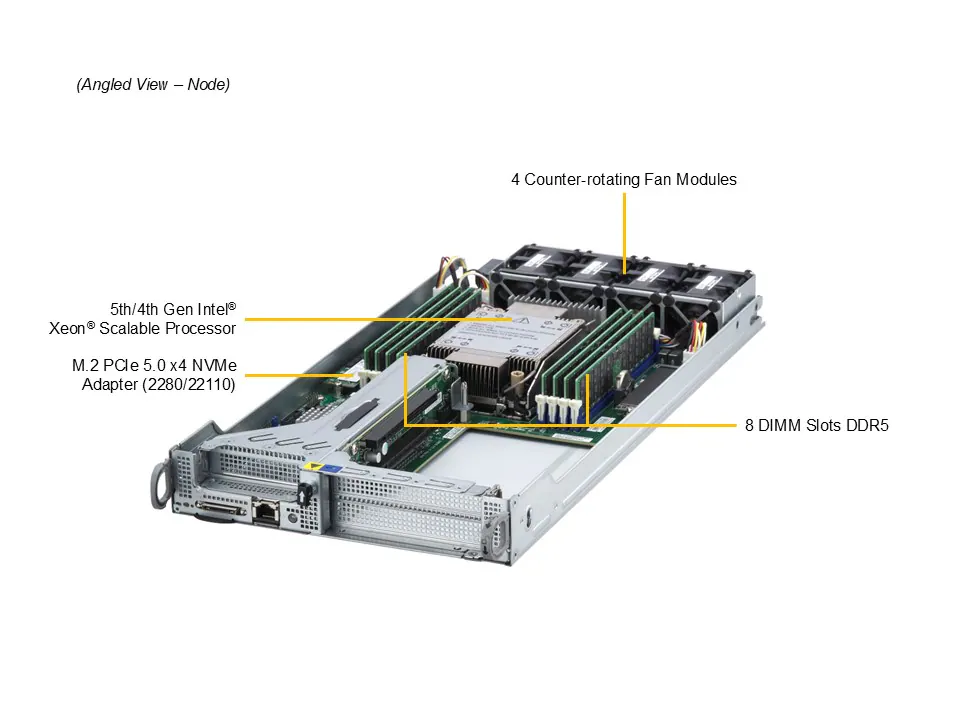

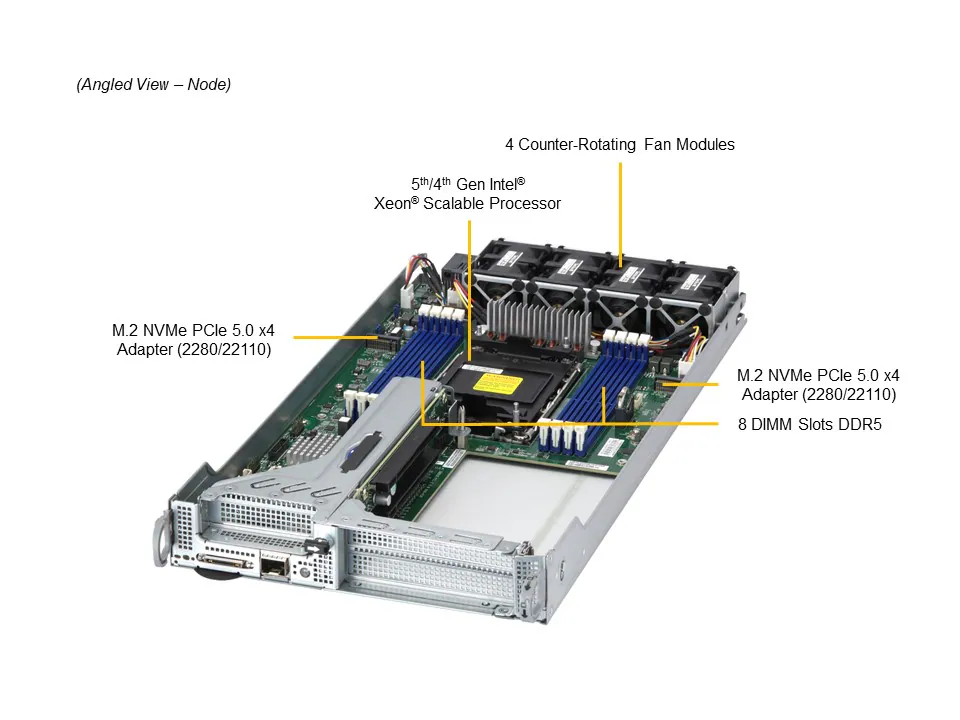

Single Socket E (LGA-4677) сервер, 8 DIMM с памятью до 2TB DDR5, 3 PCIe Gen5 слота.
Нашли дешевле?
| PC Health Monitoring - FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring - Temperature | Monitoring for CPU and chassis environment CPU thermal trip support, PEPI |
| Chassis - Form Factor | 2U Rackmount |
| Chassis - Model | CSE-SE201-R2K07P |
| Dimensions and Weight - Height | 3.5" (88 mm) |
| Dimensions and Weight - Width | 17.7" (449 mm) |
| Dimensions and Weight - Depth | 16.9" (430 mm) |
| Dimensions and Weight - Package | 9.5" (H) x 29.5" (W) x 23.2" (D) |
| Dimensions and Weight - Weight | Gross Weight: 70.6 lbs (32 kg) Net Weight: 55.1 lbs (25 kg) |
| Front Panel - Buttons | Power On/Off UID button |
| System Cooling - Fans | 12x 4cm heavy duty fans with optimal fan speed control 40x40x56mm Fan(s) |
| System BIOS - BIOS Type | AMI 256MB SPI Flash |
| Management - Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| PC Health Monitoring - CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| Operating Environment - Environmental Spec | Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Dimensions and Weight - Available Color | Silver |
| System Cooling - Air Shroud | 3 Air Shrouds |
| Input Output per Node - LAN | 1 SFP 1 GbE LAN port (Intel® I210-IS) (IPMI shared on LAN port 1) |
| Input Output per Node - Others | 1 KVM dongle (output 1x VGA/1x COM/2x USB 2.0 via KVM cable) port |
| Drive Bays Storage per Node - M2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110; VROC required for RAID) View M.2 Options |
| Processor per Node - CPU | Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors |
| Processor per Node - Note | Supports 85W - 300W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details. |

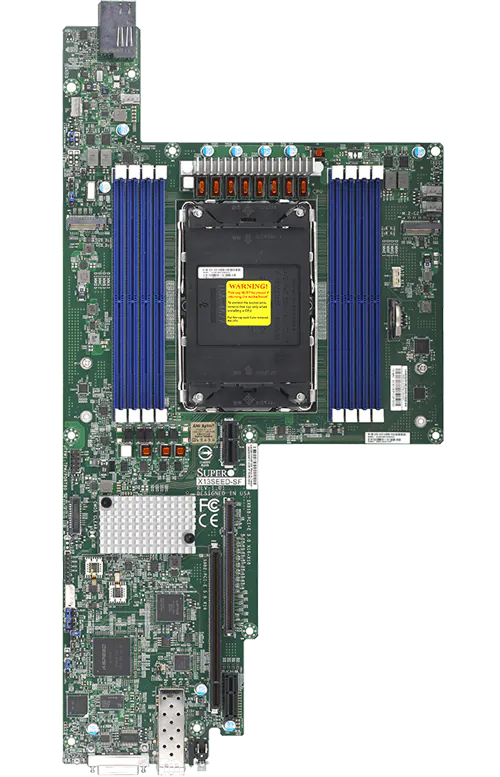

| On-Board Devices per Node - Chipset | Intel® C741 |
| Management - Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Front Panel - LED | LAN1 activity Power status System information |
| Operating Environment - ROHS | RoHS Compliant |
| Security - Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Security - Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| System Memory per Node - Memory Voltage | 1.1V |
| Input Output per Node - TPM | 1 TPM header |
| Processor per Node - Core Count | Up to 52C/104T; Up to 97.5MB Cache |
| System Memory per Node - Memory | Slot Count: 8 DIMM slots/1 Channels Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM View Memory Options |
| On-Board Devices per Node - Network Connectivity | 1 SFP 1GbE with Intel® I210-IS View AOC Options |

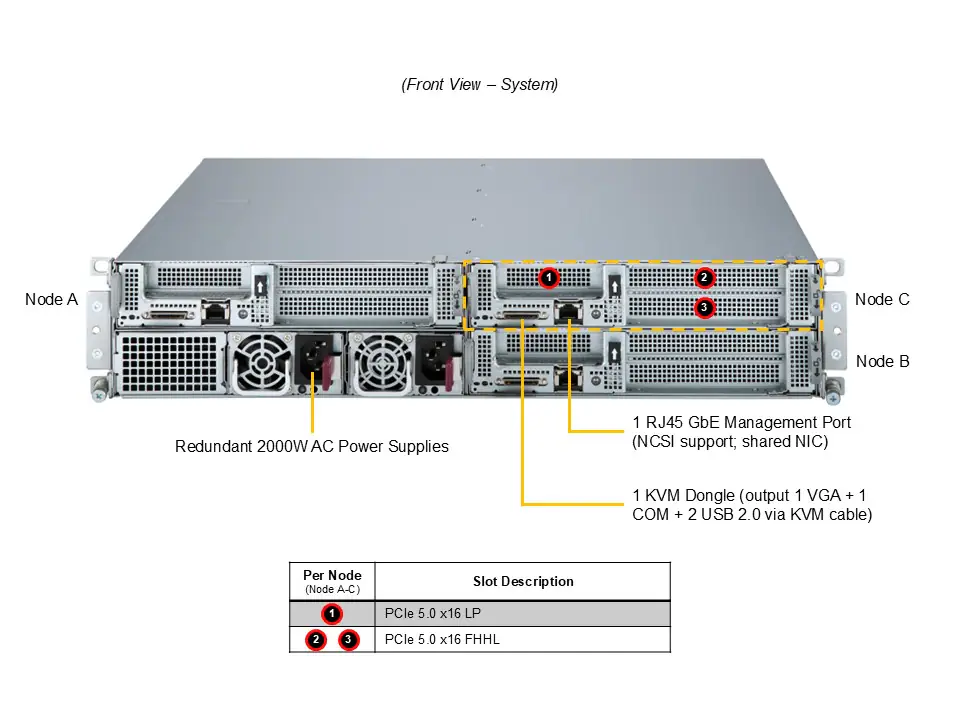

| Expansion Slots per Node - PCI-Express PCIe Configuration | Default 1 PCIe 5.0 x16 HHHL slot 2 PCIe 5.0 x16 FHHL slots View AOC Options |
