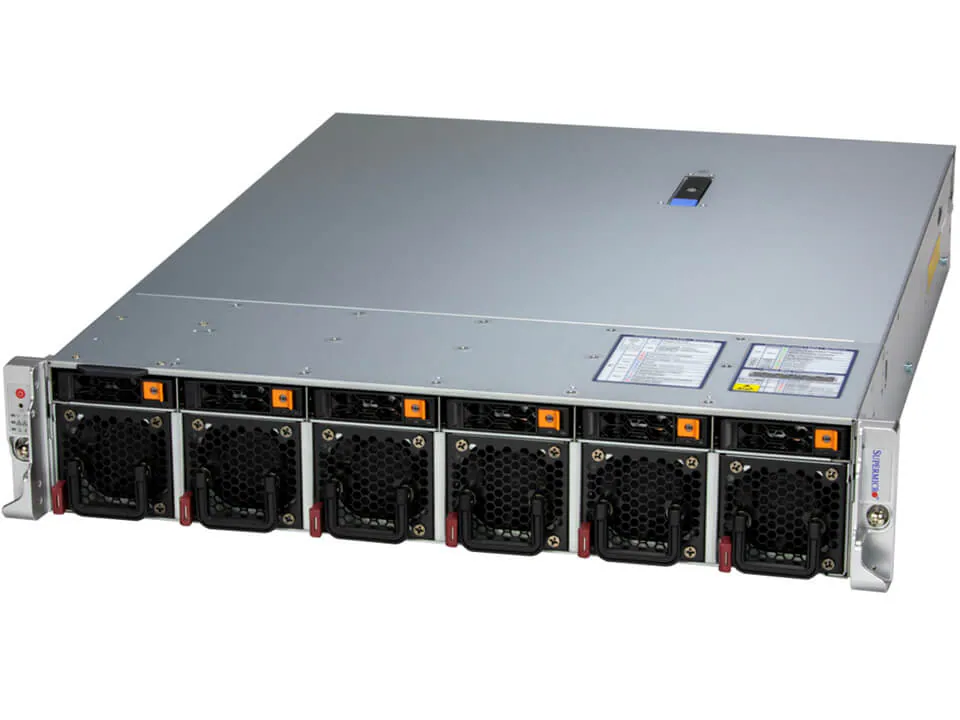

IoT SuperServer SYS-221HE-TNR
Арт. SYS-221HE-TNR
2U сервер с Dual Socket E (LGA-4677), память до 8TB DDR5-5600, 8 PCIe 5.0 слотов.
Нашли дешевле?
| Processor - CPU | Dual processor(s) |
| Processor - Note | Supports up to 350W TDP CPUs (Air Cooled) |
| System Memory - Memory Voltage | 1.1V |
| On-Board Devices - Chipset | Intel® C741 |
| On-Board Devices - SATA | SATA (6Gbps) ; RAID 0/1/5/10 support |
| Input Output - LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| Input Output - USB | 2 USB 2.0 ports(front) |
| Input Output - Video | 1 VGA port |
| PC Health Monitoring - FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring - Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis - Form Factor | 2U Rackmount |
| Chassis - Model | CSE-HE211-R000NFP |
| Dimensions and Weight - Height | 3.5" (88.9 mm) |
| Dimensions and Weight - Width | 17.2" (436.88 mm) |
| Dimensions and Weight - Depth | 22.6" (574 mm) |
| Dimensions and Weight - Package | 9.7" (H) x 23.5" (W) x 36.9" (D) |
| Dimensions and Weight - Weight | Gross Weight: 47.4 lbs (21.5 kg) Net Weight: 34.4 lbs (15.6 kg) |

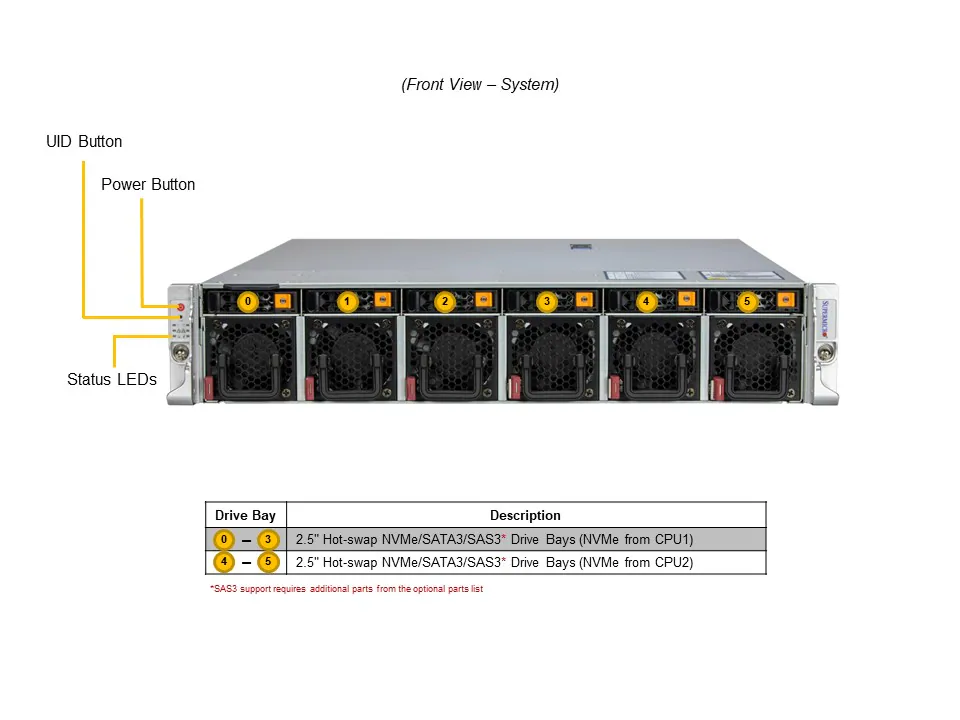

| Front Panel - Buttons | Power On/Off UID button |
| System Cooling - Fans | 6 Counter-rotating, Hot-swappable 6cm Fan(s) |
| System BIOS - BIOS Type | AMI 256MB SPI Flash |
| Management - Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| PC Health Monitoring - CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| Operating Environment - Environmental Spec | Operating Temperature: 0°C to 35°C (32°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| On-Board Devices - Network Connectivity | 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 QSFP28 100GbE with Broadcom® BCM57508 (optional) 2 QSFP28 100GbE with Intel® E810-CAM2 (optional) 2 QSFP28 100GbE (optional) 4 SFP+ 10GbE with Intel® X710-BM2 (optional) 2 QSFP56 200GbE (optional) 2 QSFP56 100GbE (optional) 2 RJ45 1GbE with Intel® I350-AM2 (optional) 4 SFP+ 10GbE with Intel® X710-TM4 (optional) 1 OSFP 400GbE with NVIDIA® ConnectX®-7 NDR (optional) 4 RJ45 10GbE with Intel® X550 (optional) View AIOM Options View AOC Options |
| Dimensions and Weight - Available Color | Silver |
| Drive Bays Storage - M2 | 2 M.2 NVMe/SATA slots (M-key 2280/22110) View M.2 Options |
| System Cooling - Air Shroud | 4 Air Shrouds |
| GPU - CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU - GPU-GPU Interconnect | PCIe |
| Processor - Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |

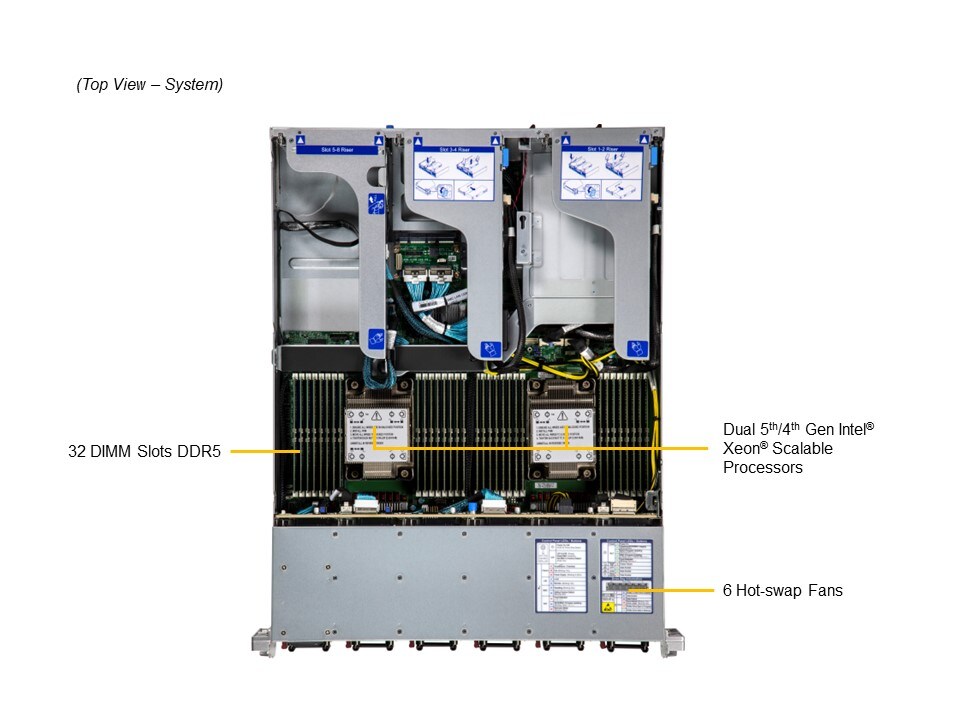

| System Memory - Memory | Slot Count: 32 DIMM slots/16 Channels Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM View Memory Options |
| Management - Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Front Panel - LED | HDD activity LED LAN1 activity LAN2 activity Power Fail Power status LED System information |
| GPU - Max GPU Count | Up to 3 double-width or 3 single-width GPUs |
| Security - Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |

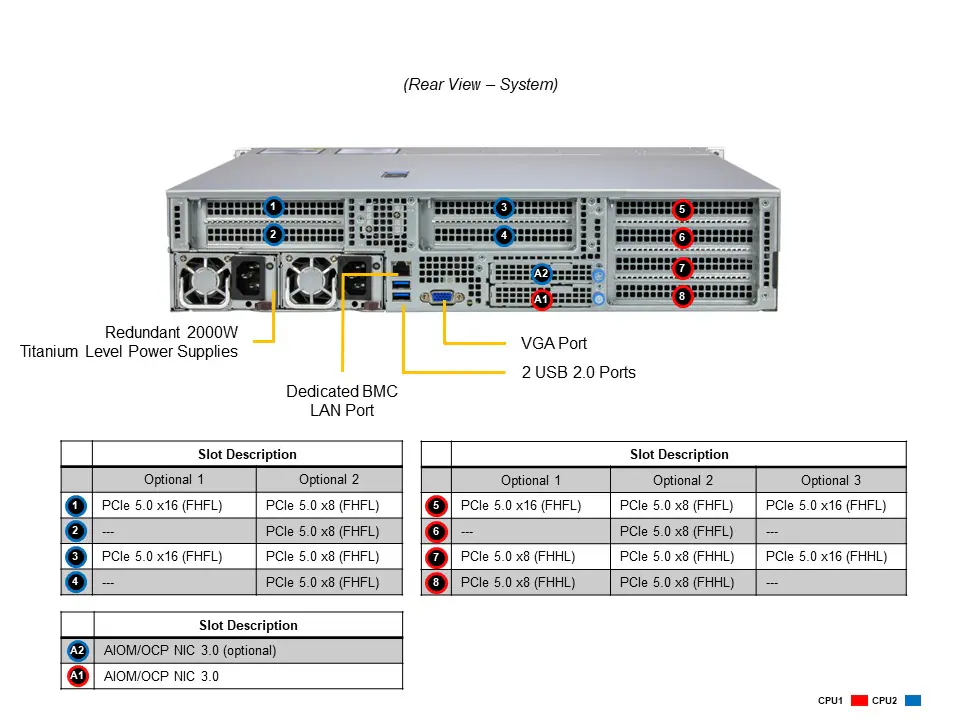

| Expansion Slots - PCI-Express PCIe Configuration | Option A* 3 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots 2 PCIe 5.0 x8 (in x16) FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option B* 3 PCIe 5.0 x16 FH/10.5"L slots 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option C 6 PCIe 5.0 x8 (in x16) FH/10.5"L slots 2 PCIe 5.0 x8 (in x16) FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.) View AOC Options |

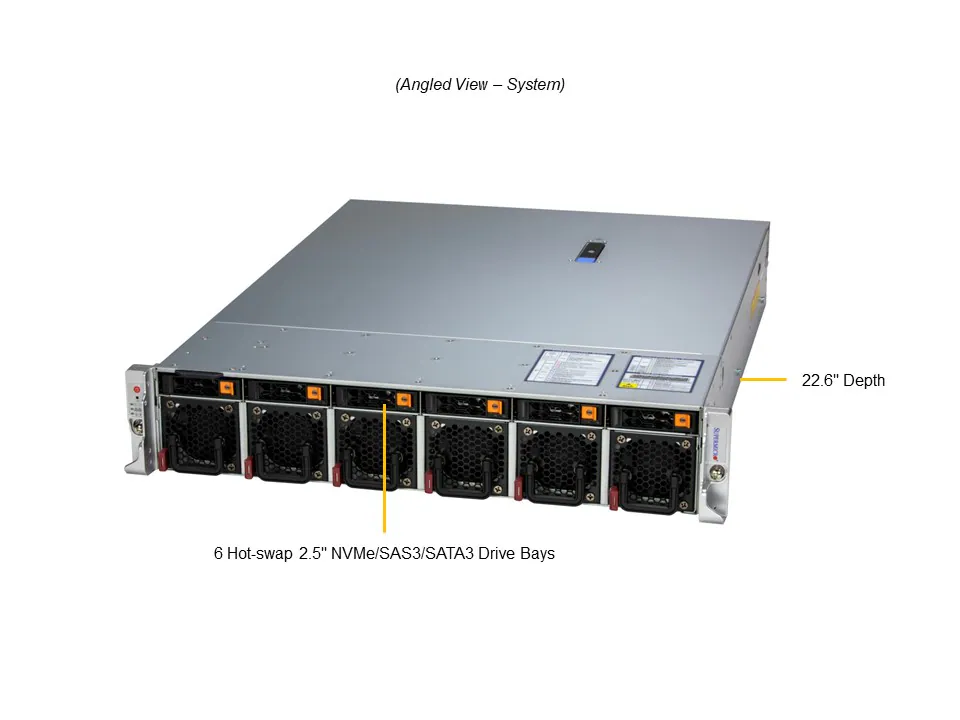

| Drive Bays Storage - Drive Bays Configuration | Default: Total 6 bays 6 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) View NVMe Options View Drive Options |
| GPU - Supported GPU | NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4000, A2 View GPU Options |
| Security - Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| On-Board Devices - NVMe | NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) View NVMe Options |
