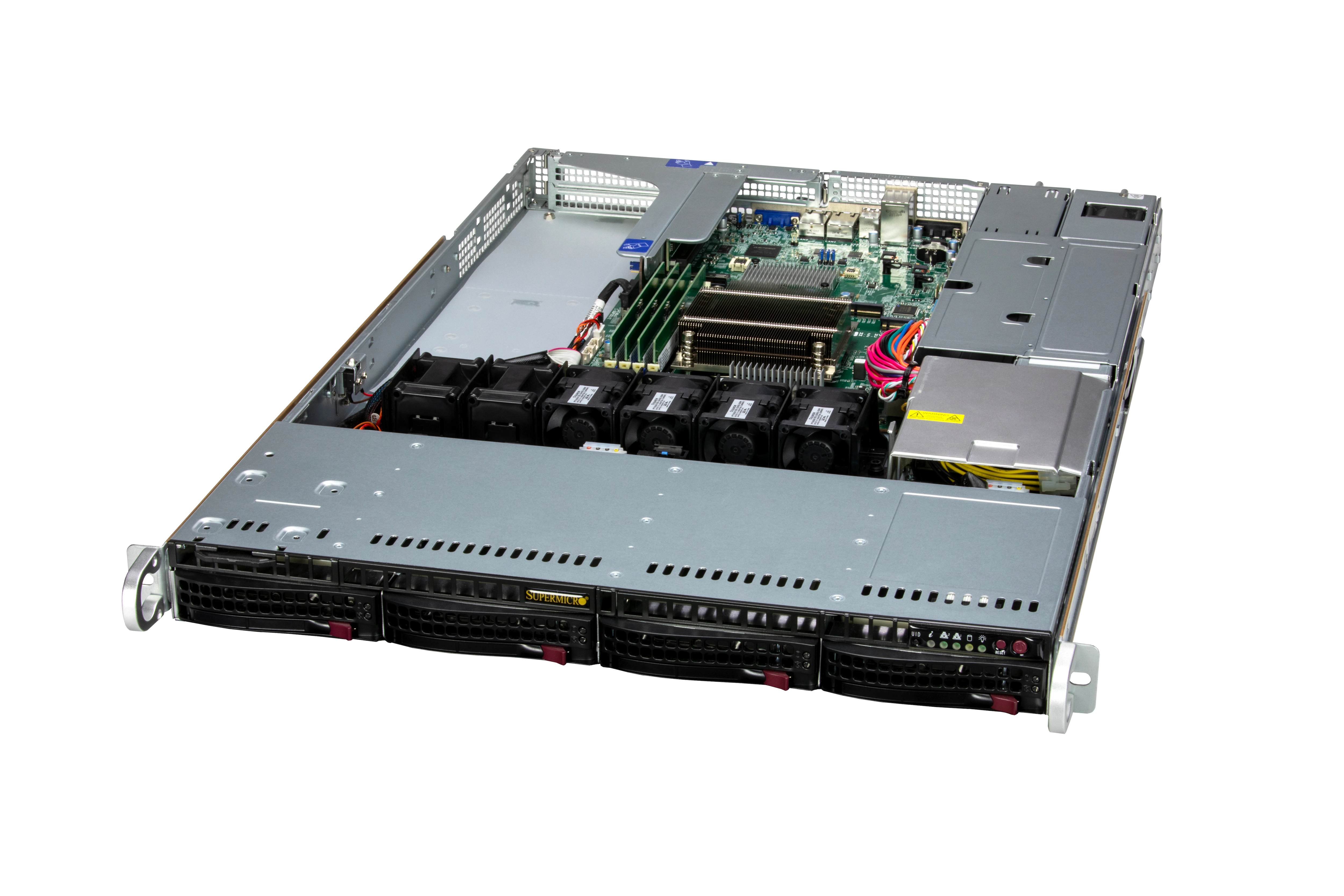

UP SuperServer SYS-511R-W
Арт. SYS-511R-W
1U сервер с Single Socket V0 (LGA-1700) для Intel Xeon 6300/ E-2400, память DDR5 до 128GB.
Нашли дешевле?
| Processor - CPU | Single V0 (LGA-1700) Intel® Xeon® 6300-series/E-2400/Pentium® G7400/G7400T processors |
| Processor - Note | Supports up to 95W TDP CPUs (Air Cooled) |
| System Memory - Memory Voltage | 1.1V |
| On-Board Devices - Chipset | Intel® C266 |
| On-Board Devices - SATA | SATA (6Gbps) ; RAID 0/1/5/10 support |
| Input Output - LAN | 2 RJ45 1 GbE LAN ports 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) |
| Input Output - USB | 4 USB 2.0 ports(header) 2 USB 2.0 Type-A ports(rear) 2 USB 3.2 Gen1 ports(Header) 1 USB 3.2 Gen2 Type-A port(Header) 2 USB 3.2 Gen2 Type-A ports(Rear) |
| Input Output - Video | 1 VGA port |
| PC Health Monitoring - FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring - Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis - Form Factor | 1U |
| Chassis - Model | CSE-815BTS-R000WNP |
| Dimensions and Weight - Height | 1.7" (43 mm) |
| Dimensions and Weight - Width | 17.2" (437 mm) |
| Dimensions and Weight - Depth | 25.6" (650 mm) |
| Dimensions and Weight - Package | 8.5" (H) x 23.5" (W) x 33.7" (D) |
| Dimensions and Weight - Weight | Gross Weight: 34.5 lbs (15.46 kg) Net Weight: 21.5 lbs (9.75 kg) |
| Front Panel - Buttons | Power On/Off button System Reset button Unit Identification (UID) button |
| System Cooling - Fans | 2 AOC cooling Fan(s) (optional) 4 counter-rotation PWM 40x40x56mm Fan(s) |
| System BIOS - BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management - Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Input Output - TPM | 1 TPM header |
| PC Health Monitoring - CPU | Monitors for CPU Cores, Chipset Voltages, Memory 6 + 1 Phase-switching voltage regulator |
| Operating Environment - Environmental Spec | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| On-Board Devices - Network Connectivity | 2 RJ45 1GbE with Intel® I210 View AOC Options |
| Dimensions and Weight - Available Color | Black |
| Drive Bays Storage - M2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110) View M.2 Options |
| System Cooling - Air Shroud | 1 Air Shroud |
| GPU - CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Drive Bays Storage - Peripheral Bays | 2 2.5" bays (optional) |
| Processor - Core Count | Up to 8C/16T; Up to 24MB Cache |
| System Memory - Memory | Slot Count: 4 DIMM slots/2 Channels Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM View Memory Options |
| Input Output - Serial | 1 COM port(Rear) 1 COM port(Header) |
| Management - Power configurations | ACPI/APM Power Management |
| Front Panel - LED | Fan Fail/System Over Heat LED HDD activity LED Network Activity LEDs Power status LED Unit Identification (UID) LED |
| GPU - Max GPU Count | Up to 1 double-width or 1 single-width GPU |
| Security - Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Expansion Slots - PCI-Express PCIe Configuration | Default 2 PCIe 5.0 x8 FHFL slots 1 PCIe 4.0 x4 (in x16) LP slot Option A 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 4.0 x4 (in x16) LP slot View AOC Options |
| Drive Bays Storage - Drive Bays Configuration | Default: Total 4 bays 4 front hot-swap 3.5" SAS*/SATA drive bays Option A: Total 4 bays 2 front hot-swap 3.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays 2 front hot-swap 3.5" SAS*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) View Drive Options |
| GPU - Supported GPU | NVIDIA PCIe: L40, T1000, RTX A2000, L4 View GPU Options |
| Security - Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
