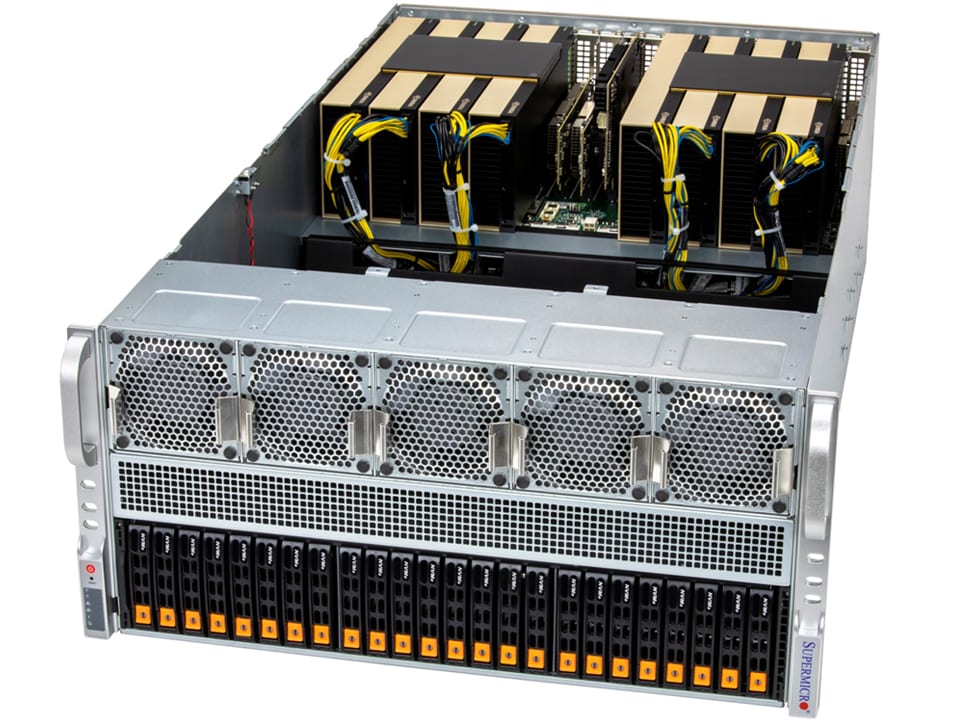

GPU SuperServer SYS-522GA-NRT
Арт. SYS-522GA-NRT
Сервер с Dual Socket P (LGA-7529) Intel® Xeon® 6900 series, память DDR5 до 4800 МГц, 24 слота DIMM.
Нашли дешевле?
| Processor - CPU | Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores |
| Processor - Note | Supports up to 500W TDP CPUs (Air Cooled) |
| System Memory - Memory Voltage | 1.1V |
| On-Board Devices - Chipset | System on Chip |
| Input Output - LAN | 2 RJ45 10 GbE LAN ports (Intel® I350) |
| Input Output - USB | 2 USB 3.0 Type-A ports(Rear) |
| Input Output - Video | 1 VGA port |
| PC Health Monitoring - FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring - Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis - Form Factor | 5U Rackmount |
| Chassis - Model | CSE-528G2TS-R9K60P |
| Dimensions and Weight - Height | 8.75" (222.5 mm) |
| Dimensions and Weight - Width | 17.2" (437 mm) |
| Dimensions and Weight - Depth | 29" (737 mm) |
| Dimensions and Weight - Package | 17.32" (H) x 28.34" (W) x 42.51" (D) |
| Dimensions and Weight - Weight | Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg) |
| Front Panel - Buttons | Power On/Off button System Reset button |
| Expansion Slots - M2 | 2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key) |
| System Cooling - Fans | 10 heavy duty fans with optimal fan speed control |
| System BIOS - BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management - Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| PC Health Monitoring - CPU | Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator |
| Operating Environment - Environmental Spec | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| On-Board Devices - Network Connectivity | 2 RJ45 10GbE with Intel® X710-AT2 View AIOM Options View AOC Options |
| Dimensions and Weight - Available Color | Black Front & Silver Body |
| Drive Bays Storage - M2 | 2 M.2 NVMe slots (M-key) View M.2 Options |
| System Cooling - Air Shroud | 1 Air Shroud |
| GPU - CPU-GPU Interconnect | PCIe 5.0 x16 Switch Dual-Root |
| GPU - GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional) |
| Processor - Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
| System Memory - Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM View Memory Options |
| Management - Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Front Panel - LED | Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED |
| GPU - Max GPU Count | Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs |
| Security - Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |

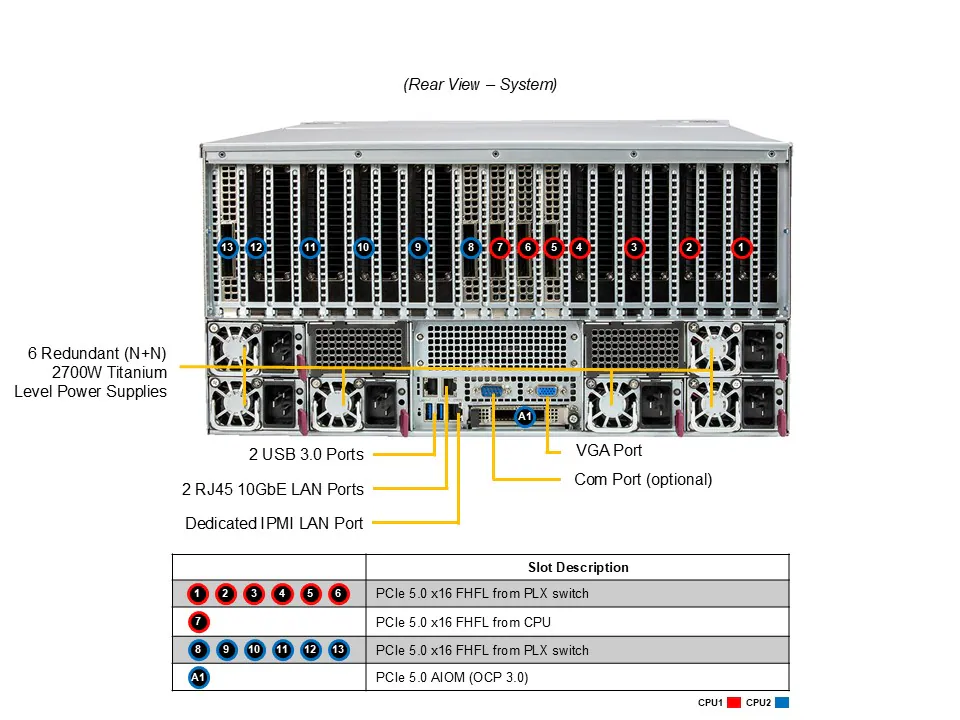

| Expansion Slots - PCI-Express PCIe Configuration | Default 13 PCIe 5.0 x16 FHFL slots View AOC Options |

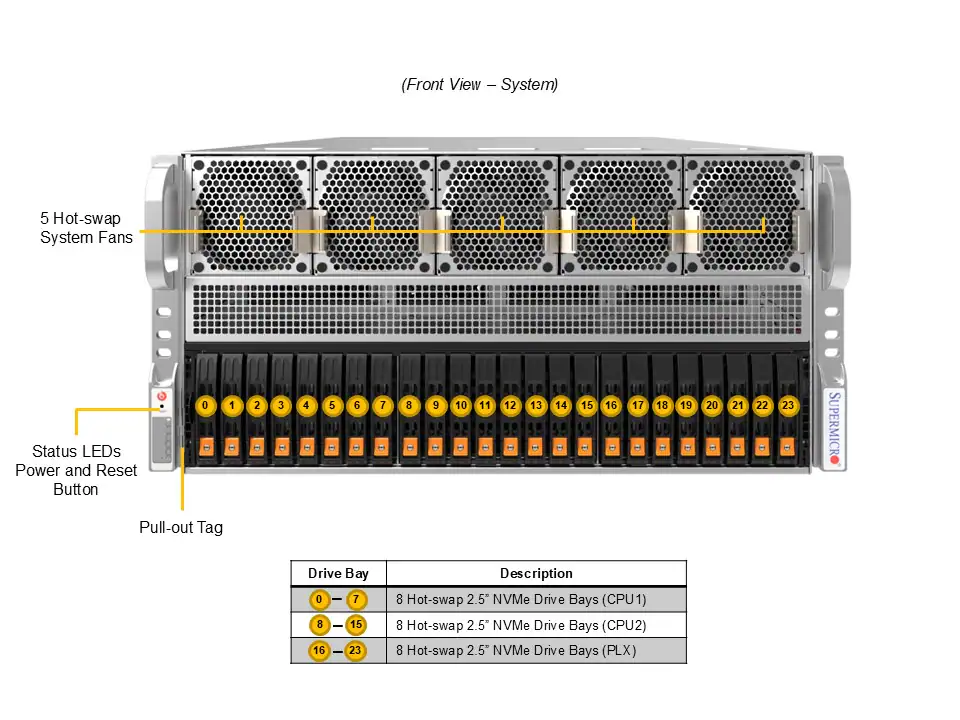

| Drive Bays Storage - Drive Bays Configuration | Default: Total 24 bays 24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays View NVMe Options |
| GPU - Supported GPU | NVIDIA PCIe: H100 NVL, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB), L40S, L4 View GPU Options |
| Security - Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
