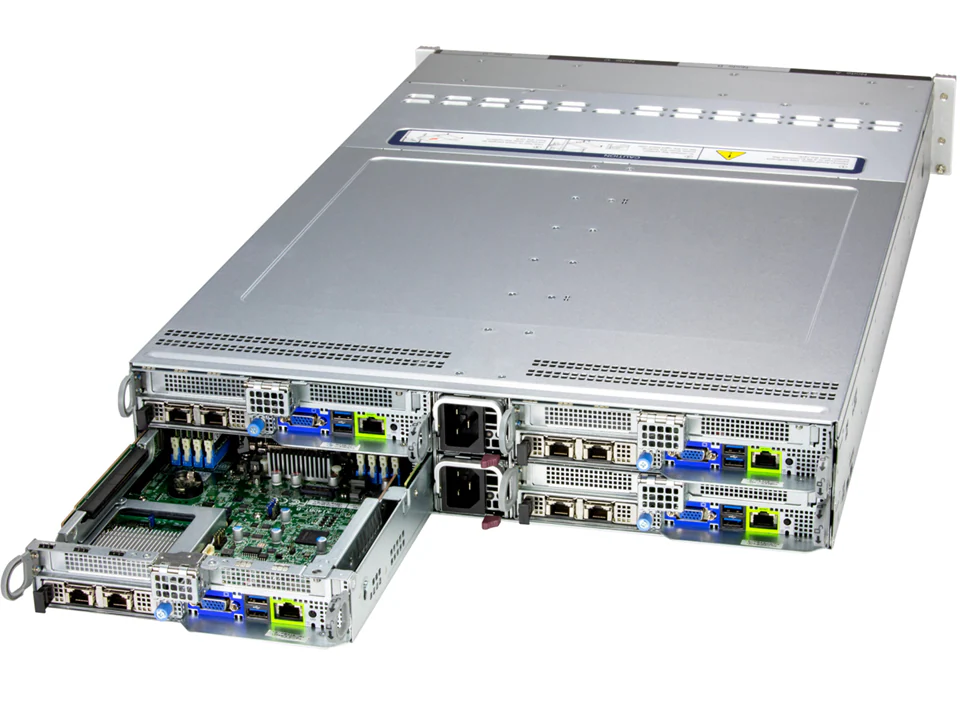

BigTwin SuperServer SYS-622BT-HNC8R
Арт. SYS-622BT-HNC8R
Rackmount система с Dual Socket E2, память DDR5 до 4TB, форм-фактор 2U.
Нашли дешевле?
| PC Health Monitoring - FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring - Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis - Form Factor | 2U Rackmount |
| Chassis - Model | CSE-827BQ2-R3K60P |
| Dimensions and Weight - Height | 3.47" (88 mm) |
| Dimensions and Weight - Width | 17.68" (449 mm) |
| Dimensions and Weight - Depth | 30.5" (774 mm) |
| Dimensions and Weight - Package | 9.76" (H) x 24.65" (W) x 45.28" (D) |
| Dimensions and Weight - Weight | Gross Weight: 96.6 lbs (43.8 kg) Net Weight: 66.1 lbs (30 kg) |
| Front Panel - Buttons | Power On/Off button UID button |
| System Cooling - Fans | 4x 14.9K RPM Heavy Duty 80x80x38mm Fan(s) |
| System BIOS - BIOS Type | AMI 32MB SPI Flash |
| Management - Software | SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| PC Health Monitoring - CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| Operating Environment - Environmental Spec | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Dimensions and Weight - Available Color | Black front & silver body |
| System Cooling - Air Shroud | 2 Air Shrouds |
| Input Output per Node - LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| Input Output per Node - USB | 2 USB 3.0 Type-A ports(Rear) |
| Input Output per Node - Video | 1 VGA port |
| Drive Bays Storage per Node - M2 | 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110; VROC required for RAID) View M.2 Options |

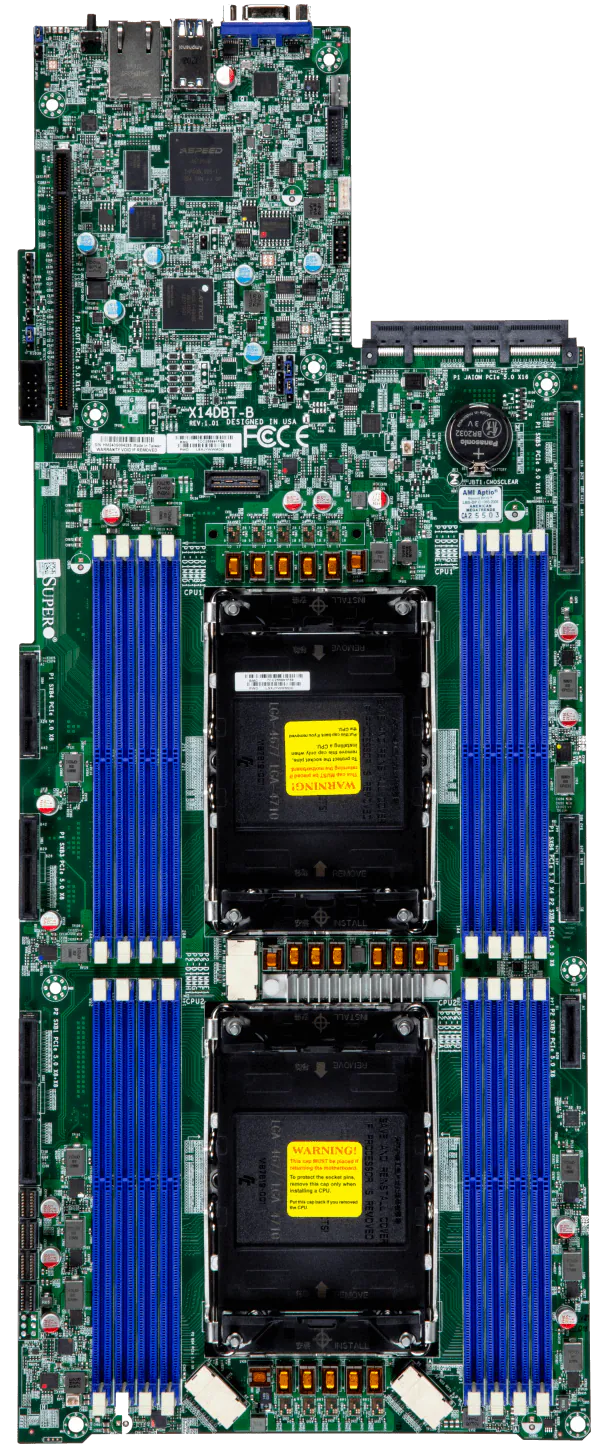

| Processor per Node - CPU | Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Processor per Node - Note | Supports up to 205W TDP CPUs (Air Cooled)* Supports up to 350W TDP CPUs (Liquid Cooled) *Air Cooled CPUs with TDP over 150W only supported under specific conditions. Contact a Supermicro representative for details. |
| On-Board Devices per Node - Chipset | System on Chip |
| On-Board Devices per Node - SAS | SAS (12Gbps) via Broadcom® 3808; (IT mode) |
| Management - Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| Front Panel - LED | HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED |
| Security - Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| System Cooling - Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Security - Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| System Memory per Node - Memory Voltage | 1.1V |
| Processor per Node - Core Count | P-cores: Up to 128C/256T; Up to 108MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU |
| System Memory per Node - Memory | Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM View Memory Options |
| On-Board Devices per Node - Network Connectivity | Via AIOM View AIOM Options View AOC Options |
| Expansion Slots per Node - PCI-Express PCIe Configuration | Default 2 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) View AOC Options |
| Drive Bays Storage per Node - Drive Bays Configuration | Default: Total 3 bays 2 front hot-swap 3.5" PCIe 5.0 NVMe/SAS drive bays 1 front hot-swap 3.5" PCIe 4.0 NVMe/SAS drive bay Option A: Total 3 bays 2 front hot-swap 3.5" PCIe 5.0 NVMe/SAS drive bays 1 front hot-swap 3.5" SAS drive bay View NVMe Options View Drive Options |
