GPU A+ Server AS -4125GS-TNRT1
Арт. AS -4125GS-TNHR2-LCC
4U система на базе AMD EPYC 9004/9005, 6TB DDR5, 8x PCIe 5.0, 4x 5250W PSU, 8x NVIDIA GPU, 8x NVMe, 8x NIC.
Нашли дешевле?
| Processor - CPU | Dual processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x) |
| Processor - Note | Supports up to 400W TDP CPUs (Liquid Cooled) * This system supports AMD EPYC™ 9004/9005 Series processors up to 400W TDP |
| System Memory - Memory Voltage | 1.1V |
| On-Board Devices - Chipset | AMD SP5 |
| Input Output - LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| Input Output - USB | 2 USB 3.0 Type-A ports(Rear) |
| Input Output - Video | 1 VGA port |
| PC Health Monitoring - FAN | Fans with tachometer monitoring Status monitor for speed control |
| PC Health Monitoring - Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis - Form Factor | 4U Rackmount |
| Chassis - Model | CSE-GP401TS-R000NP |
| Dimensions and Weight - Height | 6.85" (174 mm) |
| Dimensions and Weight - Width | 17.6" (449 mm) |
| Dimensions and Weight - Depth | 33.2" (842 mm) |
| Dimensions and Weight - Package | 16.14" (H) x 50.39" (W) x 28.7" (D) |
| Dimensions and Weight - Weight | Gross Weight: 138.89 lbs (63 kg) Net Weight: 80.03 lbs (53 kg) |
| Front Panel - Buttons | UID button |
| System Cooling - Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| System BIOS - BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management - Software | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| PC Health Monitoring - CPU | Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator |
| Operating Environment - Environmental Spec | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| On-Board Devices - Network Connectivity | View AOC Options |
| Dimensions and Weight - Available Color | Silver |
| Drive Bays Storage - M2 | 1 M.2 NVMe slot (M-key) View M.2 Options |
| GPU - CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU - GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| Processor - Core Count | Up to 128C/256T |
| System Memory - Memory | Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) View Memory Options |
| Management - Power configurations | Power-on mode for AC power recovery ACPI Power Management |
| GPU - Max GPU Count | 8 onboard GPUs |
| Security - Hardware | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Expansion Slots - PCI-Express PCIe Configuration | Default 8 PCIe 5.0 x16 (in x16) LP slots 2 PCIe 5.0 x16 (in x16) FHHL slots Option A* 8 PCIe 5.0 x16 (in x16) LP slots 4 PCIe 5.0 x16 (in x16) FHHL slots (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.) View AOC Options |
| Drive Bays Storage - Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap 2.5" NVMe drive bays View Drive Options |
| GPU - Supported GPU | NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) View GPU Options |

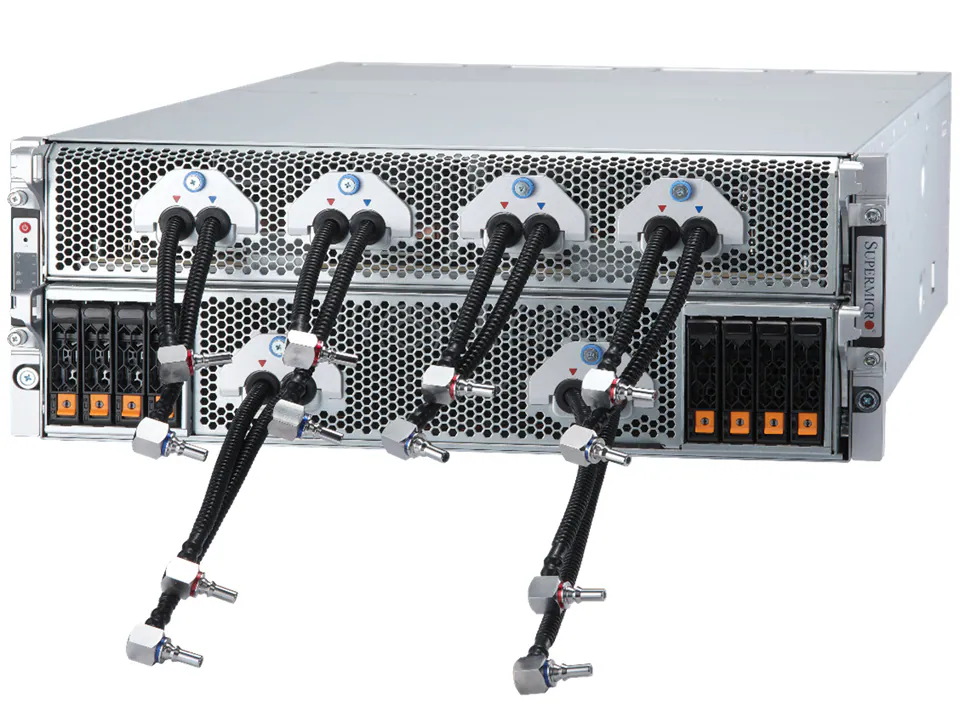

| System Cooling - Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Security - Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
