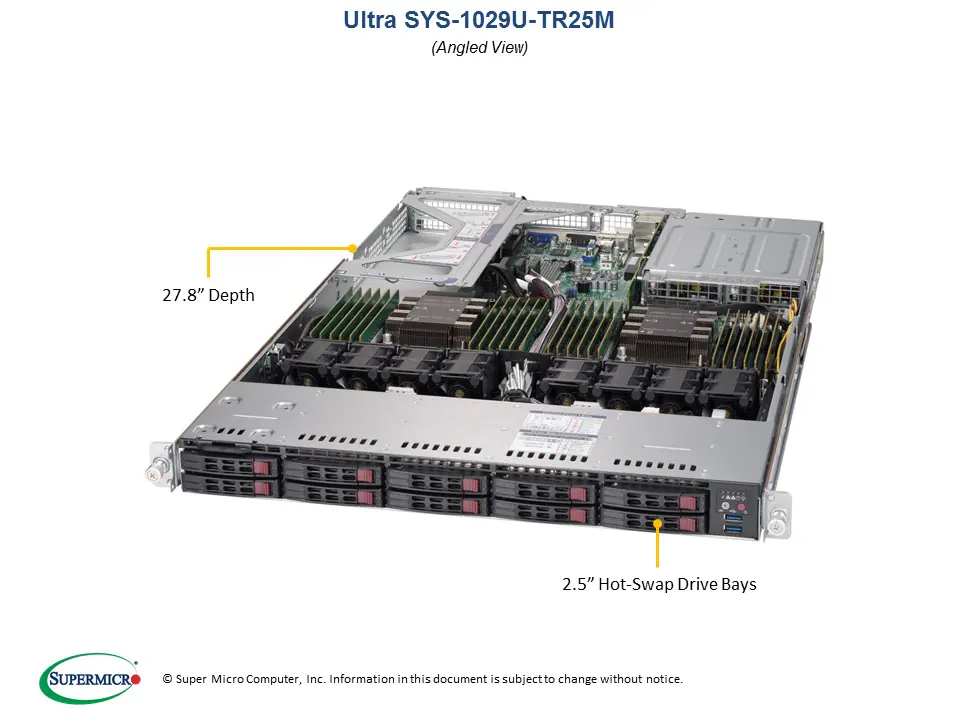

SuperServer 1029U-TR4
Арт. SYS-1029U-TR25M
Продается и поддерживается только в составе готовой системы
Нашли дешевле?
| Motherboard | Super X11DPU; Super X11DPU; Super X11DPU; Super X11DPU |
| Processor - CPU | Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s Support CPU TDP 70-205W |
| Processor - Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information. |
| System Memory - Memory Capacity | 24 DIMM slots Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM Supports Intel® Optane™ DCPMM †† |
| System Memory - Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM 2666 ECC DDR4 NVDIMM |
| On-Board Devices - Chipset | Intel® C621 chipset |
| On-Board Devices - SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| On-Board Devices - IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input Output - SATA | 10 SATA3 (6Gbps) ports |
| Input Output - LAN | 2 25GbE SFP28 ports 1 RJ45 Dedicated IPMI LAN port |
| Input Output - USB | 5 USB 3.0 ports (2 rear, 2 front, 1 Type A) |
| Input Output - Video | 2 VGA ports (1 rear, 1 onboard) |
| PC Health Monitoring - FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| PC Health Monitoring - Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| Chassis - Form Factor | 1U Rackmount |
| Chassis - Model | CSE-119UTS-R751P-T |
| Dimensions and Weight - Height | 1.7" (43mm) |
| Dimensions and Weight - Width | 17.2" (437mm) |
| Dimensions and Weight - Depth | 28.5" (724mm) |
| Dimensions and Weight - Weight | Net Weight: 26 lbs (11.8 kg) Gross Weight: 41 lbs (18.6 kg) |

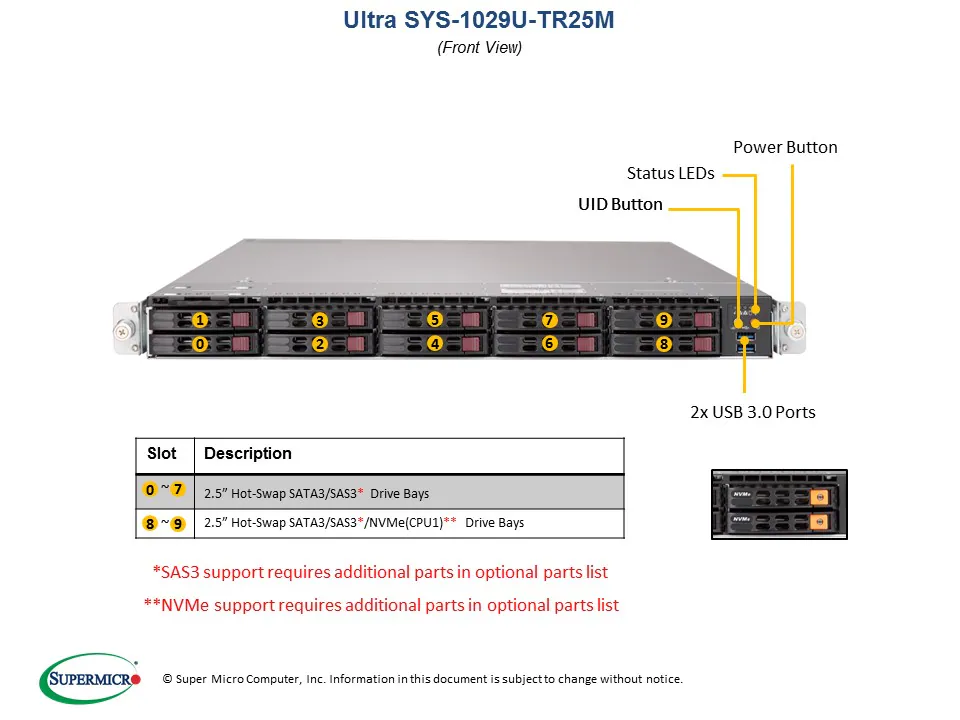

| Front Panel - Buttons | Power On/Off button System Reset button |
| Front Panel - LEDs | Power LED Hard drive activity LED Network activity LEDs System Overheat LED / Fan fail LED / UID LED |

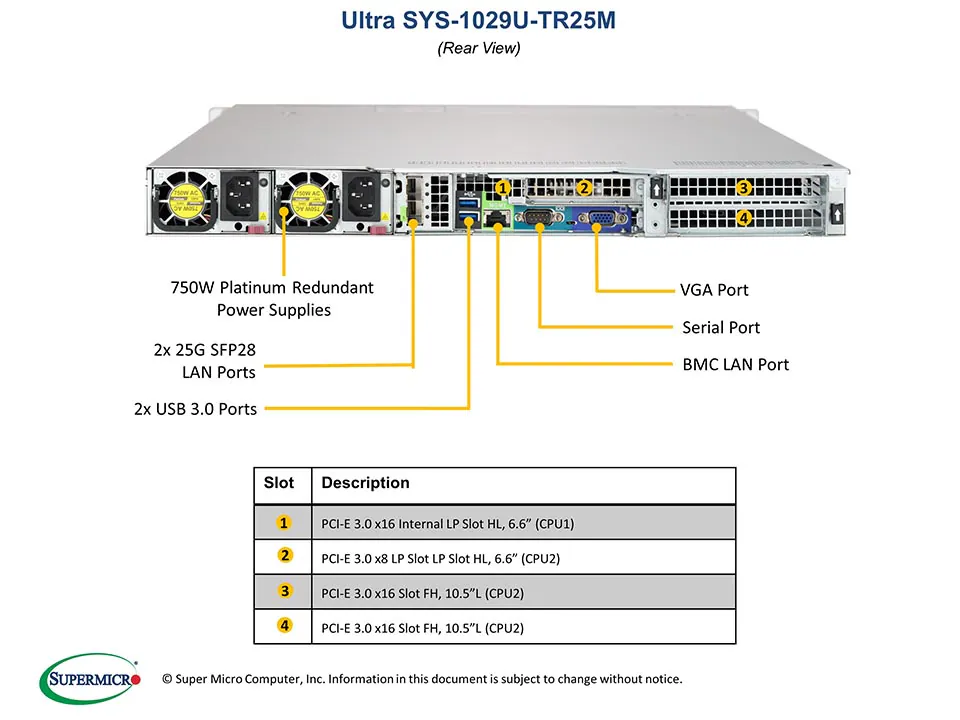

| Expansion Slots - PCI-Express | 2 PCI-E 3.0 x16 (Full-height, 10.5" L) 1 PCI-E 3.0 x8 (Low-profile) 1 PCI-E 3.0 x16 (internal Low-profile) (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
| System Cooling - Fans | 8 heavy duty fans with optimal fan speed control |
| Power Supply | 750W Redundant Power Supplies with PMBus; 750W Redundant Power Supplies with PMBus; 750W Redundant Power Supplies with PMBus; 750W Redundant Power Supplies with PMBus |
| Power Supply - 12V | Max: 62.5A / Min: 0A |
| Power Supply - Certification | Platinum Level [ Test Report ] |
| System BIOS - BIOS Type | AMI 32Mb SPI Flash ROM |
| Parts List - Items Included | Part Number; Description; Motherboard / Chassis; MBD-X11DPU CSE-119UTS-R751P-T; Super X11DPU Motherboard CSE-119UTS-R751P-T Chassis; Add-on Card / Module; AOC-URN4-M2TS-P; 1U Ultra Riser 2-port 25GbE SFP28, based on Mellanox Connect; Backplane; BPN-SAS3-116A-N2; 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices; Cable 1; CBL-PWEX-0650; 8 pin female to 2x RA(Right Angle) big 4 pin female power, 47/62CM, 18AWG,RoHS/REACH; Cable 2; CBL-PWEX-0653; 8 pin female to 4 pin female power, 37cm, 18AWG,RoHS/REACH; Cable 3; CBL-SAST-0655; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG; Cable 4; CBL-SAST-0657; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG; Cable 5; CBL-SAST-1015-1; MINI SAS-2 SATA (RA),6G,INT,52CM,62CM SB,30AWG,RoHS; FAN-0101L4; 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808; Rear Window; MCP-240-81915-0N; Rear window for SC819U, 119U tool-less chassis (m2TS); Air Shroud; MCP-310-81910-0N; Plastic air shroud for SC819U, 119U (X11 24DIMM, left side); Air Shroud; MCP-310-81911-0N; Plastic air shroud for SC819U, 119U (X11 24DIMM, right side); Riser Card; RSC-R1UW-2E16; 1U LHS WIO Riser card with two PCI-E x16 slots; Riser Card; RSC-R1UW-E8R; 1U RHS WIO Riser card with one PCI-E x8 slot; Heatsink / Retention; SNK-P0067PS; 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; * Power Supply; PWS-751P-1R; 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH; Part Number; Description; Motherboard / Chassis; MBD-X11DPU CSE-119UTS-R751P-T; Super X11DPU Motherboard CSE-119UTS-R751P-T Chassis; Add-on Card / Module; AOC-URN4-M2TS-P; 1U Ultra Riser 2-port 25GbE SFP28, based on Mellanox Connect; Backplane; BPN-SAS3-116A-N2; 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices; Cable 1; CBL-PWEX-0650; 8 pin female to 2x RA(Right Angle) big 4 pin female power, 47/62CM, 18AWG,RoHS/REACH; Cable 2; CBL-PWEX-0653; 8 pin female to 4 pin female power, 37cm, 18AWG,RoHS/REACH; Cable 3; CBL-SAST-0655; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG; Cable 4; CBL-SAST-0657; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG; Cable 5; CBL-SAST-1015-1; MINI SAS-2 SATA (RA),6G,INT,52CM,62CM SB,30AWG,RoHS; FAN-0101L4; 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808; Rear Window; MCP-240-81915-0N; Rear window for SC819U, 119U tool-less chassis (m2TS); Air Shroud; MCP-310-81910-0N; Plastic air shroud for SC819U, 119U (X11 24DIMM, left side); Air Shroud; MCP-310-81911-0N; Plastic air shroud for SC819U, 119U (X11 24DIMM, right side); Riser Card; RSC-R1UW-2E16; 1U LHS WIO Riser card with two PCI-E x16 slots; Riser Card; RSC-R1UW-E8R; 1U RHS WIO Riser card with one PCI-E x8 slot; Heatsink / Retention; SNK-P0067PS; 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; * Power Supply; PWS-751P-1R; 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH; Part Number; Description; Motherboard / Chassis; MBD-X11DPU CSE-119UTS-R751P-T; Super X11DPU Motherboard CSE-119UTS-R751P-T Chassis; Add-on Card / Module; AOC-URN4-M2TS-P; 1U Ultra Riser 2-port 25GbE SFP28, based on Mellanox Connect; Backplane; BPN-SAS3-116A-N2; 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices; Cable 1; CBL-PWEX-0650; 8 pin female to 2x RA(Right Angle) big 4 pin female power, 47/62CM, 18AWG,RoHS/REACH; Cable 2; CBL-PWEX-0653; 8 pin female to 4 pin female power, 37cm, 18AWG,RoHS/REACH; Cable 3; CBL-SAST-0655; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG; Cable 4; CBL-SAST-0657; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG; Cable 5; CBL-SAST-1015-1; MINI SAS-2 SATA (RA),6G,INT,52CM,62CM SB,30AWG,RoHS; FAN-0101L4; 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808; Rear Window; MCP-240-81915-0N; Rear window for SC819U, 119U tool-less chassis (m2TS); Air Shroud; MCP-310-81910-0N; Plastic air shroud for SC819U, 119U (X11 24DIMM, left side); Air Shroud; MCP-310-81911-0N; Plastic air shroud for SC819U, 119U (X11 24DIMM, right side); Riser Card; RSC-R1UW-2E16; 1U LHS WIO Riser card with two PCI-E x16 slots; Riser Card; RSC-R1UW-E8R; 1U RHS WIO Riser card with one PCI-E x8 slot; Heatsink / Retention; SNK-P0067PS; 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; * Power Supply; PWS-751P-1R; 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH; Part Number; Description; Motherboard / Chassis; MBD-X11DPU CSE-119UTS-R751P-T; Super X11DPU Motherboard CSE-119UTS-R751P-T Chassis; Add-on Card / Module; AOC-URN4-M2TS-P; 1U Ultra Riser 2-port 25GbE SFP28, based on Mellanox Connect; Backplane; BPN-SAS3-116A-N2; 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices; Cable 1; CBL-PWEX-0650; 8 pin female to 2x RA(Right Angle) big 4 pin female power, 47/62CM, 18AWG,RoHS/REACH; Cable 2; CBL-PWEX-0653; 8 pin female to 4 pin female power, 37cm, 18AWG,RoHS/REACH; Cable 3; CBL-SAST-0655; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG; Cable 4; CBL-SAST-0657; MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG; Cable 5; CBL-SAST-1015-1; MINI SAS-2 SATA (RA),6G,INT,52CM,62CM SB,30AWG,RoHS; FAN-0101L4; 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808; Rear Window; MCP-240-81915-0N; Rear window for SC819U, 119U tool-less chassis (m2TS); Air Shroud; MCP-310-81910-0N; Plastic air shroud for SC819U, 119U (X11 24DIMM, left side); Air Shroud; MCP-310-81911-0N; Plastic air shroud for SC819U, 119U (X11 24DIMM, right side); Riser Card; RSC-R1UW-2E16; 1U LHS WIO Riser card with two PCI-E x16 slots; Riser Card; RSC-R1UW-E8R; 1U RHS WIO Riser card with one PCI-E x8 slot; Heatsink / Retention; SNK-P0067PS; 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism; * Power Supply; PWS-751P-1R; 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH |
| Optional Parts List | Part Number; Description; Add-on card for internal M.2 NVMe; AOC-SLG3-2M2; Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules; Internal Drive Tray for Two 2.5" Drives; MCP-120-82916-0N CBL-PWEX-0650 CBL-0080L CBL-0484L Or CBL-SAST-0654 Or CBL-SAST-0948; 1 1 2 2 1 1; Internal drive plate Supports Two 2.5" Drive, PCI slots Power cable for Two internal 2.5" drives SATA3 S-S Cable miniSAS(iPass) to 4 SATA Cable miniSAS HD to 4 SATA Cable; Cable for 2 NVMe Hybrid Drive Bays; CBL-SAST-0929; OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG; 2.5" NVMe Drive Trays; MCP-220-00167-0B MCP-220-00127-0B; Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design) Black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock); 2 Internal M.2 slots (1 SATA, 1 NVMe); RSC-UMR-8 & CBL-SAST-0538; 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE X8; Storage Control Card and Cable(s); AOC-S3008L-L8e & 2x CBL-SAST-0593 AOC-S3008L-L8i & 2x CBL-SAST-0593 AOC-S3108L-H8iR & 2x CBL-SAST-0593 AOC-S3108L-H8iR-16DD & 2x CBL-SAST-0593; Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD SATA,12G,INT,60CM,60CM SB,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG; Compatible Networking Cables and Transceivers for System default Networking (AOC-URN4-m2TS); Networking Cables and Transceivers Compatibility Matrix; Network Card(s); AOC-SGP-i2/4 AOC-STGN-i1S/i2S AOC-STGF-i2S AOC-STG-i4S AOC-STG-b4S AOC-STG-i2T AOC-STGS-i1/2T AOC-STG-i4T AOC-STG-i2 AOC-S25G-m2S AOC-S40G-i2Q More; - - - - - - - - - - - -; Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350 Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2 Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710 Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550 Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN Standard LP 2-port 40GbE controller, Intel Fortville XL710 AOC Compatibility Matrix; CacheVault(s); BTR-CV3108-1U1 BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05; CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location; 1U Cable Management Arm; MCP-290-00152-0N; 1U Supermicro Cable Management Arm 2nd Gen; TPM security module; AOM-TPM-9670H-S AOM-TPM-9671H-S; TCG 2.0 compliant trusted platform module (TPM), Horizontal FF TCG 1.2 compliant trusted platform module (TPM), Horizontal FF; Intel VROC RAID Key; AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD; Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Add-on card for internal M.2 NVMe; AOC-SLG3-2M2; Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules; Internal Drive Tray for Two 2.5" Drives; MCP-120-82916-0N CBL-PWEX-0650 CBL-0080L CBL-0484L Or CBL-SAST-0654 Or CBL-SAST-0948; 1 1 2 2 1 1; Internal drive plate Supports Two 2.5" Drive, PCI slots Power cable for Two internal 2.5" drives SATA3 S-S Cable miniSAS(iPass) to 4 SATA Cable miniSAS HD to 4 SATA Cable; Cable for 2 NVMe Hybrid Drive Bays; CBL-SAST-0929; OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG; 2.5" NVMe Drive Trays; MCP-220-00167-0B MCP-220-00127-0B; Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design) Black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock); 2 Internal M.2 slots (1 SATA, 1 NVMe); RSC-UMR-8 & CBL-SAST-0538; 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE X8; Storage Control Card and Cable(s); AOC-S3008L-L8e & 2x CBL-SAST-0593 AOC-S3008L-L8i & 2x CBL-SAST-0593 AOC-S3108L-H8iR & 2x CBL-SAST-0593 AOC-S3108L-H8iR-16DD & 2x CBL-SAST-0593; Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD SATA,12G,INT,60CM,60CM SB,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG; Compatible Networking Cables and Transceivers for System default Networking (AOC-URN4-m2TS); Networking Cables and Transceivers Compatibility Matrix; Network Card(s); AOC-SGP-i2/4 AOC-STGN-i1S/i2S AOC-STGF-i2S AOC-STG-i4S AOC-STG-b4S AOC-STG-i2T AOC-STGS-i1/2T AOC-STG-i4T AOC-STG-i2 AOC-S25G-m2S AOC-S40G-i2Q More; - - - - - - - - - - - -; Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350 Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2 Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710 Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550 Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN Standard LP 2-port 40GbE controller, Intel Fortville XL710 AOC Compatibility Matrix; CacheVault(s); BTR-CV3108-1U1 BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05; CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location; 1U Cable Management Arm; MCP-290-00152-0N; 1U Supermicro Cable Management Arm 2nd Gen; TPM security module; AOM-TPM-9670H-S AOM-TPM-9671H-S; TCG 2.0 compliant trusted platform module (TPM), Horizontal FF TCG 1.2 compliant trusted platform module (TPM), Horizontal FF; Intel VROC RAID Key; AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD; Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Add-on card for internal M.2 NVMe; AOC-SLG3-2M2; Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules; Internal Drive Tray for Two 2.5" Drives; MCP-120-82916-0N CBL-PWEX-0650 CBL-0080L CBL-0484L Or CBL-SAST-0654 Or CBL-SAST-0948; 1 1 2 2 1 1; Internal drive plate Supports Two 2.5" Drive, PCI slots Power cable for Two internal 2.5" drives SATA3 S-S Cable miniSAS(iPass) to 4 SATA Cable miniSAS HD to 4 SATA Cable; Cable for 2 NVMe Hybrid Drive Bays; CBL-SAST-0929; OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG; 2.5" NVMe Drive Trays; MCP-220-00167-0B MCP-220-00127-0B; Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design) Black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock); 2 Internal M.2 slots (1 SATA, 1 NVMe); RSC-UMR-8 & CBL-SAST-0538; 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE X8; Storage Control Card and Cable(s); AOC-S3008L-L8e & 2x CBL-SAST-0593 AOC-S3008L-L8i & 2x CBL-SAST-0593 AOC-S3108L-H8iR & 2x CBL-SAST-0593 AOC-S3108L-H8iR-16DD & 2x CBL-SAST-0593; Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD SATA,12G,INT,60CM,60CM SB,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG; Compatible Networking Cables and Transceivers for System default Networking (AOC-URN4-m2TS); Networking Cables and Transceivers Compatibility Matrix; Network Card(s); AOC-SGP-i2/4 AOC-STGN-i1S/i2S AOC-STGF-i2S AOC-STG-i4S AOC-STG-b4S AOC-STG-i2T AOC-STGS-i1/2T AOC-STG-i4T AOC-STG-i2 AOC-S25G-m2S AOC-S40G-i2Q More; - - - - - - - - - - - -; Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350 Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2 Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710 Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550 Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN Standard LP 2-port 40GbE controller, Intel Fortville XL710 AOC Compatibility Matrix; CacheVault(s); BTR-CV3108-1U1 BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05; CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location; 1U Cable Management Arm; MCP-290-00152-0N; 1U Supermicro Cable Management Arm 2nd Gen; TPM security module; AOM-TPM-9670H-S AOM-TPM-9671H-S; TCG 2.0 compliant trusted platform module (TPM), Horizontal FF TCG 1.2 compliant trusted platform module (TPM), Horizontal FF; Intel VROC RAID Key; AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD; Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license); Part Number; Description; Add-on card for internal M.2 NVMe; AOC-SLG3-2M2; Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules; Internal Drive Tray for Two 2.5" Drives; MCP-120-82916-0N CBL-PWEX-0650 CBL-0080L CBL-0484L Or CBL-SAST-0654 Or CBL-SAST-0948; 1 1 2 2 1 1; Internal drive plate Supports Two 2.5" Drive, PCI slots Power cable for Two internal 2.5" drives SATA3 S-S Cable miniSAS(iPass) to 4 SATA Cable miniSAS HD to 4 SATA Cable; Cable for 2 NVMe Hybrid Drive Bays; CBL-SAST-0929; OCuLink source to MiniSAS HD target V.91,INT,PCIe NVMe SSD, 57CM,34AWG; 2.5" NVMe Drive Trays; MCP-220-00167-0B MCP-220-00127-0B; Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design) Black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock); 2 Internal M.2 slots (1 SATA, 1 NVMe); RSC-UMR-8 & CBL-SAST-0538; 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE X8; Storage Control Card and Cable(s); AOC-S3008L-L8e & 2x CBL-SAST-0593 AOC-S3008L-L8i & 2x CBL-SAST-0593 AOC-S3108L-H8iR & 2x CBL-SAST-0593 AOC-S3108L-H8iR-16DD & 2x CBL-SAST-0593; Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD SATA,12G,INT,60CM,60CM SB,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG; Compatible Networking Cables and Transceivers for System default Networking (AOC-URN4-m2TS); Networking Cables and Transceivers Compatibility Matrix; Network Card(s); AOC-SGP-i2/4 AOC-STGN-i1S/i2S AOC-STGF-i2S AOC-STG-i4S AOC-STG-b4S AOC-STG-i2T AOC-STGS-i1/2T AOC-STG-i4T AOC-STG-i2 AOC-S25G-m2S AOC-S40G-i2Q More; - - - - - - - - - - - -; Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350 Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2 Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710 Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550 Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710 Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN Standard LP 2-port 40GbE controller, Intel Fortville XL710 AOC Compatibility Matrix; CacheVault(s); BTR-CV3108-1U1 BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05; CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location; 1U Cable Management Arm; MCP-290-00152-0N; 1U Supermicro Cable Management Arm 2nd Gen; TPM security module; AOM-TPM-9670H-S AOM-TPM-9671H-S; TCG 2.0 compliant trusted platform module (TPM), Horizontal FF TCG 1.2 compliant trusted platform module (TPM), Horizontal FF; Intel VROC RAID Key; AOC-VROCINTMOD AOC-VROCSTNMOD AOC-VROCPREMOD; Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) Intel VROC Standard, RAID 0, 1, 10 Intel VROC Premium, RAID 0, 1, 5, 10; Global Services & Support; OS4HR3/2/1 OSNBD3/2/1; 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service; Software; SFT-OOB-LIC •; OOB Management Package (per node license); Software; SFT-DCMS-Single; DataCenter Management Package (per node license) |
| Input Output - SAS | 8 SAS3 ports support via optional Add-on Card |
| Management - Software | Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SSM , SPM , SUM SuperDoctor® 5 |
| Management - Power Configurations | ACPI Power Management |
| On-Board Devices - Graphics | ASPEED AST2500 BMC |
| PC Health Monitoring - CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| Processor - Cores | Up to 28 Cores |
| System Memory - Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. |
| Operating Environment - RoHS | RoHS Compliant |
| Operating Environment - Environmental Spec | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| On-Board Devices - Network Connectivity | 2 25GbE SFP28 ports via AOC-URN4-M2TS-O (Mellanox ConnectX-4 Lx EN) |
| Input Output - Serial Port | 1 Serial header |
| Dimensions and Weight - Available Color | Black |
| Drive Bays Storage - Hot-swap | 10 Hot-swap 2.5" drive bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.) |
| Drive Bays Storage - M2 | 1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list) 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2 |
| System Cooling - Air Shroud | 1 Air Shroud |
| Power Supply - Total Output Power | 750W |
| Power Supply - DimensionW x H x L | 73.5 x 40 x 203 mm |
| Power Supply - Input | 100-127Vac / 9.5A Max / 50-60Hz 200-240Vac / 4.5A Max / 50-60Hz |
| Power Supply - Output Type | 25 Pairs Gold Finger Connector |
| Power Supply - 12V SB | Max: 2.1A / Min: 0A |
| Product SKUs - SYS-1029U-TR25M | SuperServer 1029U-TR25M ( Black ) |
